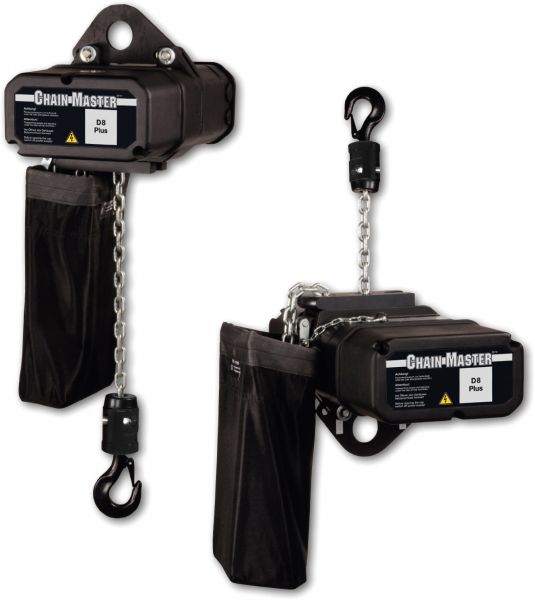

ChainMaster D8Plus, 1000kg, 4m/min, Hauteur de levage: 24m, 2-brins
Malheureusement, cette description de produit n’est pas encore traduite.
Increased safety, flexibility and efficient rigging for complex loads are the main features of D8 Plus chain hoists. ChainMaster first presented the concept to the Berufsgenossenschaft (institution for statutory accident insurance and prevention in the event industry) many years ago, and in 2004 a working group run by VPLT, the association of event technology companies, published the industry code of practice SR2.0 based on our innovation. The incorporation of a second brake and BGV C1-standard safety features into BGV D8 chain hoists resulted in a product that does without load additional securing. Sales show that the market clearly approves the concept, not just in Germany but all over the world.
Features
- Capacity 125 - 2500 kg
- Climbing- or
- Standard Suspension
- Direct- or Contactor Control
- Light and compact Housing
- Precise Chain Guide
- 5-Pocket Chain Wheel
- Textile Chain Bag
- 2 DC Brakes
- Patented Friction Clutch for Overload Protection
Specifications | |
Payload: | 1000 kg |
Speed: | 4m/min |
Direct control: | 400V, 3ph, 50Hz |
Power supply: | CEE 16A 4pol. plug |
Chain length: | 49 m |
Lifting height: | 24 m |
Chains: | 7x22 mm |
Security factor Chain : | 10:1 |
Load Strap: | 2 |
Load hook: | 2-strand / rotatable |
Suspension: | One-hole suspension eyelet |
Chain storage: | 7/50 + Safety kit |
Installation: | climblift |
Number of brakes: | 2 |
Plastic carrying handles: | mounted |
Motor Power: | 2,2 kW |
Weight with Chain : | 100 kg |
Housing protection class: | IP 54 |
Engine group: | 1 Bm |
Color: | black, RAL 9005 |
