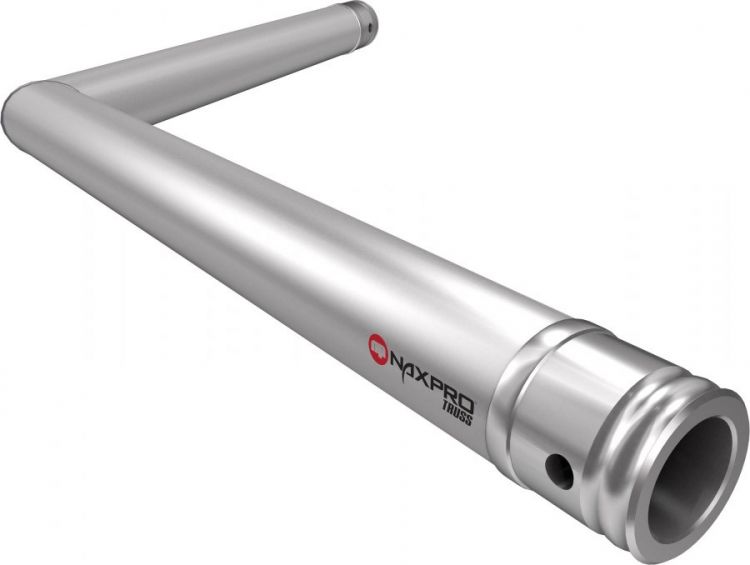

Naxpro-Truss HD 31 C22 120° 2 Chemin Angle

The HD 31 truss system by Naxpro-Truss in 1-point design, convinces with its strength, lightness, small size and flexibility. HD 31 trusses can be combined with all components of the Naxpro Truss systems FD 31 - HD 34 and FD 42 - HD 44, taking into account the respective load table. Excellent suitable for the decorative construction of display fixtures, geometric bodies such as cubes and cuboids, advertising frames and rigging systems. There are no limits to the variety of applications due to the high flexibility system.

The system is by means of conical connection connected force fit. The connectors are included. To connect the trusses, you only need a lightweight Riggatec aluminum hammer as a tool. Special constructions and powder coatings can be realized in a short time.

Technical data:

• Outer diameter tubing: 50 x 3 mm
• Leg length: 50 cm

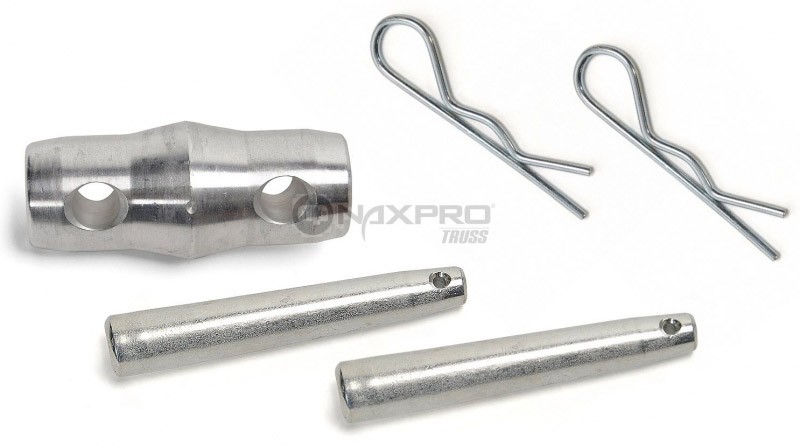

• Including cone connectors with pin and r-spring (1 x cone connector, 2x bolt, 2x r-clip)
• Alloy: EN AW 6082 T6
• Weight: 1,60 kg
• Dimensions: 50 x 50 x 5,0 cm (LxBxH)
• Angle: 120°
