AKG C 417 PP

A hidden secret
for theaters, broadcast and conference applications

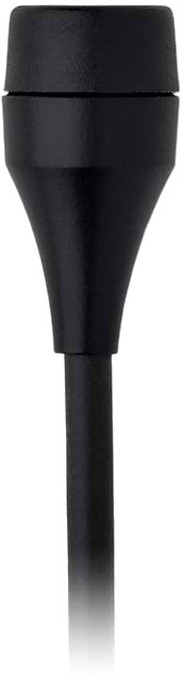

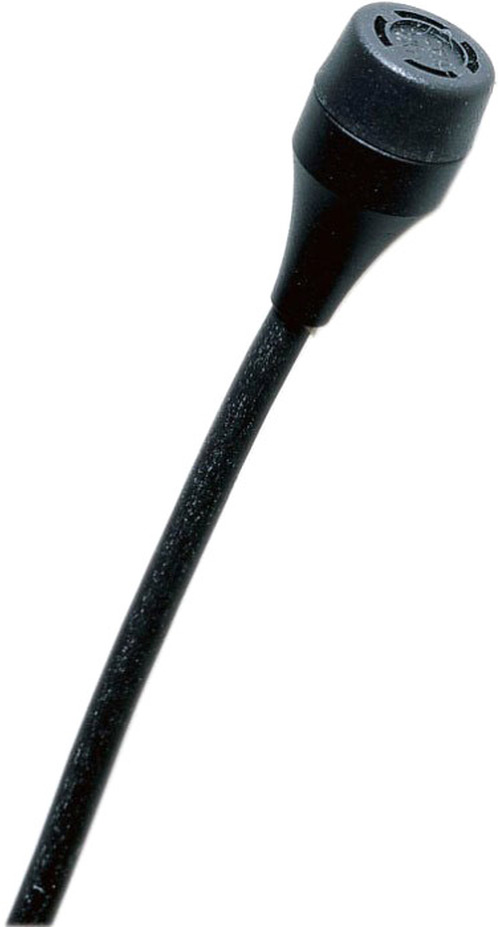

The C417 is a professional lavalier microphone with omnidirectional polar pattern.
Its broadband, flat audio reproduction is ideal for all types of broadcast and theatrical applications. The sound is extremely open and natural, making it ideal for wireless or hardwire multi-mic situations. Thanks to its small housing, it can be inconspicuously and securely attached to jackets and costumes. An attachment clip, tie pin and windscreen are supplied with each C417.

The C417 is available in two versions. The C417 PP features a standard XLR connector while the C417 L provides a professional three-pin mini XLR connector that fits the body pack transmitters of all AKG wireless microphone systems.

Omnidirectional polar pattern
for unchanging sound quality in all directions

Extremely lightweight and inconspicuous
for excellent comfort and perfect fit

Professional three-pin, mini XLR connector
fits all AKG wireless pocket transmitters

Balanced sound characteristics
for natural reproduction of instruments


Technical Specification

General
Audio Frequency bandwidth 20 to 20000 Hz
Sensitivity 7 mV/Pa
Equivalent Noise Level 34 dB-A
Signal to Noise 60 dB-A
Electrical Impedance 200 Ohms
Recommended Load Impedance 1000 Ohms

Polar Patterns
Powering Interface
Voltage 2 to 12 V
Current 2 mA

Audio Output
Type Mini XLR
Gender Female
Contacts 3-pin

Design
Finish matte black

Dimensions / Weight
Height 15 mm
Diameter 7.5 - 7.5 mm
Net Weight 68 g
