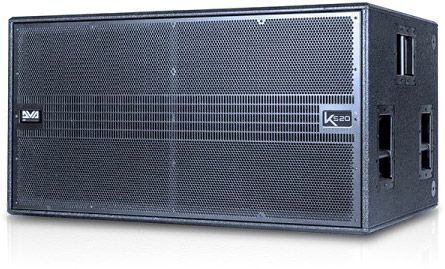

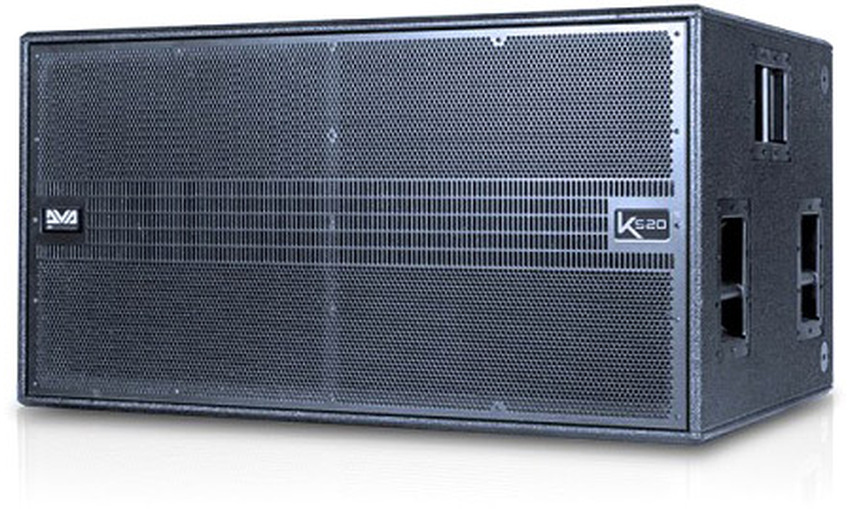

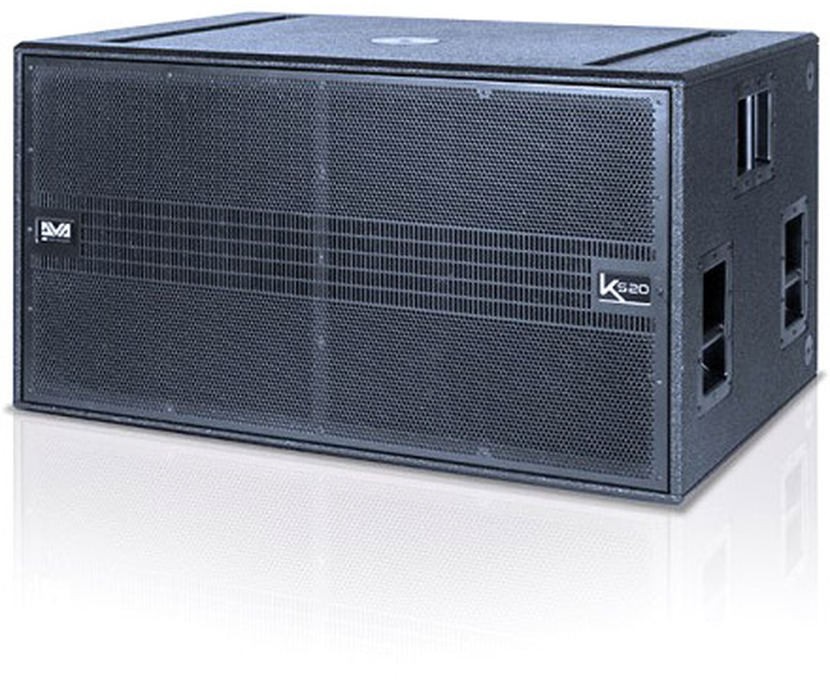

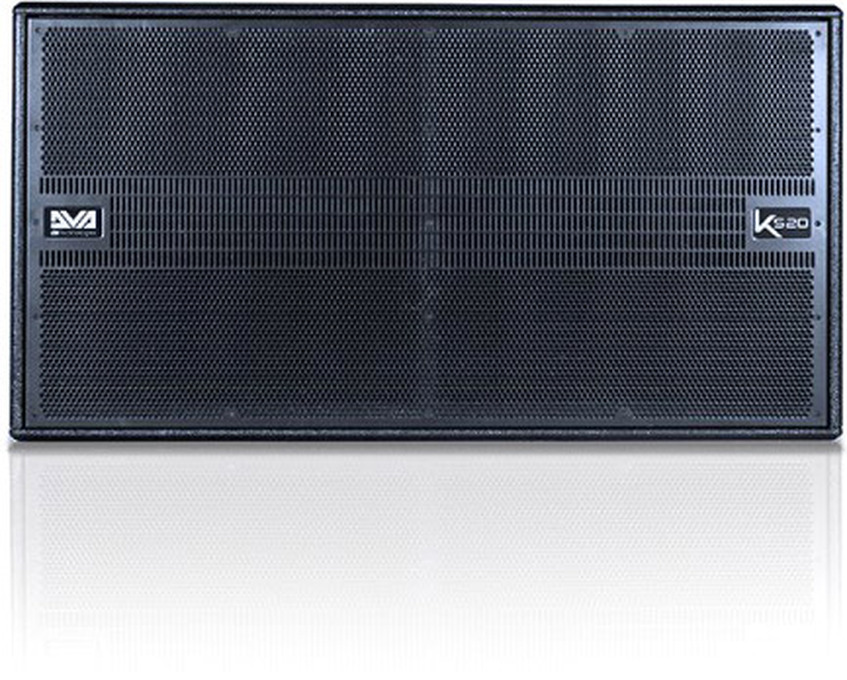

dB Technologies DVA KS20

Technical Data

Frequency Response [- 10 dB]:

41 Hz - 120 Hz

Max SPL:

138 dB

Directivity:

Omnidirectional

LF:

2x18 "

Voice Coil LF:

4 "

Amp Technology:

Digipro® G3

Amp Class:

Class D

RMS Power:

1800 W

Peak Power:

3600 W

Cooling:

Convection

Power Supply :

1800 W SMPS with auto range PSU

Controller:

DSP 56 Bit

AD/DA Converter :

24 Bit /48 Hz

System Presets:

X-Over, Delay

Limiter:

Dual Active Multiband RMS, Peak, Thermal

Crossover Frequency LF-HF:

90, 120 Hz (selectable)

Slope LF-HF:

24 dB/Octave

Input Selection :

2x XLR Balanced

Output Selection :

2x XLR Balanced

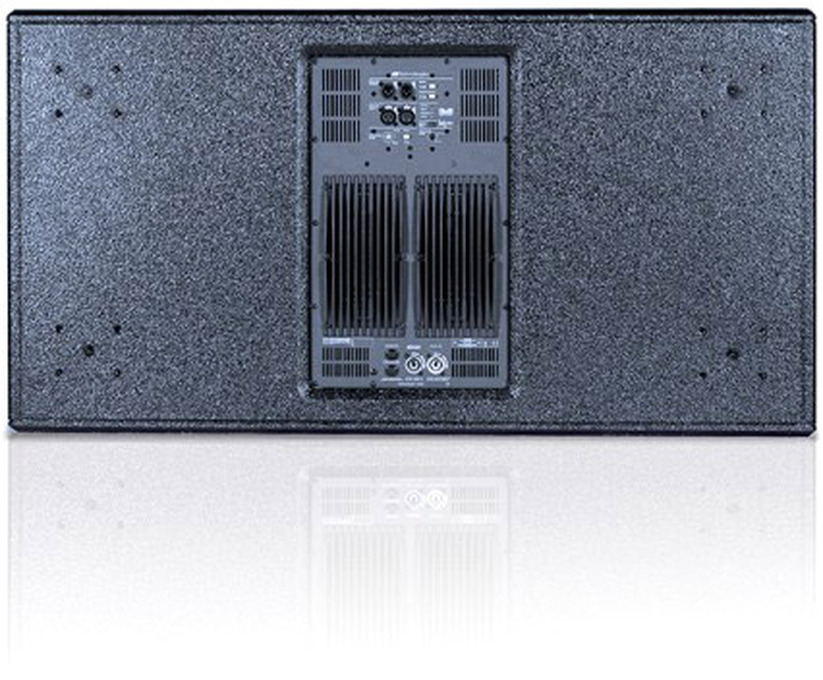

Power Socket :

1x Powercon in + 1x Powercon Out

Controls :

1 x Input Sensitivity Rotary Switch 1 x Setup Rotary Encoder (delay up to 4.5 ms) 1 x Phase Inversion Switch 1 x X-over Frequency Switch (90 Hz, 120 Hz) 1 x Output mode Switch (link- X-Over)

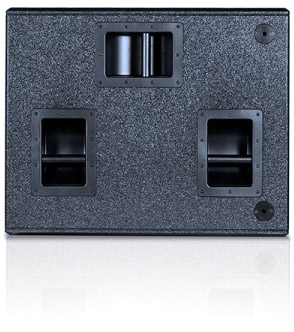

Handles:

3x Per Side

Rigging Points:

2xPick Points on top to fix DRK10/20 rigging frames

Pole Mount :

1 xM20 on top

Width:

1100 mm

Height:

580 mm

Depth:

720 mm

Weight:

84 kg
