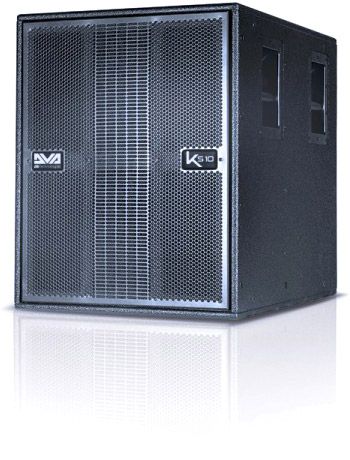

dB Technologies DVA KS10
Articles encombrantsenviron 2 semaines
Articles encombrants
| Quantité | Prix unitaire | Vous économisez |
|---|---|---|
| À partir de 2 | 2 400,00 € * | 0.37 % |
| À partir de 4 | 2 390,00 € * | 0.79 % |
Malheureusement, cette description de produit n’est pas encore traduite.
Use it in a compact PA system, on a pole, groundstacked or flown in a DVA K5 array, this active sub is the most versatile low-end bin of the DVA series.
The semi horn loaded subwoofer DVA KS10 is equipped with a single 18" woofer driven by a Class-D Digipro@G3 power amp delivering 2000W Peak and reaching 134 dB SPL. Maximun versatility is granted by a stereo input/output balanced pre-amp. Crucially, KS10 can be used as a compact PA system (together with DVA K5 on a speaker pole) or groundstacked, but can also be flown thanks to the optionally available flyware. A dedicated encoder aloows to apply up to 4.5 ms of delay, with 0.5 ms speps. A switch allows to invert the phase by 180° as well as changing the LPF from 90 Hz to 120 Hz.
Technical Data | |
Frequency Response [- 10 dB]: | 41 Hz - 120 Hz |
Max SPL: | 134 dB |
Directivity: | Omnidirectional |
LF: | 18 " |
Voice Coil LF: | 4 " |
Amp Technology: | Digipro® G3 |
Amp Class: | Class D |
RMS Power : | 900 W |
Peak Power : | 1800 W |
Cooling: | Convection |
Power Supply : | 900 W SMPS with auto range PSU |
Controller: | DSP 56 Bit |
AD/DA COnverter : | 24 Bit / 48 KHz |
Limiter: | Dual Active Multiband RMS, Peak, Thermal |
Crossover Frequency LF-HF: | 90, 120 Hz (selectable) |
Slope LF-HF: | 24 dB/Octave |
Input Section : | 2X XLR Balanced |
Output Section : | 2x XLR Balanced |
Power Sockets: | 1 x Powercon In + 1 x Powercon Out |
Controls: | 1 x Input Sensitivity Rotary Switch 1 x DSP Setup Rotary Encoder (up to 4.5 ms) 1 x Phase Inversion Switch (0°-180°) 1 x X-Over Frequency Switch (90 Hz, 120Hz) 1 x Output Mode Switch (Link - X-Over) |
Housing: | Multiplex plywood |
Handles: | 2x Side |
Pole Mount: | 1x M20 on top |
Rigging Points: | 2xPick Points on top to fix DRK 10/20 rigging frames DRK10/20 flybar |
Width: | 515 mm |
Height: | 640 mm |
Depth: | 720 mm |
Weight: | 48kg |
