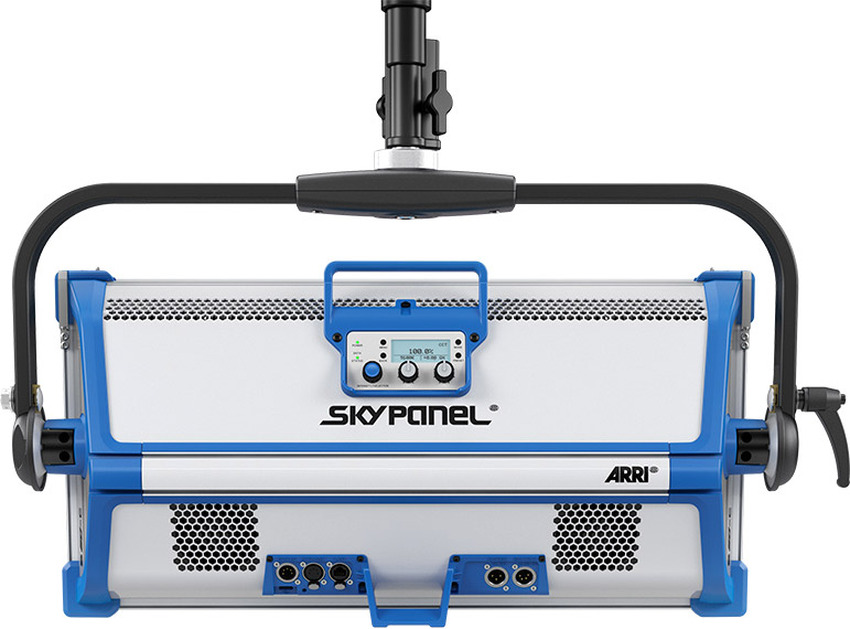

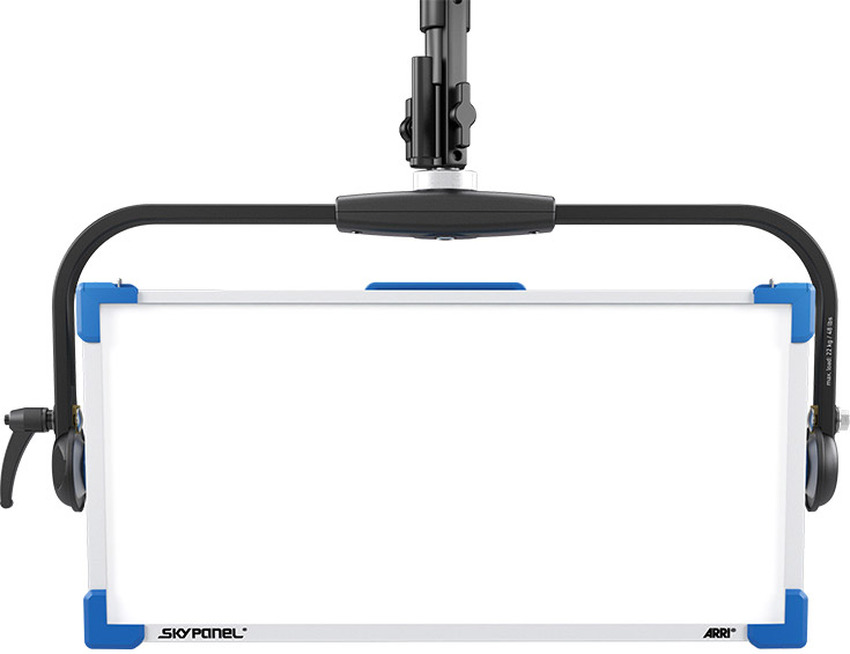

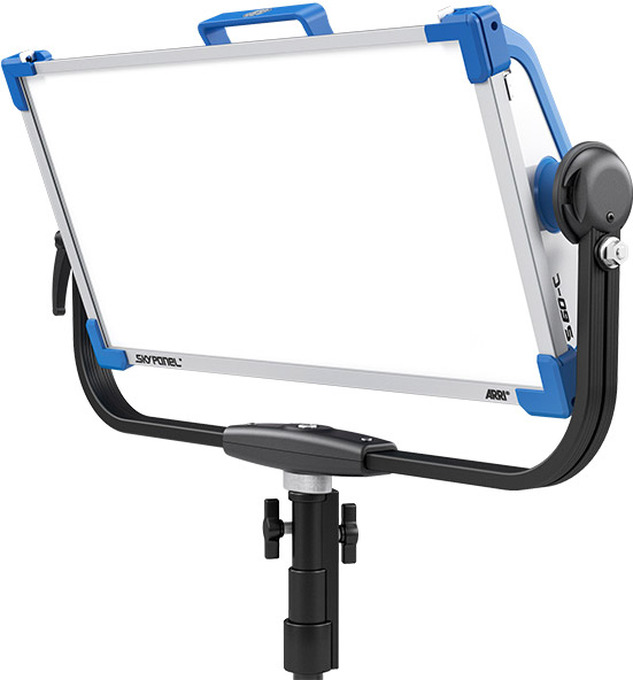

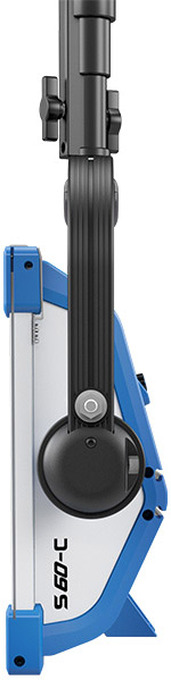

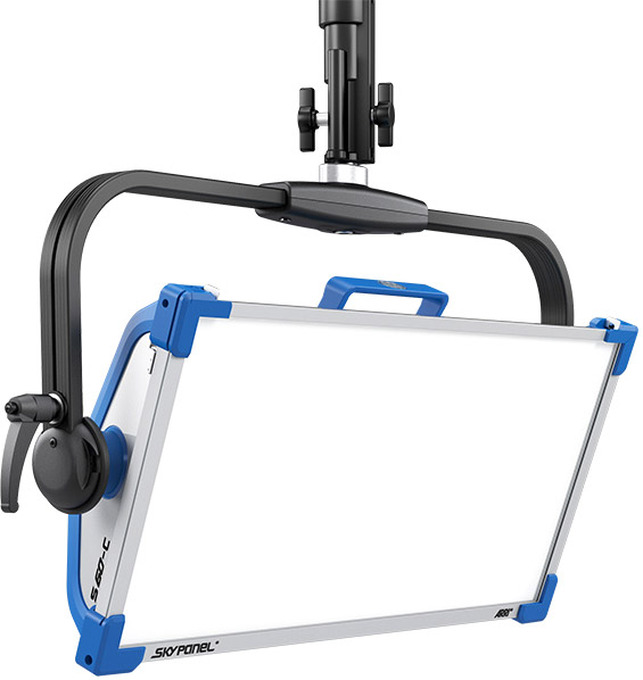

ARRI SkyPanel S120-C LED MAN azul-plata
environ 2 semaines
Malheureusement, cette description de produit n’est pas encore traduite.
SkyPanel is available in several sizes: the S30, S60, S120, and S360. The S60 is a mid-range model, featuring a light aperture of 645 x 300 mm and accommodating the vast majority of applications. The S120 is twice as long as the S60, but weighs nearly the same. Its larger light aperture makes a great soft light even better. The S30 is a smaller, more portable version; half the length of the S60, it is perfect for on-the-go mobile applications. The S360 is the largest and brightest SkyPanel with four times the output of the S60 and almost six times the aperture size. The S360 is perfect for lighting large areas with tuneable, soft light. S30 and S60 models are available in fully color tuneable and remote phosphor versions.
Unlike other tuneable fixtures, SkyPanel makes no sacrifice when it comes to light output. SkyPanel puts out a tremendous amount of light, in a soft and uniform beam field. Brighter than a 2 kW tungsten soft light or a 6 kW tungsten space light, the SkyPanel S60 has more than enough light for most applications. At the same time, the lamphead is able to perform beautifully at lower light levels. This range of illumination and color gives users an unprecedented amount of control.
Features
- Fully Tuneable from 2,800 K to 10,000 K
- Vibrant Color Selection (RGB+W Color Gamut)
- High Color Rendering
- Low Power Consumption (420 W Nominal)
- Tremendous Output - Brighter than 2 kW Tungsten Soft Light
- Fully Dimmable from 0 to 100 %
- Lightweight and Compact
- Beautiful Soft Beam of Light
- Interchangeable Diffusion Panels
- Wide Range of Accessories Available
- Thin Profile
- On-Board Battery Connection (23 - 36V DC)
- Onboard Simple Control Panel
- Onboard DMX In and Out
- RDM Implementation
- USB-A Connection for Firmware Updates
- EtherCon port for network connectivity
- Available in Blue/Silver and Black
- Fan Mode Selection
- External Lightweight PSU
- powerCON TRUE1 Power Connector
Technical Data | |
| Lamphead S60-C | |
Optical System: | Soft Diffusion Panel |
Light Aperture: | 645 x 300 mm / 25.4 x 11.8" |
Beam Angle: | 115º (Half Peak Angle) |
| Weight | |
Manual Version: | approx. 13 kg / 29 lbs |
Pole Op Version: | approx. 14 kg / 31 lbs |
| Packed Weight | |
Manual Version: | approx. 21 kg / 46 lbs |
Pole Op Version: | approx. 22 kg / 49 lbs |
Size w/ spigot (H x W x L): | 566 x 133 x 825 mm / 22.3 x 5.2 x 32.5" |
Size w/o spigot (H x W x L): | 433 x 133 x 825 mm / 17 x 5.2 x 32.5" |
Packed Size (H x W x L): | 460 x 300 x 856 mm / 18 x 11.8 x 33.7" |
Handling: | Aluminium Yoke, High Strength Tilt Lock |
| Pole Operation Option (Pan & Tilt) | |
Mounting: | 28 mm Spigot (Junior Pin) |
Tilt Angle: | +/- 90º |
Lamphead Voltage Input: | 48 V DC |
Power Consumption: | 420 W Nominal, 450 W Maximum |
Lamphead Power Connection: | Male 3-Pin XLR - 15 Amp (Pin 1 |
Battery Connector: | Male 4-Pin XLR - 10 Amp (Pin 1 |
Battery DC Voltage Range: | 23 to 36 V DC |
Battery Mode Light Output: | 50 % of total output |
White Light: | 2,800 K to 10,000 K continuously variable correlated color temperature |
Colored Light: | Full RBG+W Color Gamut with Hue and Saturation Control |
Color Temperature Tolerance: | +/-100 K (nominal), +/-1/8 Green-Magenta (nominal) |
Color Rendition: | CRI Average > 95 |
| TLCI Average > 90 | |
Green-Magenta Adjustment: | Continuously adjustable (Full Minusgreen to Full Plusgreen) |
Dimming: | 0 to 100 % continuous |
Control: | On-Board Controller, 5-Pin DMX In and Through, EtherCon LAN network connectivity, USB-A, Art-Net |
Remote Device Management (RDM*): | DMX Setup, Hour Counter and Standard RDM Commands |
Software Interface: | Ethernet |
Housing Color: | Blue/Silver, Black |
Ambient Temperature Operation: | -20 to +45ºC / -4 to +113ºF |
Protection Class / IP Rating: | III / IP20 |
Estimated LED Lifetime (L70): | 50,000 hours |
| Estimated Color Shift Over Liftetime +/- 5 % | |
Certifications: | CE, CB, ENEC, cNRTLus, FCC, PSE |
| Power Supply Unit S60 PSU | |
Power Supply Input Range: | 110 to 240 V ~, 50/60 Hz |
Power Supply Output Range: | 48 V DC |
Power Input Connection: | powerCON TRUE1 (Bare Ends / Schuko / Edison cables available) |
Power Output Connection: | Female 3-Pin XLR - 10 Amp (Pin 1 |
Weight: | 3.5 kg / 7.7 lbs |
Dimension: | 383 x 191 x 91 mm / 15 x 7.5 x 3.6" |
Control: | On-Board On/Off Switch |
Mounting: | SkyPanel PSU Super Clamp Adapter / Rail Mount Adapter |
Certifications: | CE, CB, ENEC, cNRTLus, PSE |
