Travesaño para mástil de radio 5G de 20 m, sistema ST54

Radio masts made of modular lattice girders can be created quickly and easily on the most different terrain. With the Naxpro-Truss truss systems we always offer a suitable product for different heights and requirements. Whether 5G standard or other frequencies, through standard recordings or custom parts, e.g. easily to install 5G antennas to our mast systems.

Let's drive the 5G network expansion together.

This lattice girder for a 5G radio mast, 20 m high, consists of the following individual system components:

• 2 pcs.. Naxpro-Truss ST 54 Straight 500 cm red powder-coated
• 2 pcs. Naxpro-Truss ST 54 Straight 500 cm white powder-coated
• 2 pcs. Naxpro-Truss - FD-HD 34/44 - base plate 520 x 520 x 20 mm (also be used as head plate)
• 1 pcs. static calculation (second verification)

--- Without recording for antennas and without antennas---

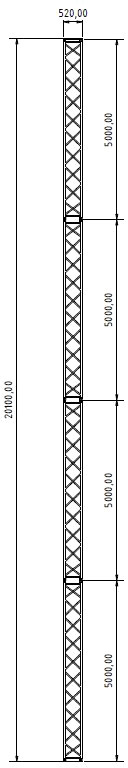

Technical Data lattice girder for 5G radio mast, 20 m high:

• outside width: ca. 52 cm
• exterior hight: ca. 20 m
• Truss system: Naxpro Truss ST54
• Foundation: to be determined depending on the towing capacity and component size (not included in the set).
• Total weight: approx. 330 kg
• Greater heights can be achieved by means of mast bracing.
