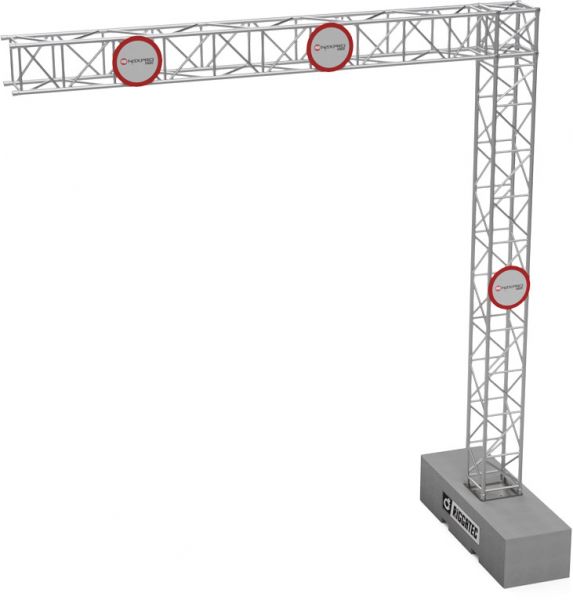

Sistema móvil para señales de tráfico con Naxpro Truss ST54 - 5,5m x 5,5m (An.xAl.)

Truss constructions for mobile variable traffic signs systems, gantries as well as construction site signs and warning signs made of Naxpro Truss truss systems offer great flexibility and speed in construction. Complex and safe grid contructions in modular design can be created in a very short time. This Set is only a small example of the possibilities that can be realized with our truss systems.

We will be happy to support you in the planning. Call us on: +49 (0) 2871 / 234779-0 or write an email to: info@LTT-Group.de

This set consists of the following individual system components:

• 2 pcs. Naxpro-Truss ST 54 Straight 500 cm
• 1 pcs. Naxpro-Truss ST 54 Boxcorner
• 8 pcs. Naxpro-Truss ST 54 sleeve 85 mm for Boxcorner M16
• 1 pcs. Naxpro-Truss FD-HD 34/44 - Base Plate 520 x 520 x 20 mm
• 4 pcs. Naxpro-Truss ST54 half-cone M16+30mm Space and 60mm Ring w/o bolt and clip
• 1 pcs. static calculation (second verification)

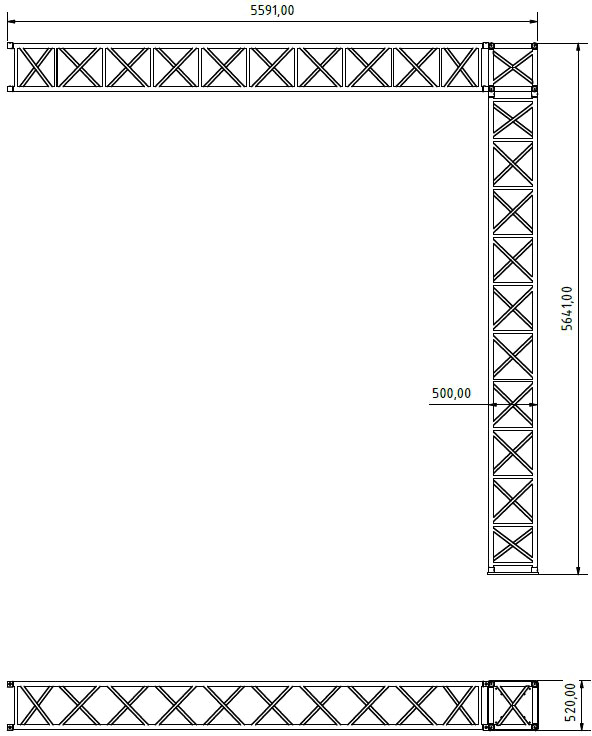

Technical Data cantilever traffic sign system ST54 - 5.5 m wide - 5.5 m high:

• outside width: 5.50 m
• Inside width: 5.00 m
• exterior hight: 5.50 m
• interior height: 5.00 m
• Truss system: Naxpro Truss FD34
• Ballast: at least 2 tons, depending on the towing capacitiy and sign dimensions (not included in the set)
• Total weight: approx. 200 kg
