AKG C519 M

Horn section Liberation
for brass and woodwind instruments on stage and in studio

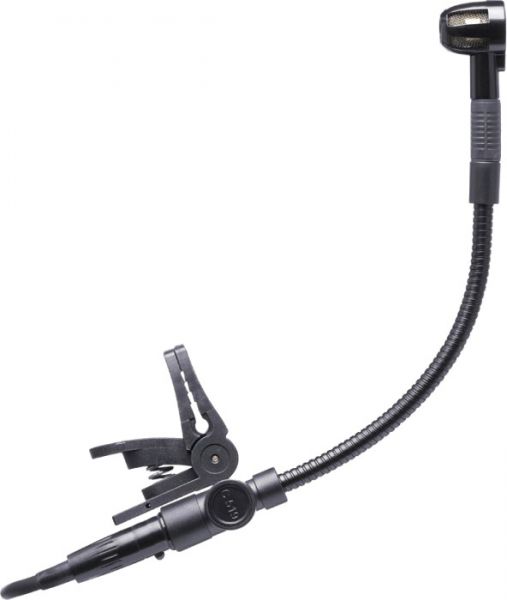

The C519 professional miniature condenser microphone clips gently onto the bell of a trumpet, saxophone, trombone, tuba, didgeridoo or any other wind instrument. Its tight cardioid polar pattern makes the C519 an ideal tool for use near monitor wedges, and its flat frequency response delivers a natural, powerful and clear sound.

The MPAV from C519 M features an integrated, switchable bass cut for adjusting the microphone?s frequency response. The C519 ML package includes a mini-XLR cable and the unique A400 adapter plate for easy mounting onto wireless body-pack transmitters PT40/45/450/470.

Cardioid polar pattern
allows operation close to stage monitors

Integrated transducer shock mount
for efficient rejection of mechanical noise

Rubberized mounting clip
to firm, gentle fit on a wide variety of instruments

Rugged highly stable gooseneck
for precise placement of the microphone

Detachable microphone cable
easy to install and service

Technical Specification

General
Audio Frequency bandwidth 60 to 20000 Hz
Sensitivity 5 mV/Pa
Equivalent Noise Level 31 dB-A
Signal to Noise 63 dB-A
Electrical Impedance 200 Ohms
Recommended Load Impedance

Powering Interface
Voltage 9 to 52 V
Current 2 mA

Audio Output
Type Mini XLR
Gender Female
Contacts 3-pin

Design
Body metal
Finish matte black

Dimensions / Weight
Width 47 mm
Height 213 mm
Net Weight 195 g
