RTI Pangolin FB-4 Quickshow 'Standard'

The RTI Pangolin FB-4 Quickshow 'Standard' is a network interface, which runs with Pangolin Quickshow or Pangolin BEYOND.
Pangolin Quickshow is included. There is no need any more to connect a computer to the show laser through an ILDA interface.
Depending on your needs different versions are available: for DMX and/or ILDA control, for network control and with SD card memory. RTI Pangolin FB-4 Quickshow 'Standard' can be used with every show laser system, providing one of the features mentioned above, independent of the brand.

Features of RTI Pangolin FB-4 Quickshow 'Standard' are:

• Full Ethernet control
• Stand-alone SD memory card
• Full color OLED display
• Support for DMX and/or ILDA (depending on the version)
• Support scan speed of up to 120kpps
• Support for 6-color channels
• Improved laser output with interpolation

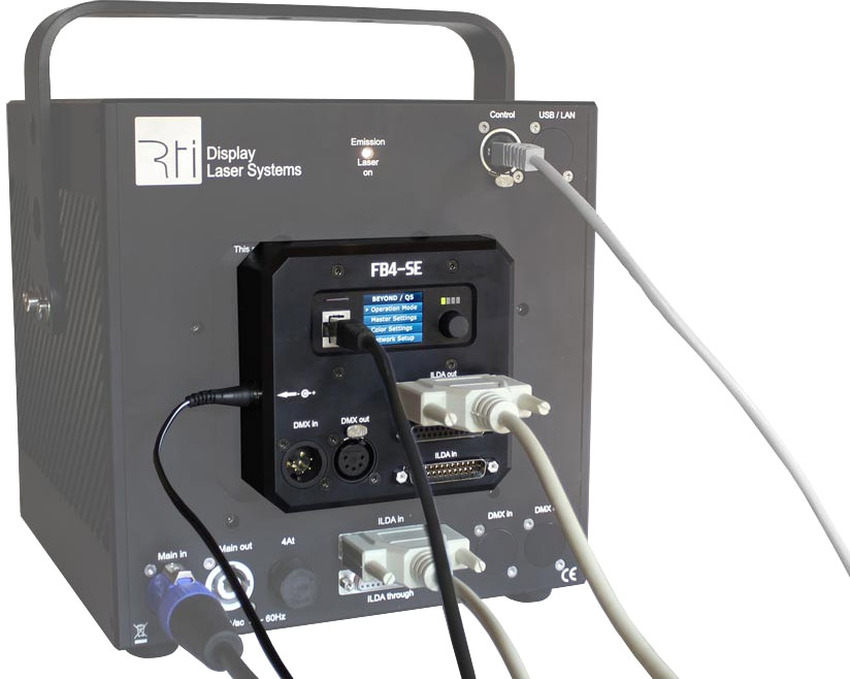

Show laser systems of RTI with detachable remote control pads even allow fixing the RTI Pangolin FB-4 Quickshow 'Standard' housing directly at the laser device.

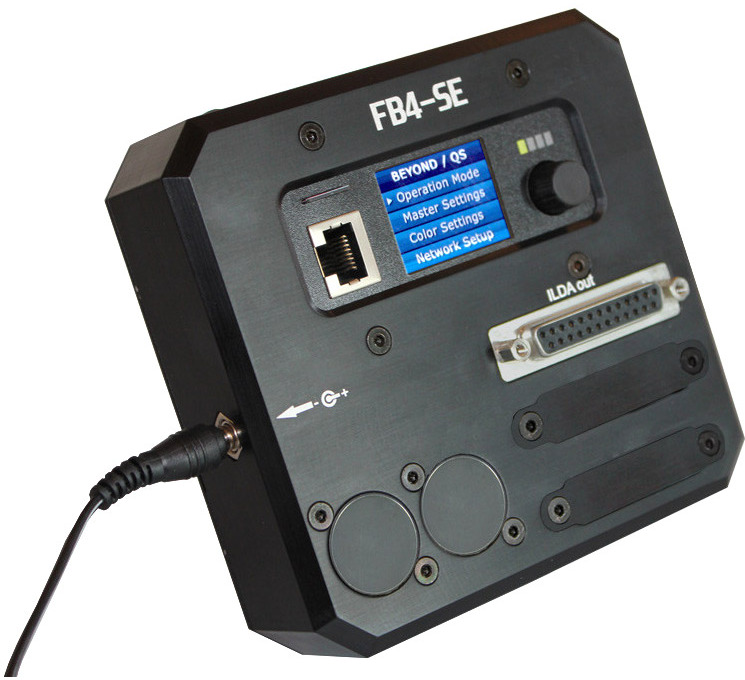

The integrated full color OLED display provides various setting options:

• Projector settings
• Network settings
• Color palette settings
• Geometric corrections
• Safety settings
• Clock
• etc.

RTI FB-4 QS ‘Standard’

RTI FB-4 QS ‘Standard’ runs the laser control software of Pangolin Quickshow and offers the possibility to control the show laser system through ILDA or by the onboard SD-memory.

For ILDA control:
Just connect a network cable (CAT5) from your computer, running Pangolin Quickshow (software is included in this package), to the network port of the RTI Pangolin FB-4 Quickshow 'Standard'. Then connect an ILDA cable from this network interface to the show laser.

With SD-memory:
Lighting Console Mode: Create content in Pangolin software and then export this content to the onboard SD-memory (included in delivery). The computer can be eliminated for the show laser setup, which can be controlled through a lighting console now. This option is ideal for lighting designers.

Auto Mode:
Create content in Pangolin software and then export this content to the onboard SD-memory (included in delivery). It is possible to playback the content from the SD-memory automatically, without the need for a computer. RTI Pangolin FB-4 Quickshow 'Standard' features an internal clock, which allows setting a given time for playback.
