EUROLITE Set 4x AKKU TL-3 QuickDMX + Soft-Bag

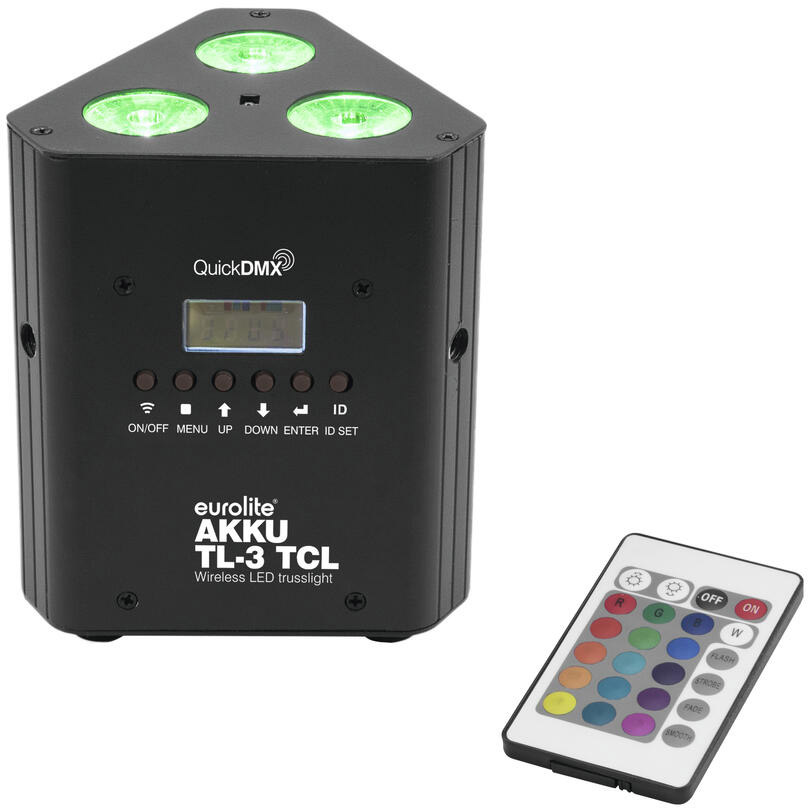

41700501 EUROLITE AKKU TL-3 TCL Trusslight QuickDMX

The AKKU TL-3 TCL Trusslight QuickDMX is a spotlight equipped with 3 bright 3-watt RGB LEDs (3in1) for lighting within trussing. It is wireless and battery-run (battery life 16 hours) and its small size makes it a great fit for many 3- and 4-point trussing systems. Furthermore, this device is equipped with a built-in QuickDMX transceiver for wireless transmission of DMX512 signals.You can choose from a variety of different functions such as static colors, continuous RGB color mixture, internal programs, dimmer effects as well as strobe effects with adjustable speed. The device can either be controlled via DMX or the supplied wireless remote control (Eurolite IR-13). All of these features make the AKKU TL-3 TCL the perfect choice for booth construction, stages and any kind of truss.

41700501 EUROLITE AKKU TL-3 TCL Trusslight QuickDMX

Spot for lighting within trussing, 3 x 3 W 3in1 LED, QuickDMX transceiver

• Compact and bright, making it perfect for truss installation
• Cordless, flexible and versatile
• With integrated QuickDMX receiver for the wireless transmission of DMX512 signals
• Equipped with 3 x 3 W TCL LED in red, green and blue
• Operation via mains connection or built-in rechargeable lithium-ion battery with up to 16 hours operating time
• DMX-controlled operation or stand-alone operation with Master/Slave function
• 3, 5 or 8 DMX channels selectable
• Functions: static colors, stepless RGB color mixture, internal programs, dimmer, strobe effect with variable speed, sound-control
• Dimmer speed (step response) adjustable
• Addressing and setting via Control Board with LCD
• Controllable via EUROLITE IR-13 remote control; included in the delivery
• Ideal for booth construction, stages and any kind of truss
• Ideal for ALUTRUSS 3-POINT SYSTEM DECOLOCK DQ3
• Hanging as well as standing installation possible
• Switch-mode power supply for operation between 100 and 240 volts
• Ready for connection via included power cable with safety power plug
• Feed-through output allows to power up to 8 devices
• Control: Master/slave function; IR remote control; DMX; QuickDMX built-in; Sound to light via Microphone; Stand-alone
• Projection: flicker-free

Remote control

• Battery: 1 x Button cell 3.0 V CR2032 lithium manganese built-in

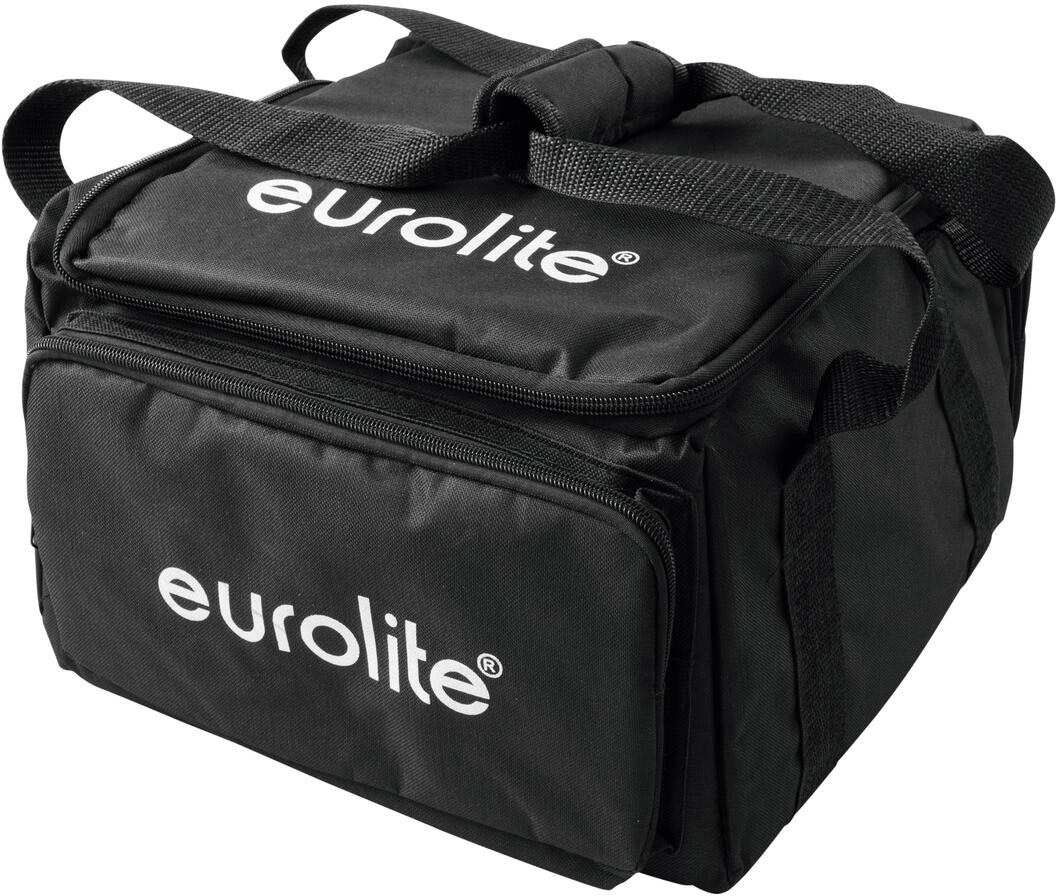

30130501 EUROLITE SB-4 Soft Bag M

Black softbag for up to four devices (Akku UP-4/TL-3 TCL)

• Practical transport bag offers enough space for several lighting effects and accessories
• Large interior, four times divisible and adaptable with foam dividers and pads
• Suitable e.g. for 4 x AKKU UP-4 Spot, 4 x TL-3 TCL Trusslight (41700500) or 3 x AKKU UP-4 Spot QuickDMX (41700540)
• Interior upholstery helps securing and safeguarding the fixtures during transportation
• External pocket stores accessories like cables, clamps, lamps and tape
• Made of easy-care nylon
• Carrying handles

41700501 EUROLITE AKKU TL-3 TCL Trusslight QuickDMX
Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	25 W
IP classification:	IP20
Power connection:	Battery/battery pack
	Mains input IEC connector (M) mounting version via Power supply cord with safety plug (provided)
Power output:	1 x IEC connector (F) mounting version
LED:	3 x high-power 3 W 3in1 TCL RGB (homogenous color mix)
Beam angle:	11°
Flash rate:	0 - 23 Hz
DMX channels:	3; 5; 8
DMX input:	1 x 3-pin XLR (M) mounting version
DMX output:	1 x 3-pin XLR (F) mounting version
Cooling fan:	No, cooling by convection
Control:	Master/slave function
	IR remote control
	DMX
	QuickDMX built-in
	Sound to light via Microphone
	Stand-alone
Case color:	Black
Carrier frequency:	2,4 GHz
Width:	12,1 cm
Height:	14,5 cm
Depth:	10,8 cm
Weight:	1,27 kg
Device
Accumulator:	battery operation up to 16h depending on program used recharging time 3h
Spotlight
Battery pack type:	1 x Lithium ion 11,1 V, 4400 mAh, 48,84 Wh
Remote control
Battery:	1 x Button cell 3.0 V CR2032 lithium manganese built-in
Legal specifications
Ecodesign regulation:	Yes
Special product:	Not designed for household room illumination
Purpose:	Show effect lighting
30130501 EUROLITE SB-4 Soft Bag M
Maximum load:	25 kg
Color:	Black
Material:	Textile
Width:	30 cm
Height:	20 cm
Depth:	30 cm
Weight:	0,51 kg
Internal measurements (total):	290 x 290 x 190 mm
Internal measurements (compartment):	140 x 140 x 190 mm
