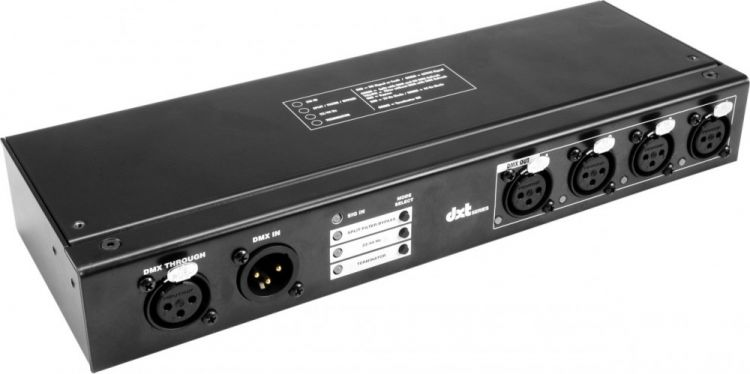

EUROLITE DXT-SP 1in/4out PRO DMX RDM Splitter -B-Stock-

Note: The items in the treasure trove are remnants or items from customer returns.
These items are only available in limited quantities, fully functional but partly without original packaging.
If you have any questions about the product pictured here, please contact us before making your purchase to avoid possible discrepancies. We will be happy to inform you.

RDM-capable DMX splitter, 1in/4out with signal boost

• DMX splitter for splitting one DMX input signal to 4 DMX outputs
• Connections: 2 x DMX input (parallel), 2 x DMX feed-through output (parallel), 4 x DMX output

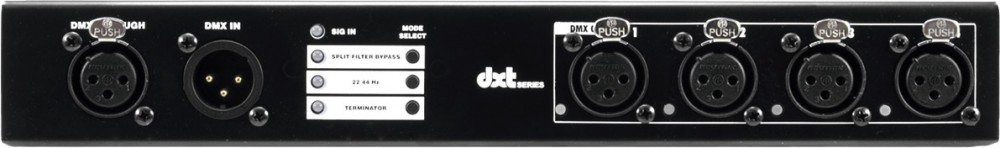

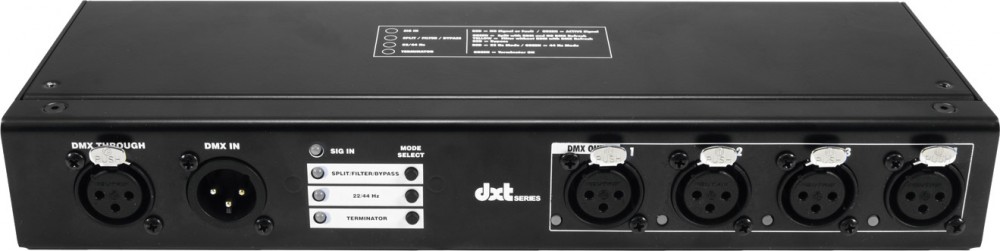

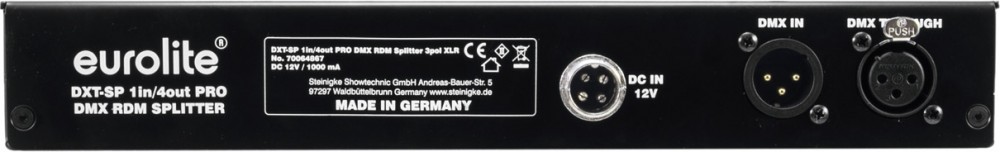

• Input and feed-through output are duplicated on the front and rear panel and connected in parallel
• Supports RDM for bidirectional communication over the DMX line
• Switchable filter mode allows all RDM data to be filtered out in order to prevent problems when using fixtures intolerant of RDM
• Bypass function to process signals from older devices similar to DMX signals
• Output frequency adjustable: 22/44 Hz
• DMX fail mode selectable: hold, blackout, null
• Switchable termination resistor
• Input and outputs XLR 3-pin (Neutrik)
• Outputs galvanically isolated
• Each DMX output with independent driver and status indicator
• Each DMX output can be connected to 32 DMX devices
• Powered via included PSU
• Rack installation via optional rack mounting kit (item 70064872)
• DMX fail mode (hold, blackout, null)
  DMX feed-through for up to 32 further DMX devices
  RDM For bidirectional communication over the DMX line
  RDM switchable to prevent problems when using fixtures without RDM
• Made in Germany
