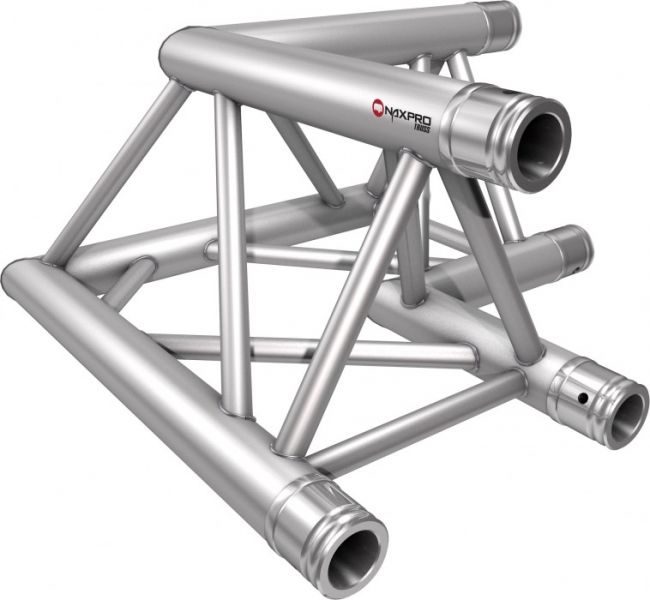

Naxpro-Truss HD 33 C21 90° 2 Way Corner

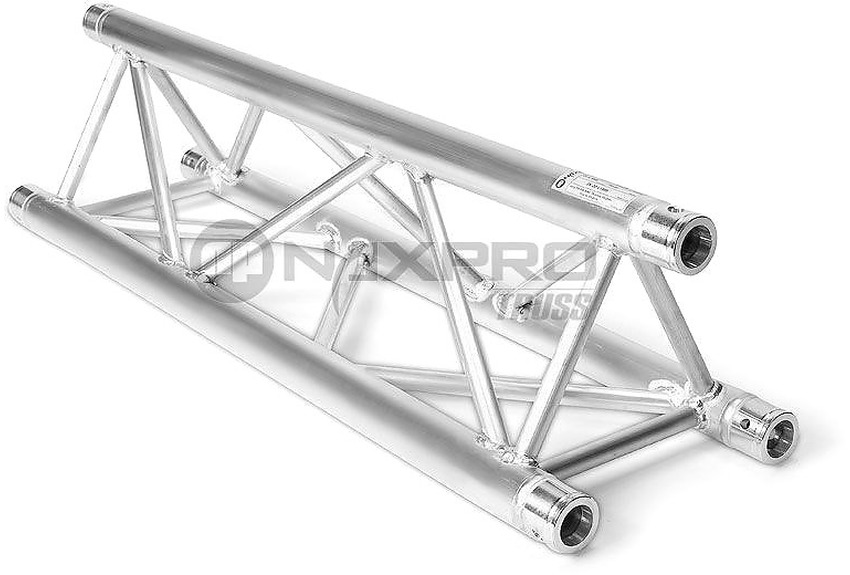

Naxpro HD 33 Truss System

Truss system in 3-point heavy duty design, especially suitable for exhibition stand and store construction, event technology, as well as a load bearing system for lighting systems. Through the use of compact format and high-load bearing capacity this system is equally well used for simple exhibition stands and highly complex rigging structures.

Through the use of cone connectors, the system is connected actuated by adherence. The connectors are included in delivery. To connect the truss all you need in terms of tools is a small aluminium hammer. Special design constructions and powder-coating are feasible in little time.

Technical data:

• Overall width: 290 mm
• Outer diameter tubing: 50 x 3 mm
• Diagonals: 20 x 2 mm

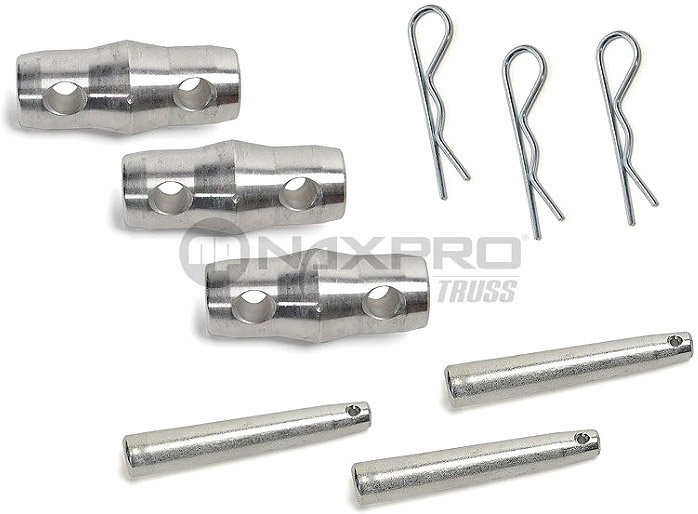

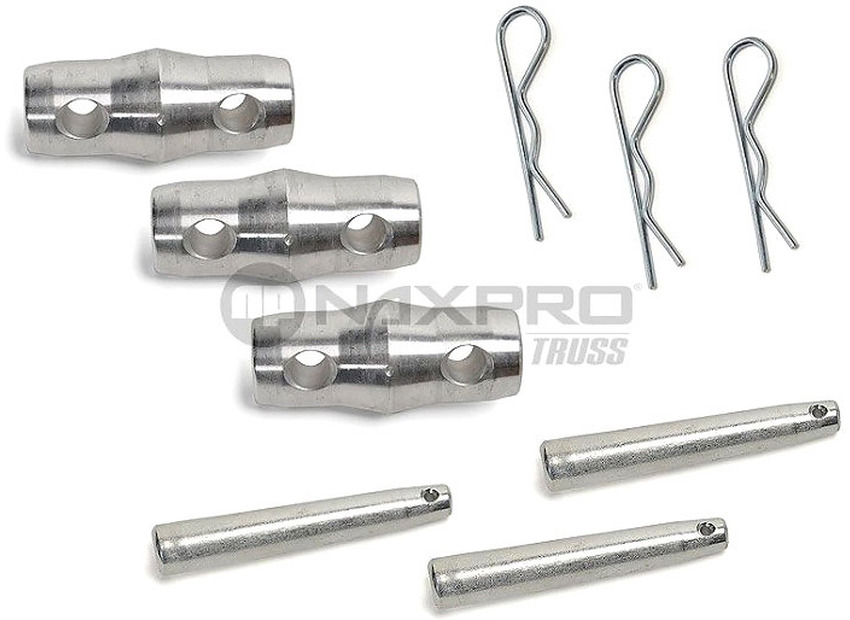

• Including cone connectors with pin and r-spring (3 x cone connector, 6x bolt, 6x r-clip)
• Alloy: EN AW 6082 T6
• Weight: 5,90 kg
• Dimensions: 50 x 50 x 25,7cm (LxBxH)
• Angle: 90°
