Naxpro-Truss FD 33 C61 90° 6 Way Corner

Naxpro FD 33 Truss System

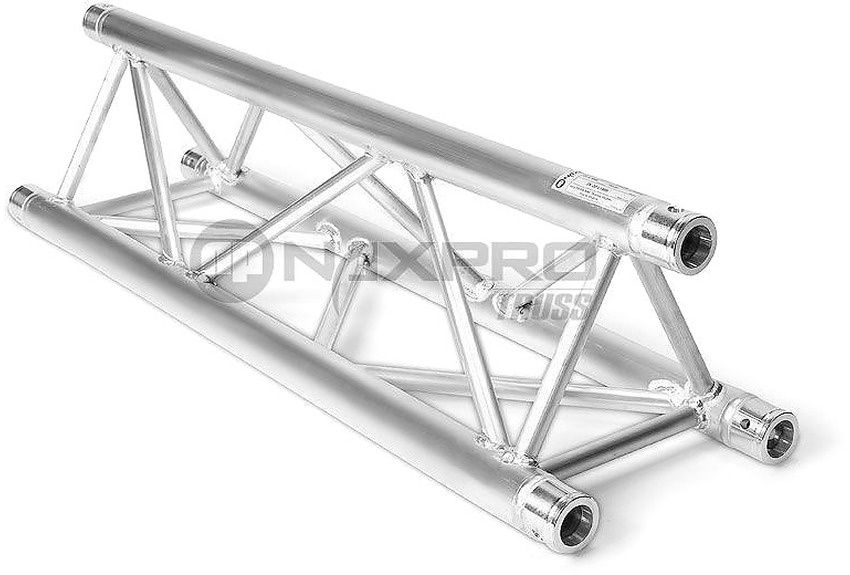

Truss system in 3-point design, especially suitable for exhibition stand and store construction, event technology, as well as a load bearing system for lighting systems. Through the use of compact format and high-load bearing capacity this system is equally well used for simple exhibition stands and highly complex rigging structures.

Through the use of cone connectors, the system is connected actuated by adherence. The connectors are included in delivery. Special design constructions and powder-coating are feasible in little time.


Technical data:

• Overall width: 290 mm
• Outer diameter tubing: 50 x 2 mm
• Diagonals: 20 x 2 mm

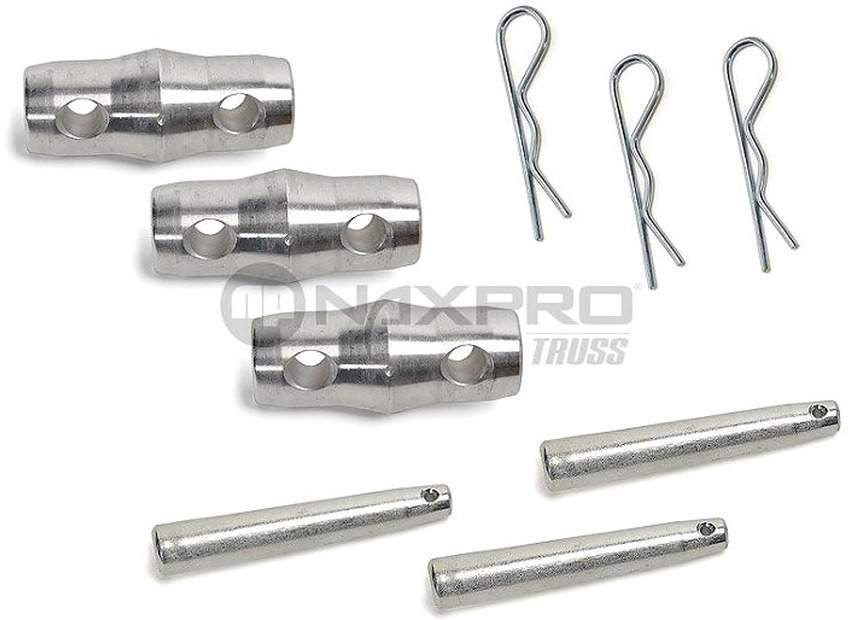

• Including cone connectors with pin and r-spring (15 x cone connector, 30x bolt, 30x r-clip)
• Alloy: EN AW 6082 T6
• Weight: 11,00 kg
• Dimensions: 50 x 50 x 50 cm (LxBxH)
• Angle: 90°
