Naxpro-Truss FD 23 C19 45° 2 Way Corner

Naxpro FD 23 Truss System

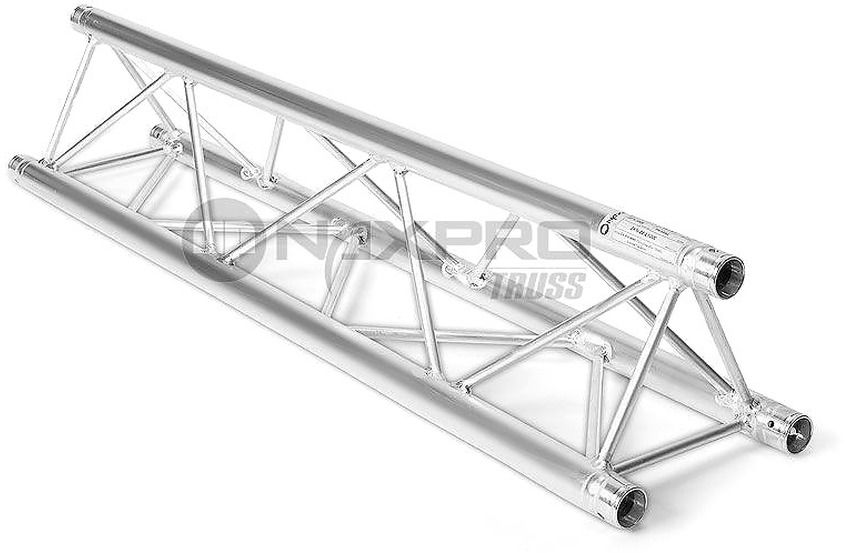

Truss system in 3-point design, which finds in spite of his low tubediameter of only 35 mm professional use in exhibition stand and store construction as well as event technology. Even though the dimensions are small there is enough space for lighting and sales promotion.

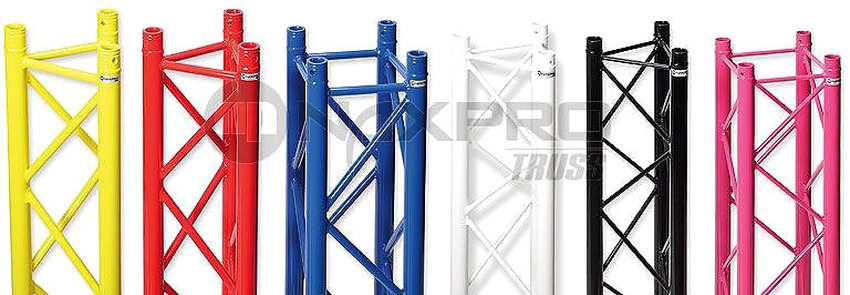

Through the use of cone connectors, the system is connected actuated by adherence. The connectors are included in delivery. Special design constructions and powder-coating are feasible in little time.


Technical data:


• Overall width: 220 mm
• Outer diameter tubing: 35 x 2 mm
• Diagonals: 10 x 2 mm

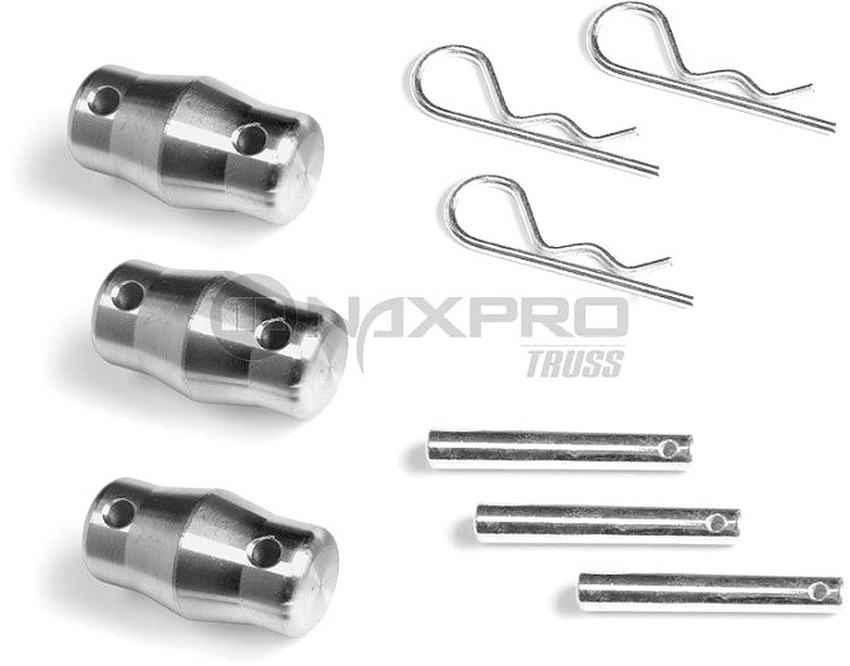

• Including cone connectors with pin and r-spring (3 x cone connector, 6x bolt, 6x r-clip)
• Alloy: EN AW 6060 T66
• Weight: 3,70 kg
• Dimensions: 100 x 100 x 19,5 cm (LxBxH)
• Angle: 45°
