Naxpro-Truss FD 23 C31 90° 3 Way Corner
€249.00 *
Express delivery possible
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
Item number: 300230031
EAN: 4250595800660
Naxpro FD 23 Truss System
Truss system in 3-point design, which finds in spite of his... more
All information about the product:
"Naxpro-Truss FD 23 C31 90° 3 Way Corner"

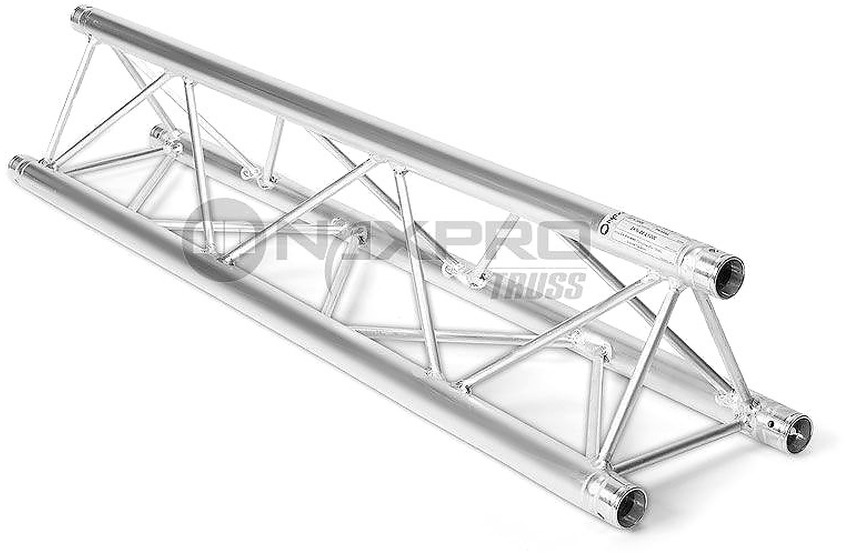

Naxpro FD 23 Truss System
Truss system in 3-point design, which finds in spite of his low tubediameter of only 35 mm professional use in exhibition stand and store construction as well as event technology. Even though the dimensions are small there is enough space for lighting and sales promotion.
Through the use of cone connectors, the system is connected actuated by adherence. The connectors are included in delivery. Special design constructions and powder-coating are feasible in little time.
Technical data:
- Overall width: 220 mm
- Outer diameter tubing: 35 x 2 mm
- Diagonals: 10 x 2 mm

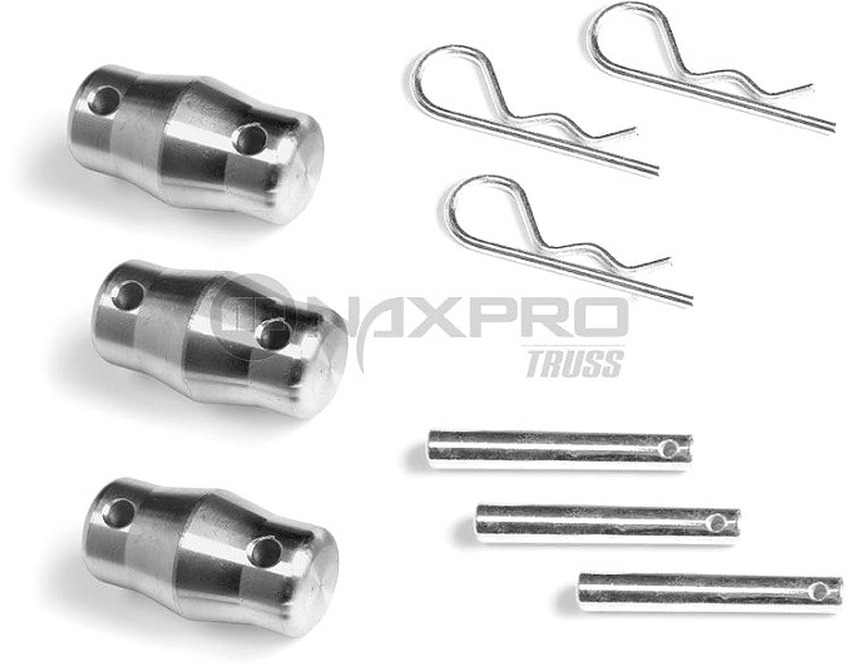

- Including cone connectors with pin and r-spring (6 x cone connector, 12x bolt, 12x r-clip)
- Alloy: EN AW 6060 T66
- Weight: 3,40 kg
- Dimensions: 50 x 50 x 50 cm (LxBxH)
- Angle: 90°
