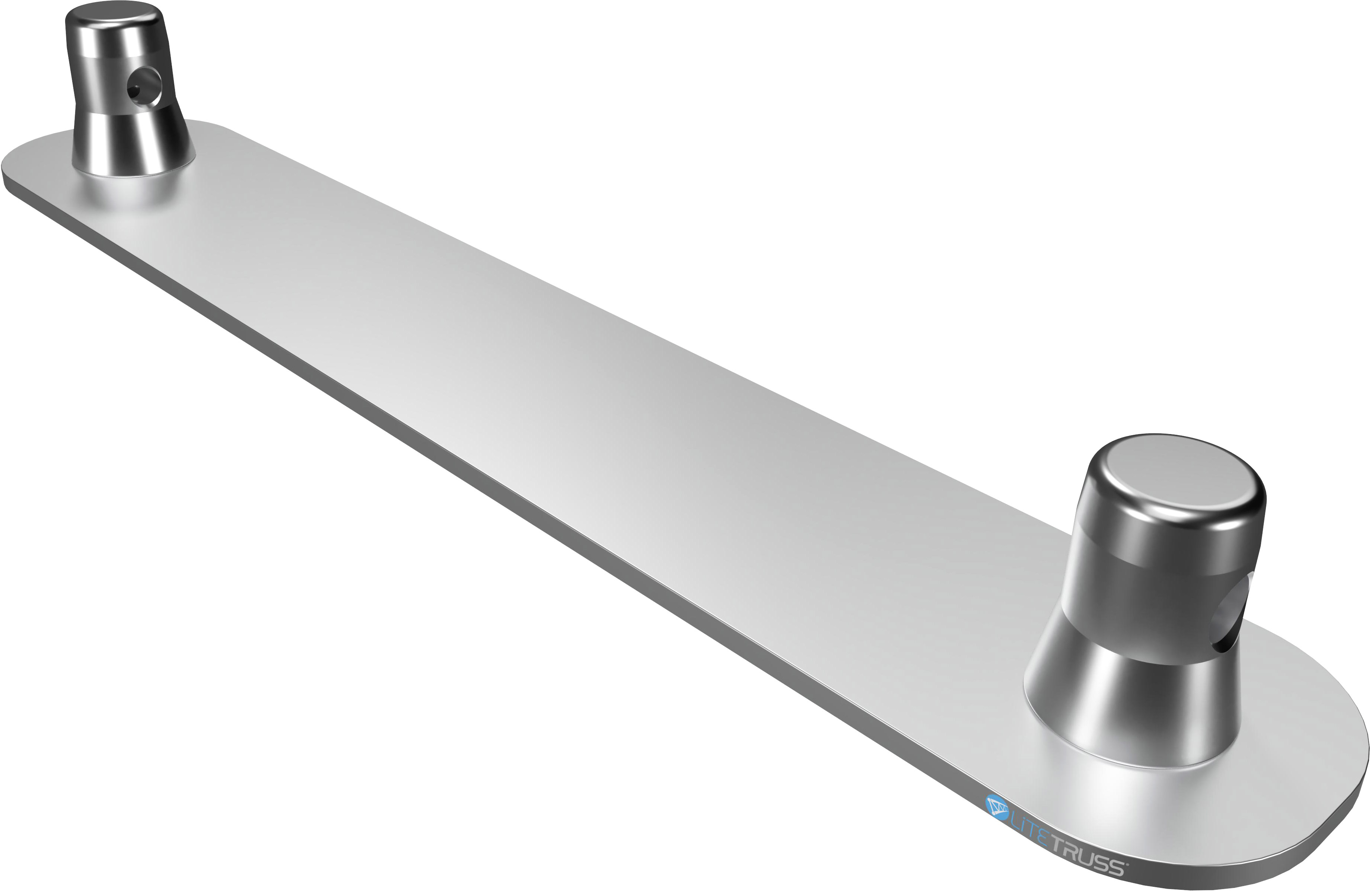

Litetruss H42L Base Plate

Litetruss H42L truss system

The versatile quality truss Litetruss H42L series in heavy-duty design has been developed primarily for space-saving installation in exhibition and shop fitting, for flexible use in stage technology or as a stable support system for lighting systems and thus provides the right basis for a wide range of planning requirements.

In addition to the many standard products, we are also constantly developing new special products in close cooperation with our customers. Please do not hesitate to contact us so that your idea can soon be realised.

Characteristic of all Litetruss products is the symbiosis of excellent material properties and conical connector system, which enables high load-bearing capacity with only low material weight, especially due to the clean and friction-locked assembly. All you need for quick assembly is a light aluminium hammer. The Litetruss H42L truss system, like all other Litetruss series, is available in a wide range of lengths and colours. The Litetruss cone connector set is available separately.

Technical data:

• Material: aluminium
• Bolts & R-Clips must be ordered separately
• Powder coating in all common RAL colors possible
• weight: 0,535 kg

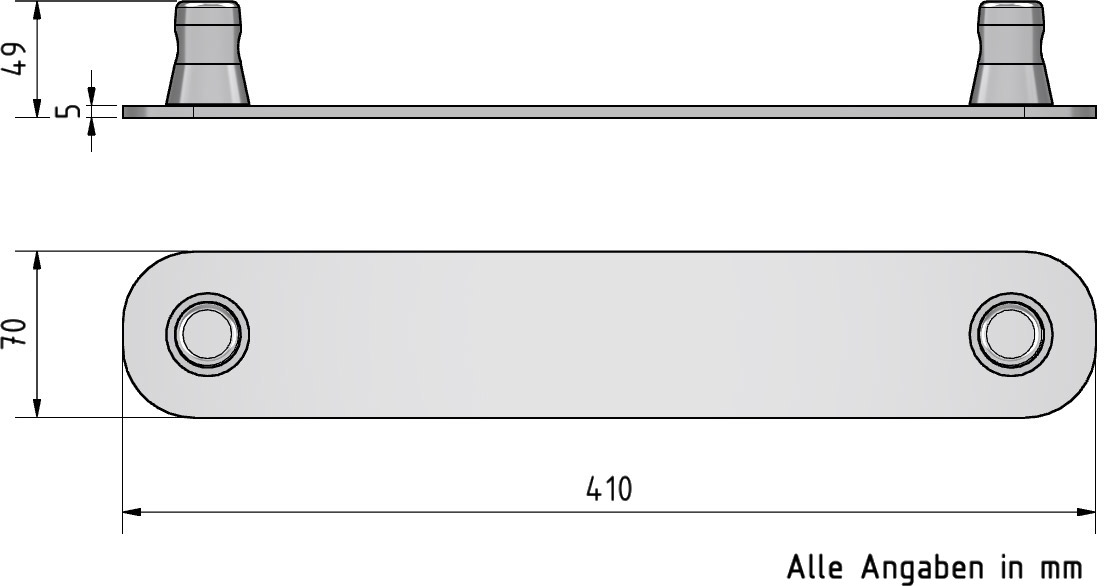

• dimensions: 7 x 41 x 4,9 cm (LxWxH)
