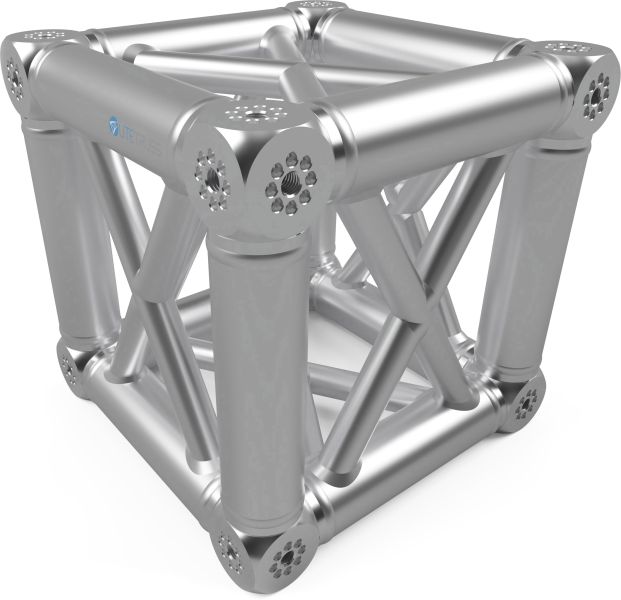

Litetruss H34V-Boxcorner incl. 8 Halfconnector M12

Litetruss H34V truss system

H34V stands for 4-point heavy-duty truss. This truss was designed as a universal system in the area of event technology, for load-bearing systems in lighting technology or in exhibition construction and shopfitting. The compact and stable series, available in a wide range of lengths and sizes, has an outstanding price-performance ratio.

Particularly impressive with this multi-functional truss system are the special assembly features, such as the easy plugging together and the variable construction. The high degree of safety is ensured by the separately available Litetruss Connector Set. You only require a light aluminium hammer for the assembly. Take advantage of our planning service and convince yourself of the diversity of the Litetruss products.



Technical Specifications:

• Width: 290 mm
• Outer diameter tubing: 48,3x3 mm
• Diagonals: 16x2 mm
• Alloy: EN AW 6082 T6
• Weight: 2 kg
• Dimensions: 28,9 x 28,9 x 28,9 cm (LxWxH)
• Angle: 90°
• Connectors must be ordered separately
• Reinforced version with double diagonal
