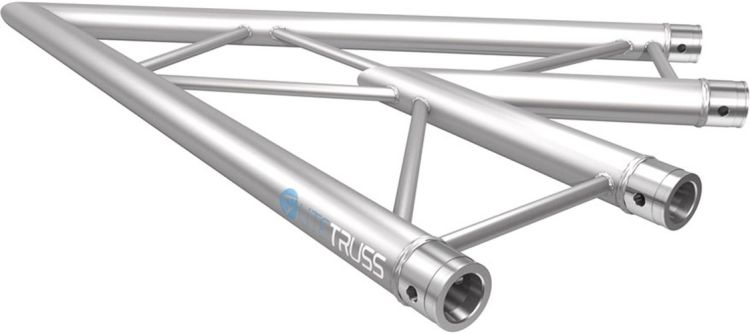

Litetruss H32L-C001F 2 Way Corner 45°

Litetruss H32L truss system

The universally applicable Litetruss H32L range in a heavy-duty design has been especially developed for powerful installation in exhibition construction and shopfitting, for mobile use in stage technology or as a robust load-bearing system for lighting systems, thus providing the appropriate design basis for innumerable project requirements.

A feature of all Litetruss products is the symbiosis of outstanding material properties and a conical connector system, which – particularly due to the clean and secure assembly – allows a high degree of resilience with only a low material weight. You only require a light aluminium hammer for fast assembly. As is the case with all the other Litetruss models, the Litetruss H32L truss system is available in a wide range of lengths and colours. The Litetruss Conus Connector Set is separately available.



Technical Specifications:

• Overall width: 290 mm
• Outer diameter tubing: 48,3x3 mm
• Diagonals: 16x2 mm
• Alloy: EN AW 6082 T6
• Weight: 4,4 kg
• Dimensions: 100 x 87,7 x 4,8 cm (LxWxH)
• Connectors must be ordered separately
