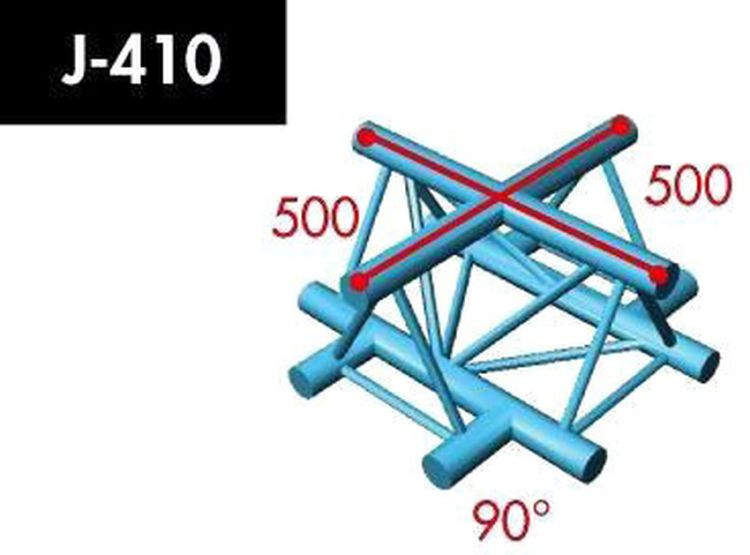

X3K-22 J-410 4-way cross-corner

With a load-bearing tube only 35mm in diameter, the Expotruss®X3K-22 truss fits without problems into any trade fair or shop fitting design.

Despite its modest dimensions, with a span of up to 10m, it leaves enough room for lighting equipment and advertising materials.

Naturally, in addition to the standard components, we also produce for the X3K-22 system whatever special lengths, curves or angles the customer wishes.

Specifications
Truss-type: 3-cord-truss
Connector: conical connector
Material: Aluminium AlMgSi 1.0 F31
Dimensions main-tubes: 35 x 1,5 mm
Dimensions side-tubes: 10 x 2mm

Dimensions / Weight
Height: 195 mm
Leg length: 500 / 500 mm
Weight: 4,60 kg

Structural analysis
Structural analysis: available
