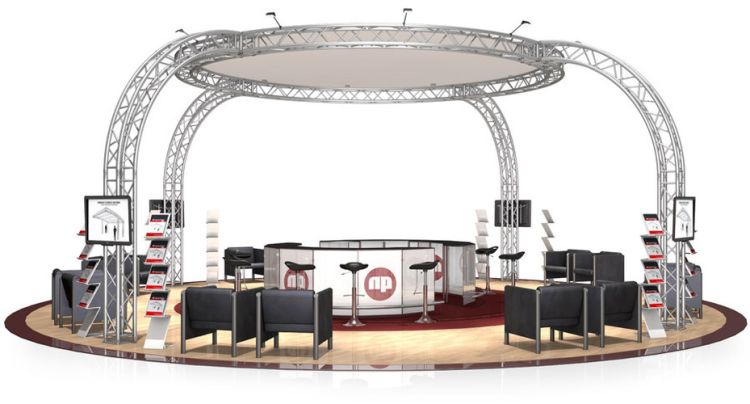

Exhibition Stand FD 34 - 8,29 x 8,29 x 4 m (LxWxH) - 69 m²

When constructing high quality exhibition stands there are 3 essential factors that play a decisive role:

• Safety
• Mobility
• Attractiveness

Safety
It is of prime importance that the fabrication as well as the rigging of exhibition stands is executed with high diligence in order to ensure the safety of visitors and exhibitors. All Naxpro-Truss Trusses are systematically calculated and manufactured under the highest security relevant guidelines. Additionally all popular Naxpro-Truss-Systems fulfil the high safety technical requirements of TÜV-Nord and offer therefore the maximum amount of tested safety.

Mobility
Aluminium Trusses in contrast to other materials have the positive feature of being very light proportional to their load capacity. Therefore they can be transported economical as well as effort-saving and consequently offer a distinct logistic advantage. The simple handling and the modern cone-connection-system of the single components make the rigging and disassembling easy and guarantee unbeatable cost efficiency.

Attractiveness
Modern exhibition stands made from Naxpro-Truss-Systems are always an optical highlight. The modules are combinable in multiple ways and thus enable a vast number of individual design possibilities. As a linear booth, corner booth, peninsula booth or as island booth the appealing designs of the Naxpro-Truss exhibition stands will draw the attention to the products and exhibitor.

The FD 34 Naxpro-Truss Exhibition Stand consists of the following components:

4 x Naxpro-Truss FD 34 Straight 200 cm
2 x Naxpro-Truss FD 34 Truss Circle 4 m
4 x Naxpro-Truss FD 34 Boxcorner incl. 8 connectors
16 x Naxpro-Truss Halfconnector for box corner M12
4 x FD 34 Base Plate

(Decoration, lining, lighting, furniture etc.is not included. We gladly offer these components seperately.)

Technical data Trusses FD 34:

• Overall width 290 mm
• Outer diameter tubing 50 x 2 mm
• Diagonal bracing 20 x 2 mm
• Including cone connectors with pin and r-spring
• Alloy EN AW 6082 T6
• TÜV certified

• Dimensions: approx. 829 x 829 x 400 cm (LxWxH)
• Total area: approx. 69 m²
• Total weight: approx. 215 kg
