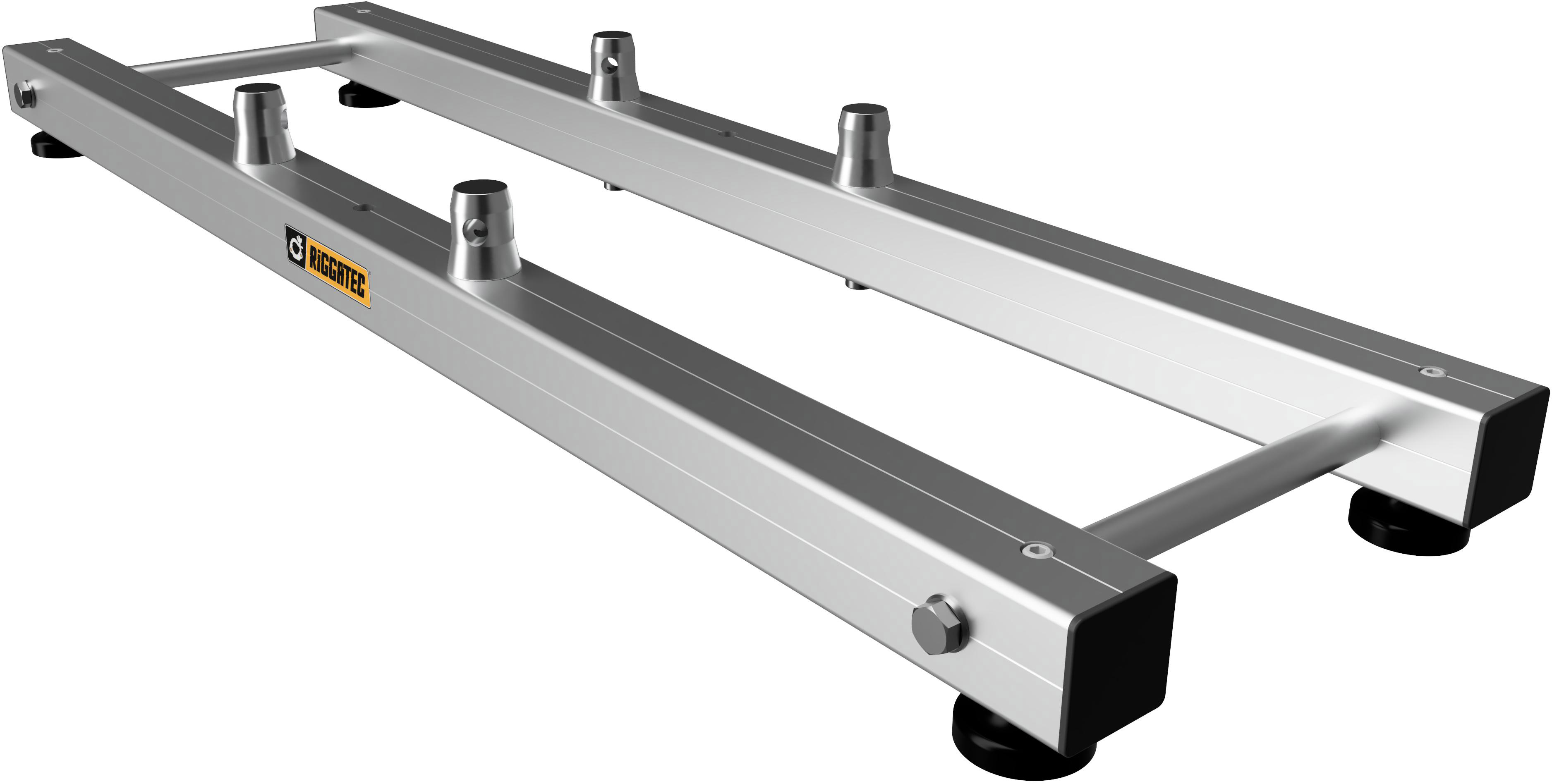

Riggatec - Minibase

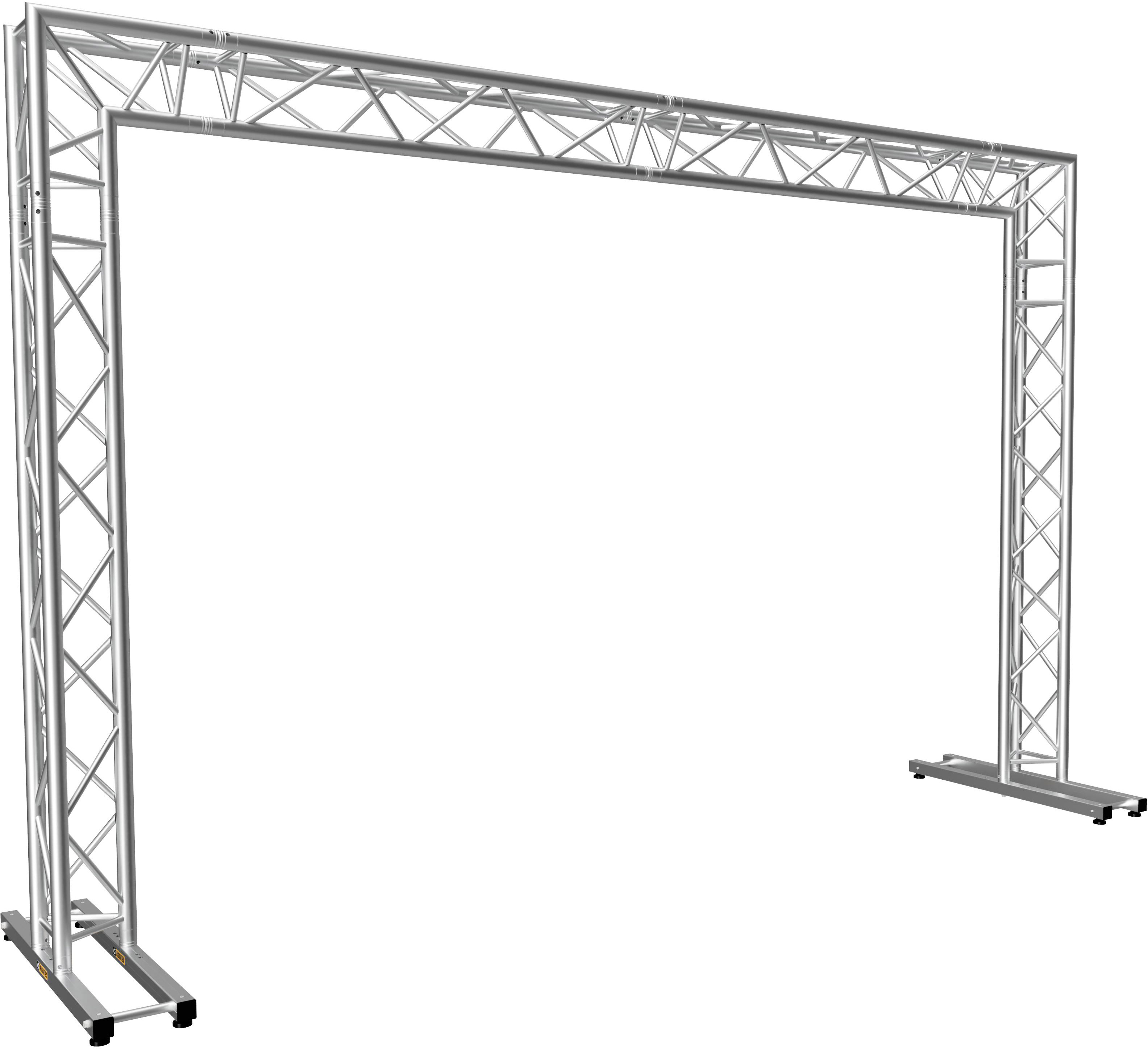

The Riggatec Minibase is a lightweight and very stable solution for setting up small truss bridges or archways. The high-quality special aluminum profiles guarantee the stability of the base. Small adjustable feet at the ends of the base can be used to level out any unevenness in the ground. There is also an anti-slip coating on the underside of the adjustable feet, which also improves the stability of the base.

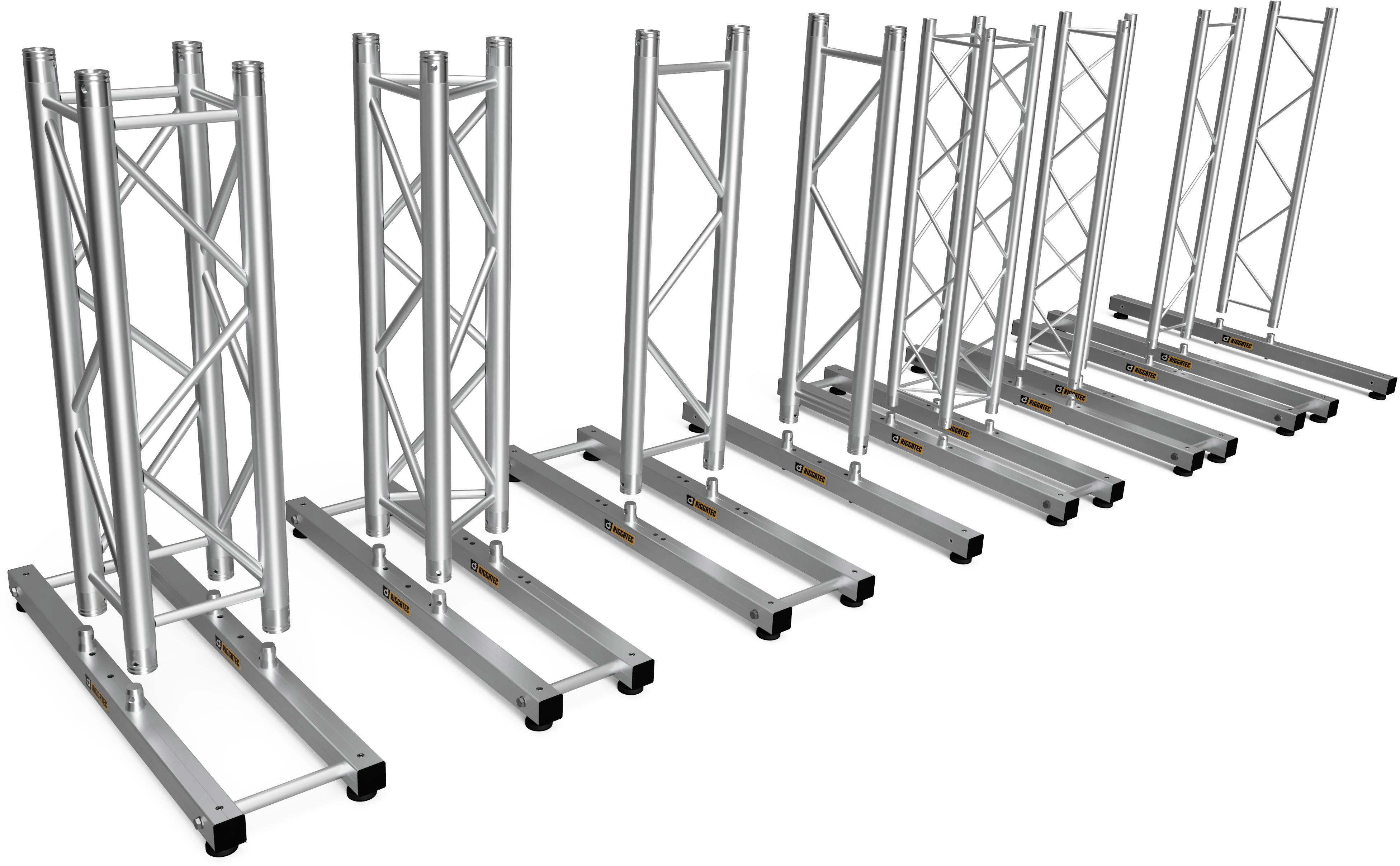

1 / 2 / 3 and 4 point trusses with system sizes 21-24 and 31-34 can be screwed onto the base using half cones. This requires half cones with an M8 / M10 threaded mount of the respective truss brand.

Technical data:

• Width (mm): 100
• Height (mm): 70
• Length (mm): 1000
• Connection: Half cone M8 / M10
• Axle dimension (mm): 185 / 240
• Nevillable: yes
• Ballastable: yes
• Weight (kg) 6.00 kg

Scope of delivery:

1x Riggatec Minibase (without half cone and spacer)
