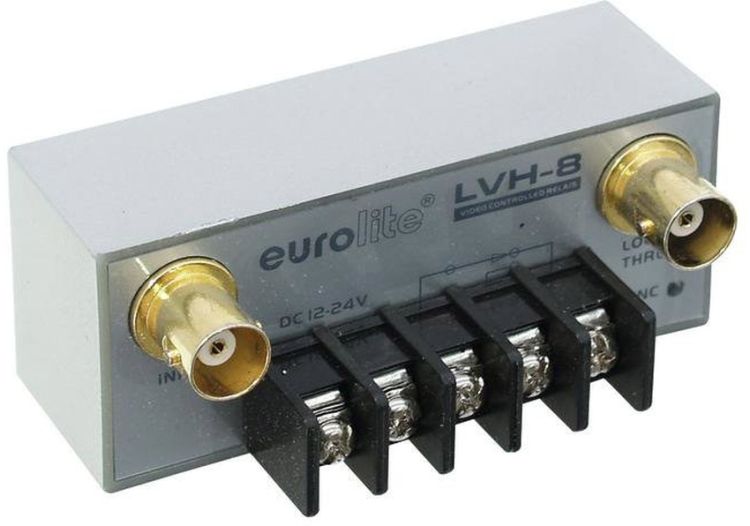

EUROLITE LVH-8 Video controlled relay

EUROLITE LVH-8 Videogesteuertes Relais
€26.85 *
incl. tax, plus shipping costs
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
Item number: 120014815
EAN: 4026397324846
VIDEO CONTROLLED RELAYThe LVH-8 serves as a video presence detector for an audio/video system.... more
All information about the product:
"EUROLITE LVH-8 Video controlled relay"
VIDEO CONTROLLED RELAYThe LVH-8 serves as a video presence detector for an audio/video system. The unit generates a control signal based on the absence or presence of valid video signals. The unit responds to NTSC and PAL signals and features a feed-through output. Power connections are made using block terminals.

Video controlled relay

  • Detection of video
  • NTSC and PAL compatible
  • Bridging or terminated operation
  • LED indicator
  • 12-24 V DC power supply via block terminals (PSU not included)
  • Ultra compact
Power supply:12-24 V DC 74 mA
Connections:2 x BNC (F)
Screw terminal
Dimensions:Width: 7,6 cm
Depth: 4,1 cm
Height: 3,1 cm
Weight:70 g
1 x video input:0.5-1 Vpp/75 ohms BNC, ground referenced
1 x video output:Feed-through/ BNC, ground referenced
Control output:N/O or N/C contacts
Relay contacts:Single-pole, double-throw
Max. switching power:60 W, 125 VA
Max. switching voltage:220 V AC, 250 V DC
Max. switching current:2 A
Max. continuous switching current:3 A
