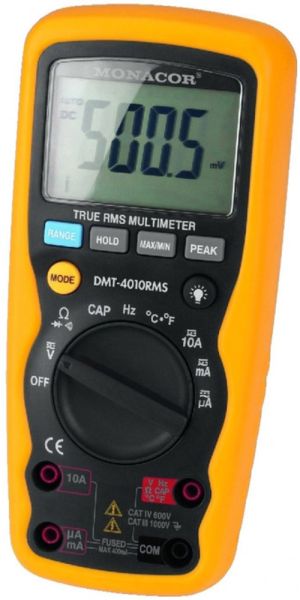

MONACOR DMT-4010RMS Digital multimeter
€140.00 *
Express delivery possible
Availability:
Low stock; Delivery time: 1-3 days
Delivery time: approx. 1-3 days
Item number: 250125230
EAN: 4007754214918
MPN: 0292020
Digital multimeter, for professional applications. True RMS measuring method Protected... more
All information about the product:
"MONACOR DMT-4010RMS Digital multimeter"
Digital multimeter,
for professional applications.
- True RMS measuring method
- Protected against dust and water according to IP67 when test jacks are covered
- Autoranging for faster measurements
- Resolution: 4,000 digits
- Additional bar graph display
- Voltage measurement: up to DC/˜ 1,000 V
- Current measurement: up to DC/˜ 10 A
- Frequency measurement: up to 10 MHz
- Resistance measurement: up to 40 MO
- Capacitance measurement: up to 40 mF
- Temperature measurement: -20 °C to +760 °C
- Acoustic continuity test
- Diode test
- Data hold (storage of measured value)
- Peak hold
- Recording of max. value and min. value
- LCD with selectable backlight
- Automatic switch-off
- Overload protection
- Supplied with test leads and protective bag
| Display: | 21 mm LCD, 3¾ digits, bar graph display |
| Range selection: | automatic, manual |
| Voltage: | 5 ranges DC 400 mV-1,000 V ˜ 400 mV-1,000 V |
| Current: | 5 ranges DC 400 µA-10 A ˜ 400 µA-10 A |
| Resistance: | 6 ranges 400 O-40 MO |
| Frequency: | 4 ranges 4 kHz-10 MHz |
| Capacitance: | 8 ranges 4 nF-40 mF |
| Temperature: | 1 range -20 °C to +760 °C -4 °F to +1,400 °F type K sensor |
| Admiss. ambient temp.: | -10 °C to +50 °C |
| Dimensions: | 83 x 180 x 54 mm incl. rubber holster |
| Weight: | 430 g |
| Power supply: | 9 V battery (not supplied) |
| Special features: | peak, min/max, hold, IP67 |
