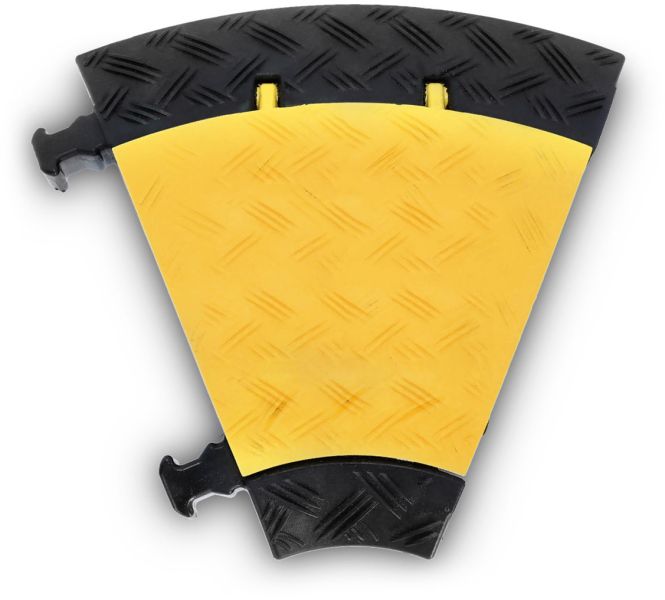

Defender MINI C MK2 | LEFT - Cable protector 3 channels | 45° curve left | medium load | height 5cm
NEW
€208.58 *
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
Item number: 500130830
EAN: 4049521944482
NEW
Cable protector 3 channels | 45° curve left | medium load | height 5cm 45° bend LEFT suitable... more
All information about the product:
"Defender MINI C MK2 | LEFT - Cable protector 3 channels | 45° curve left | medium load | height 5cm"
Cable protector 3 channels | 45° curve left | medium load | height 5cm3 small cable ducts - Lightweight and robust
Cable ducts
Environmental
Dimensions & weight
- 45° bend LEFT suitable for all products from the MINI series
- Compact, non-slip Cable protector made of black, recyclable polyurethane
- Yellow polyurethane lid with high warning effect and secure locking mechanism
- Patented self-cleaning lid hinge
- 3 channels: 1 channel 35 x 35 mm, 2 channels 35 x 30 mm
- Load capacity approx. 2 tonnes / 20 x 20 cm
- Fire protection class E in accordance with DIN EN 13501-1 (B-s1 applied for)
- Resistant to oil, acid, petrol and short-term contact with solvents
- Reliable cable and personal protection for indoor and outdoor use
- Not suitable for road traffic
- TÜV Süd certified
The Defender® MINI Cable protector is available with a black or yellow cover and is suitable for both indoor and outdoor use. The flat, compact 3-channel Cable protector with integrated connecting pins and non-slip underside offers optimum grip on a wide variety of floors. Separately available end pieces (male/female) ensure safe, organised cable entry and exit. Defender MINI Cable protectors can withstand a load of 2 tonnes on an area of 20 x 20 cm and allow light vehicles, trolleys and pedestrians to cross. Areas of application include carnival events, trade fairs, exhibitions, shopping centres and warehouses as well as stages, studios and broadcasting stations. Not suitable for road traffic.
Technical data:General| Material: | TPU (Thermoplastic polyurethane) |
| Surface structure: | Ribbed |
| Colour: | Black |
| Lid colour: | Yellow |
| Maximum load (on 20 x 20 cm): | 2 t |
| Chemical resistance: | Petrol, Solvents (short-term contact), Oil |
| Hardness range (±4 Shore A): | 88 |
| Shape: | Round |
| Quantity: | 3 |
| Cable ducts size (W x H): | 35 mm x 30 mm / 35 mm x 35 mm |
| Fire protection class (EN 13501-1): | B2 |
| Ambient temperature: | -30 - 60 °C |
| Curve/Bend: | 45 ° |
| Length: | 0.33 m |
| Width: | 0.3 m |
| Height: | 5 cm |
| Weight: | 1.25 kg |
