Defender MIDI 4C BLK - Cable Protector 4-channel black

Preview: Defender MIDI 4C BLK - Kabelbrücke 4 Kanäle schwarz

Defender MIDI 4C BLK - Cable Protector 4-channel black

Defender MIDI 4C BLK - Kabelbrücke 4 Kanäle schwarz

€199.13 *

incl. tax, free shipping to Germany
[International shipping costs]

Availability:

Delivery time: 3-5 days

Delivery time: approx. 3-5 days

Item number: 500126000

EAN: 4049521464249

Cable Protector 4-channel black The standard for event technology, industry and all public... more

Back to the overview

All information about the product:

"Defender MIDI 4C BLK - Cable Protector 4-channel black"

Cable Protector 4-channel black

The standard for event technology, industry and all public applications
Heavy duty non-slip all-round cable protectors made out of black, recyclable polyurethane with integrated carrying handles
Black polyurethane cover with high warning effect and secure locking
Patented self-cleaning hinged cover
4 channels: 1 channel 80 x 36 mm (for C-pressure hoses) and 3 channels 34 x 36 mm
Load capacity approximately 5 t/20 cm²
Fire protection class B2 (DIN 4102), DEKRA-certified (DIN 31000, EN 61537)
Resistant to oil, acid, petrol and short-term contact with solvents
Dimensions 87 x 53.8 x 5.5 cm; weight 13.5 kg
Reliable cable, hose and personal protection for indoor and outdoor use
End caps for safe cable entry and exit available as accessories

3 medium-sized cable channels – 1 large channel for fire hoses

The Defender® MIDI 4C cable crossover has three cable channels measuring 34 x 36 mm plus a wide hose channel (80 x 36 mm), making it the ideal solution if a pressure hose has to run parallel to individual sound, light and/or network cables. With its integrated connectors, flat profile and a capacity of 5 tonnes on an area of 20 x 20 cm (like the Defender MIDI system), MIDI 4C cable crossovers are perfect for heavy traffic, construction sites, warehouses, shopping centres, trade shows and exhibitions, as well as carnival and music events.

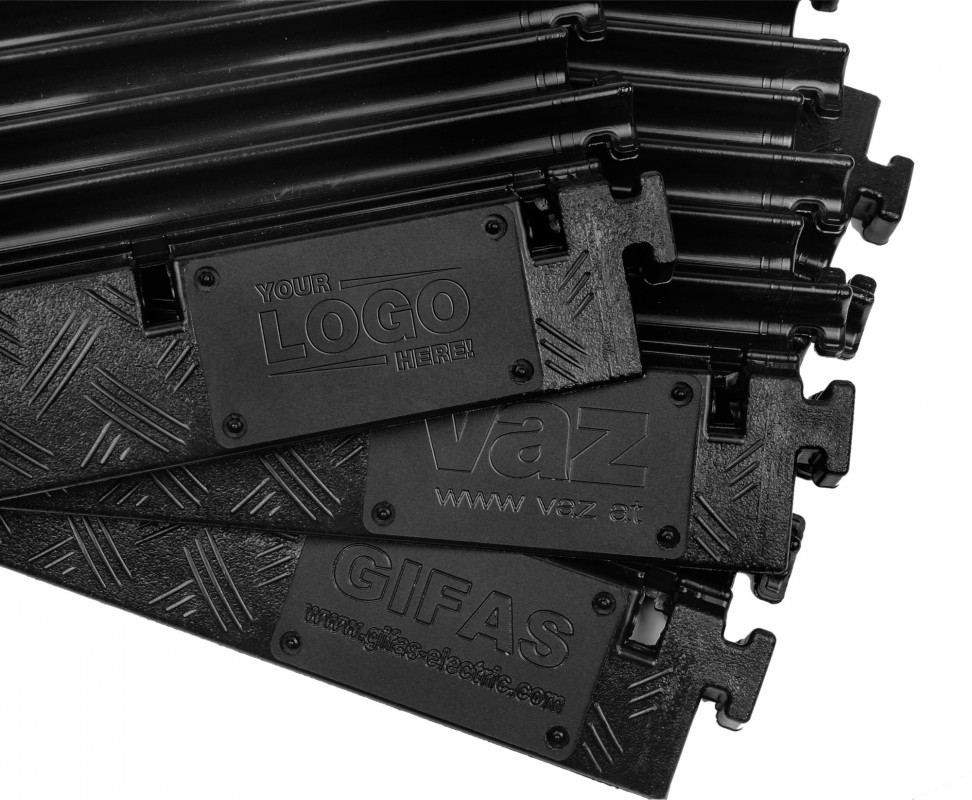

Label your cable crossovers! All Defender cable crossovers can be customised with your company logo from a minimum order of just 30 units per model. The format requirements are available in the download area. Don’t hesitate to contact us.

Technical data:

Product type:	Cable Protectors
Type:	4 Channels
Length:	870 mm
Width:	538 mm
Height:	55 mm
Channels:	4
Width channel 1:	34 mm
Height channel 1:	36 mm
Width channel 2:	34 mm
Height channel 2:	36 mm
Width channel 3:	34 mm
Height channel 3:	36 mm
Width channel 4:	80 mm
Height channel 4:	36 mm
Material:	Polyurethane
Max load:	approx. 5t on a surface area of 20 x 20 cm
Chemical resistance:	Acid-resistant
Chemical resistance:	Oil-resistant
Chemical resistance:	Petrol-resistant
Chemical resistance:	Short-term contact with solvents
Hardness range:	88 Shore ± 4 A Shore
Fire protection class:	B2
Temperature range:	-30°C to 60°C °C
Weight:	13,4 kg
Special feature:	DEKRA-certified
