Defender MINI LUX - Cable Protector 3-channel LUX
- Compact, non-slip cable crossover made of black, recyclable polyurethane
- Highly transparent yellow-tinted lid for use in the dark with light tubes
- Yellow polyurethane lid with high warning effect and secure closure (also available with black lid, item N° 85200BLK)
- Patented, self-cleaning lid hinge
- 3 channels: 1 channel 35 x 35 mm, 2 channels 35 x 30 mm
- Load bearing capacity approx. 2 t / 20 x 20 cm
- Fire resistance class B2 (DIN 4102), DEKRA-certified (DIN 31000, EN 61537)
- Resistant to oil, acid, petrol and short-term contact with solvents
- Dimensions 105 x 29 x 5 cm; Weight 6 kg
- Reliable protection for cables and personnel for indoor and outdoor use
- Not suitable for road traffic.
- End ramps for secure cable insertion and removal as accessories

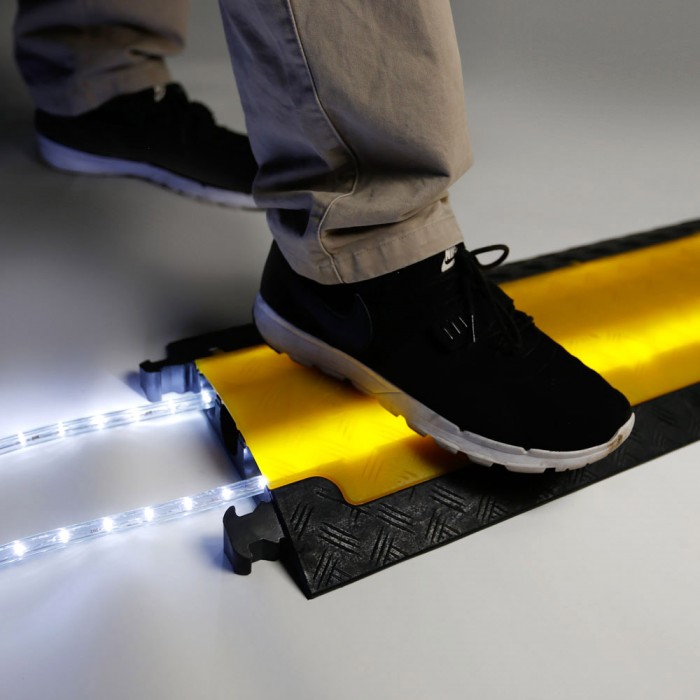

The ultimate solution for protecting your cables and for preventing people from tripping. The innovative cable crossovers from the Defender LUX Series have highly transparent, yellow-tinted lids, where LED light tubes can be inserted parallel to cables and other pipes. Defender LUX cable crossovers have been developed in collaboration with event organisers and operators of large halls and festival venues according to the latest state-of-the-art technology and also ensure the highest possible level of safety and visibility in the dark, both indoors and outdoors. For more information, please refer to our price list for Defender LUX cable crossovers, or contact your Defender representative directly.

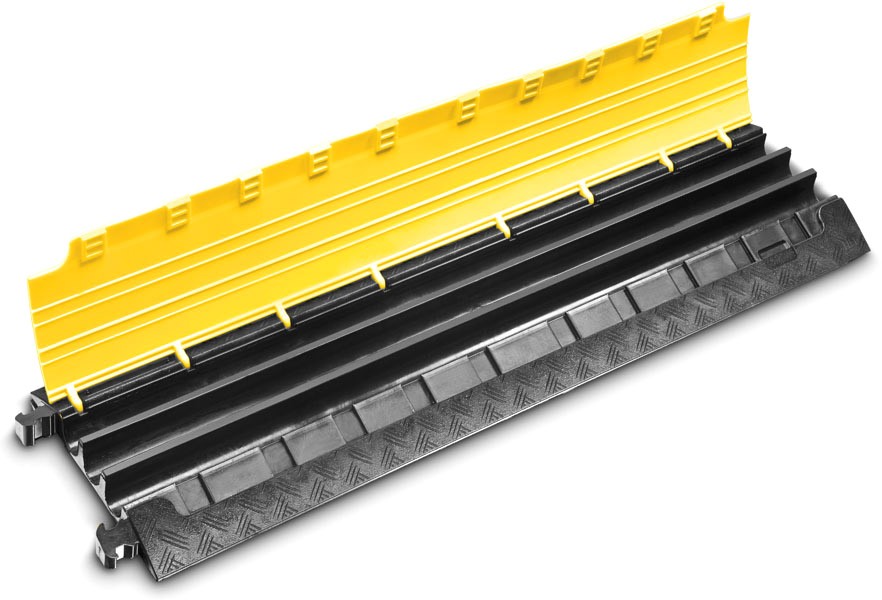

Cable Crossover 3 ChannelsThe Defender® MINI cable crossovers are also available with either a black or yellow lid and are suitable for indoor and outdoor use. The flat, compact, 3-channel cable crossover with integrated connection plugs and non-slip base provides optimum support on a wide variety of floors. Separately available end ramps (male/female) ensure safe and orderly insertion and removal of cables. Defender MINI cable crossovers withstand a load of 2 tonnes on an area of 20 x 20 cm and allow crossing for light vehicles, trolleys and pedestrians. Defender MINI cable crossovers can be used in carnival events, trade shows, exhibitions, shopping centres and storage facilities as well as in theatres, studios and TV stations. Not suitable for road traffic.
Defender LUX cable crossovers can be used with commercially available light tubes. Light tubes with a so-called neon effect are especially recommended since the individual LEDs are less visible and this provides for particularly homogeneous lighting. For outdoor use, please mind the appropriate IP classification of the light tube. The use of LED strips and other unidirectional light-emitting products or fairy lights is not recommended.

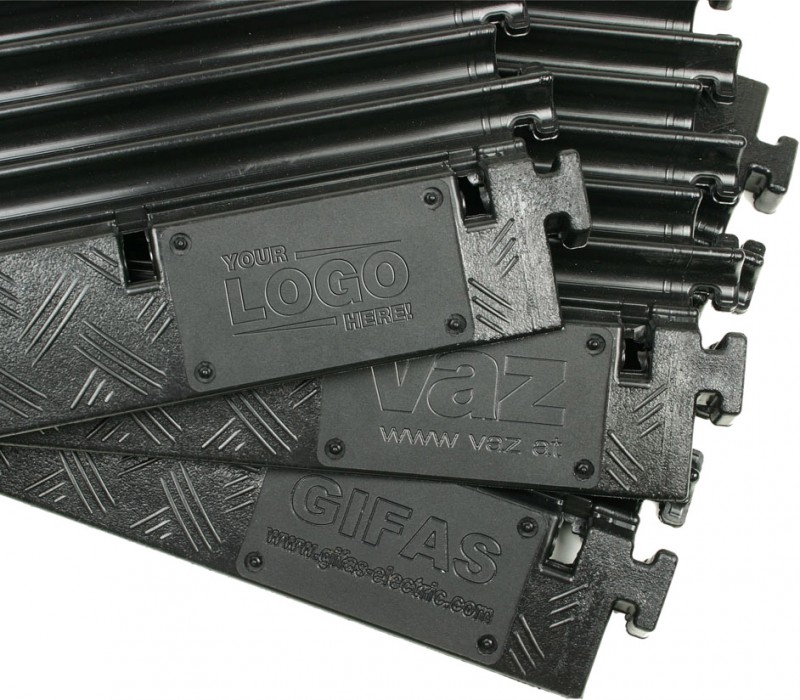

Label your cable crossovers! Customise the Defender cable crossovers with your company logo for orders ex 30 pieces for each product. You will find the format requirements in the download pool above the text. Feel free to contact us for more information.
Technical data:| Product type: | Cable Protectors |
| Type: | 3 Channels |
| Width: | 290 mm |
| Height: | 50 mm |
| Length: | 1005 mm |
| Channels: | 3 |
| Width channel 1: | 35 mm |
| Height channel 1: | 30 mm |
| Width channel 2: | 35 mm |
| Height channel 2: | 35 mm |
| Width channel 3: | 35 mm |
| Height channel 3: | 30 mm |
| Material: | Polyurethane |
| Max load: | approx. 2 t on a surface area of 20 x 20 cm |
| Chemical resistance: | Acid-resistant |
| Chemical resistance: | Oil-resistant |
| Chemical resistance: | Petrol-resistant |
| Chemical resistance: | Short-term contact with solvents |
| Hardness range: | 88 Shore |
| Fire protection class: | B2 |
| Temperature range: | -30 to +60 °C |
| Weight: | 5,9 kg |
| Special feature: | DEKRA-certified |
