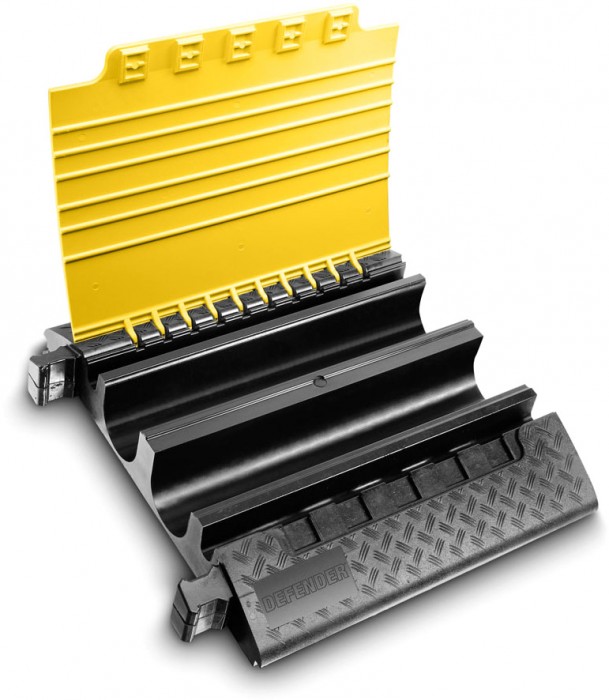

Defender Ultra L LUX - Cable Protector 2-channel LUX
Bulky goodsBulky goods
- Heavy duty cable protector made of black, recyclable polyurethane for demanding applications
- Highly transparent yellow-tinted lid for use in the dark with light tubes
- Non-slip, yellow polyurethane lid with high warning effect and secure closure
- Patented, self-cleaning lid hinge
- Channels: 2 channels each 120 x 113 mm and 33 x 50 mm
- Two channels suitable for A-suction hoses and multipin connectors
- Load bearing capacity approx. 5 t / 20 x 20 cm
- Fire resistance class B2 (DIN 4102), DEKRA-certified (DIN 31000, EN 61537)
- Resistant to oil, acid, petrol and short-term contact with solvents
- Dimensions 70 x 78.3 x 13.9 cm; Weight 30.5 kg
- Reliable protection for cables, hoses, and personnel for indoor and outdoor use

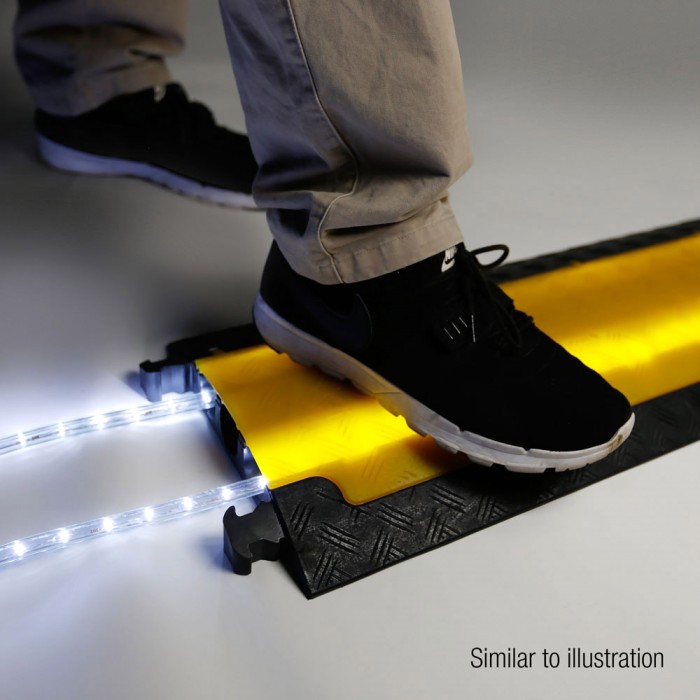

The ultimate solution for protecting your cables and for preventing people from tripping. The innovative cable crossovers in the Defender LUX Series have highly transparent, yellow-tinted lids in which LED light tubes can be inserted parallel to cables and other pipes. Based on state-of-the-art technology, Defender LUX cable crossovers have been developed in collaboration with event organisers and operators of large halls and festival venues and ensure the highest possible level of safety and visibility in the dark, both indoors and outdoors.. For more information, please refer to our price list for Defender LUX cable crossovers, or contact your Defender representative directly.

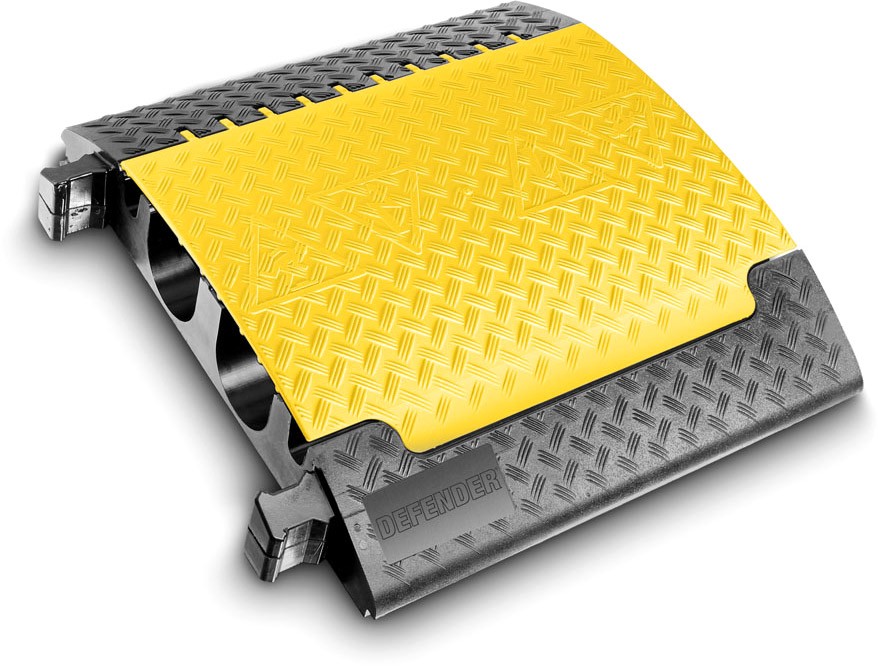

Cable protector, 2-channelDefender® Ultra L heavy-duty cable crossovers are designed for the most demanding applications and feature two extra-large cable channels (two channels of 120 x 113 mm plus two channels of 33 x 50 mm) as well as integrated connector plugs for easy coupling of several elements. Defender® Ultra L heavy-duty cable crossovers are designed for the most demanding applications and feature two extra-large cable channels (two channels of 120 x 113 mm plus two channels of 33 x 50 mm) as well as integrated connector plugs for easy coupling of several elements. The load-bearing capacity is approx. 5 tons on a 20 x 20 cm surface area. This makes Ultra L cable crossovers the ideal solution for heavy traffic, construction sites, warehouses, trade shows, carnival and music events, as well as other applications involving particularly heavy use.

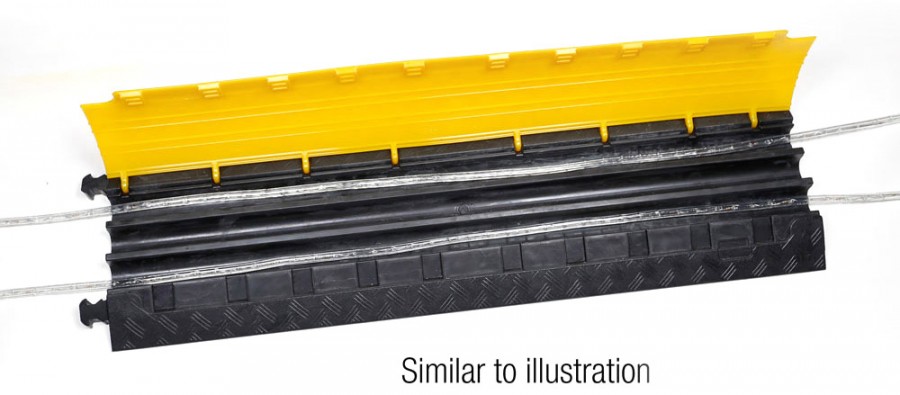

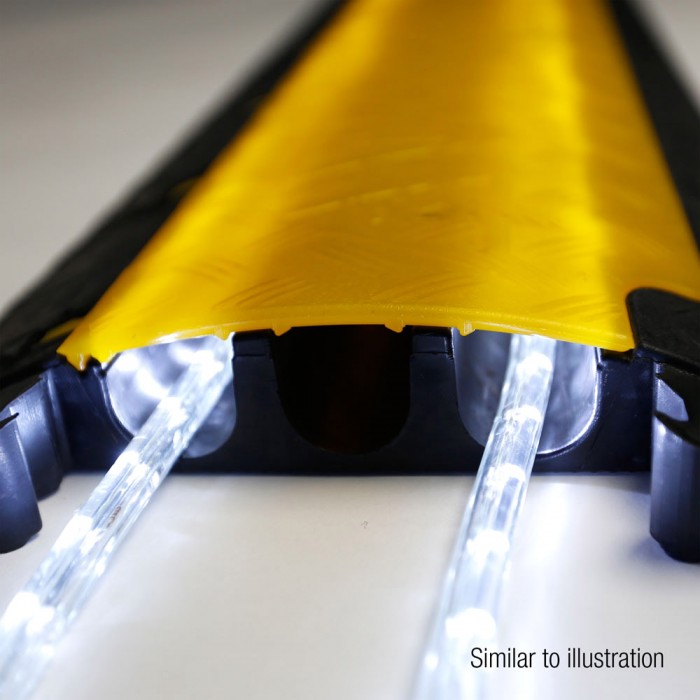

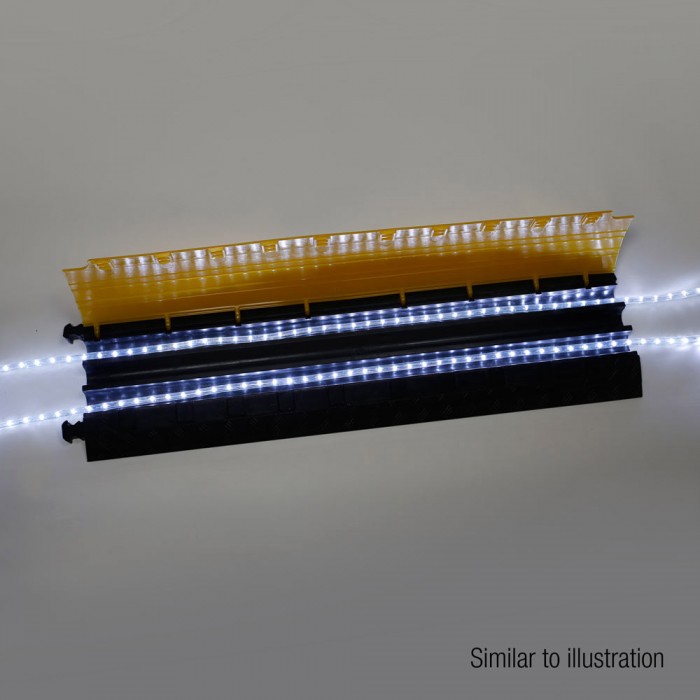

Defender LUX cable crossovers can be used with commercially available light tubes. Light tubes with a so-called neon effect are particularly recommended since the individual LEDs are less visible and this provides particularly homogeneous lighting. For outdoor use, please take care to ensure the appropriate IP classification of the light tube. The use of LED strips and other unidirectional light-emitting products or fairy lights is not recommended.

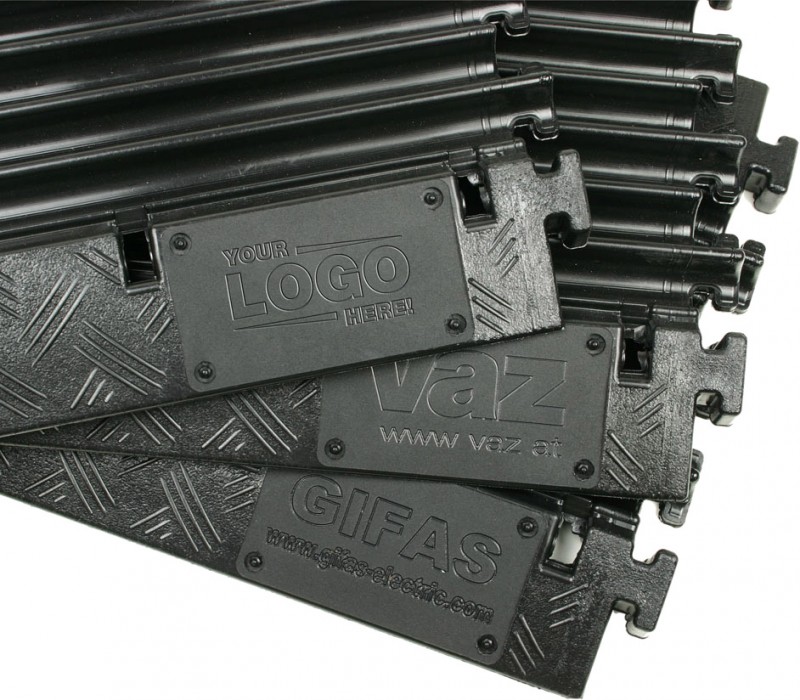

Label your cable crossovers! All Defender cable crossovers can be customised with your company logo from a minimum order of just 30 units per model. The format requirements are available in the download area. Don’t hesitate to contact us.
Technical data:| Product type: | Cable Protectors |
| Type: | 2 Channels |
| Length: | 700 mm |
| Width: | 783 mm |
| Height: | 139 mm |
| Channels: | 4 |
| Width channel 1: | 33 mm |
| Height channel 1: | 50 mm |
| Width channel 2: | 120 mm |
| Height channel 2: | 113 mm |
| Width channel 3: | 120 mm |
| Height channel 3: | 113 mm |
| Width channel 4: | 33 mm |
| Height channel 4: | 50 mm |
| Material: | Polyurethane |
| Max load: | approx. 5t on a surface area of 20 x 20 cm |
| Chemical resistance: | Acid-resistant |
| Chemical resistance: | Oil-resistant |
| Chemical resistance: | Petrol-resistant |
| Chemical resistance: | Short-term contact with solvents |
| Hardness range: | 88 Shore |
| Fire protection class: | B2 |
| Temperature range: | - 30 to 60 °C |
| Weight: | 31,9 kg |
| Special feature: | DEKRA-certified |
