Preview: Defender Midi 5 Kabelbrücke 5 Kanäle

€199.13 *

incl. tax, free shipping to Germany
[International shipping costs]

Availability:

Delivery time: 3-5 days

Delivery time: approx. 3-5 days

Item number: 500112905

EAN: 4049521015496

MPN: 85300

Cable Protector 5-channel Heavy-duty,non-slip all-round cable protector made of black,... more

Back to the overview

All information about the product:

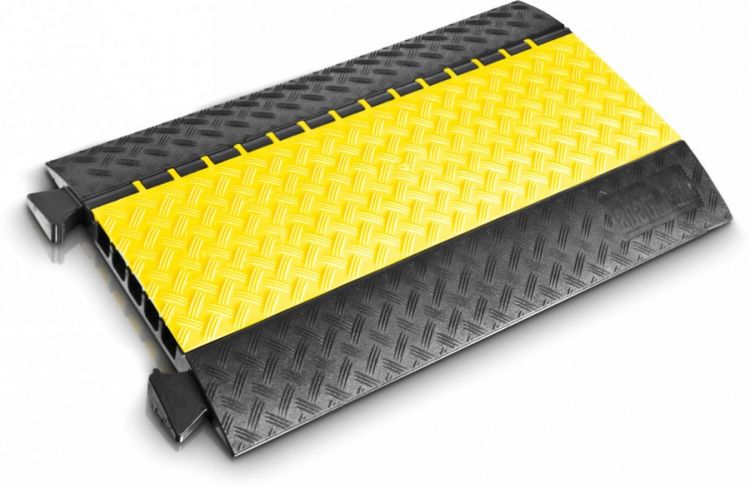

"Defender MIDI 5 - Cable Protector 5-channel"

Cable Protector 5-channel

Heavy-duty,non-slip all-round cable protector made of black, recyclable polyurethane with built-in carrying handles
Yellow polyurethane lid with high warning effect and secure closure
Patented, self-cleaning lid hinge
5 channels 34 x 36 mm
Load bearing capacity approx. 5 t / 20 x 20 cm
Fire resistance class B2 (DIN 4102), DEKRA-certified (DIN 31000, EN 61537)
Resistant to oil, acid, petrol and short-term contact with solvents
Dimensions 87 x 53.8 x 5.5 cm; Weight 13.5 kg
Reliable protection for cables and personnel for indoor and outdoor use
Also available with pre-drilled mounting holes with a blue lid (Item No. 85300BLUE)
Curves and end ramps for flexible cable protection are available as accessories

5 Medium Channels - The Solution for Nearly Anything

The Defender® MIDI cable protection system has been designed for maximum routing versatility and secure crossing. Featuring a low profile, 5 t per 20 x 20 cm load capacity, integrated connectors and handles the straight ramp, 45° curve and end ramps are easily linked to form a continuous cable guard while five 34 x 36 mm channels allow for individual sound, lighting and power line arrangement. Defender® MIDI cable protectors are ideal for a multitude of usages such as heavy wheeled traffic, construction sites, warehouses, carnivals, fairs, trade shows, exhibitions, shopping malls, broadcasting and music events.

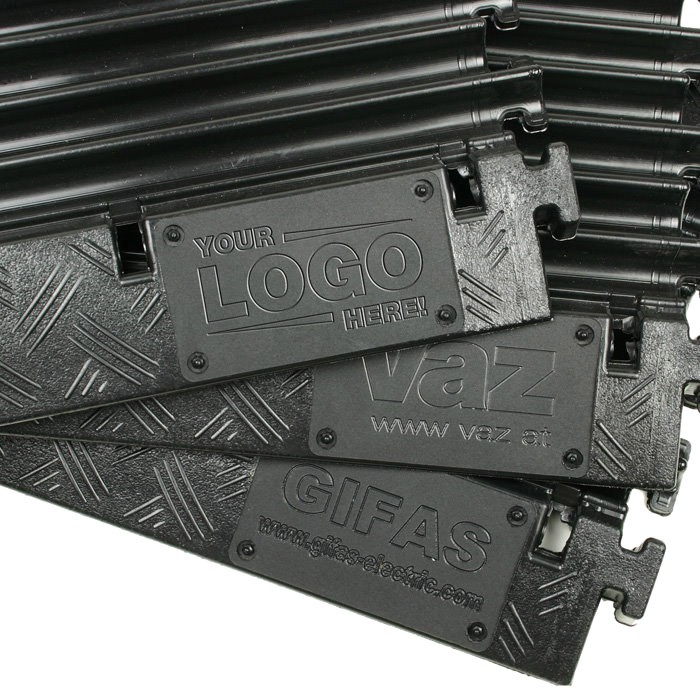

Label your cable crossovers! Customise the Defender cable crossovers with your company logo for orders ex 30 pieces for each product. You will find the format requirements in the download pool above the text. Feel free to contact us for more information.

Technical data:

Product type:	Cable Protectors
Type:	5 Channels
Length:	870 mm
Height:	55 mm
Width:	538 mm
Channels:	5
Width channel 1:	34 mm
Height channel 1:	36 mm
Width channel 2:	34 mm
Height channel 2:	36 mm
Width channel 3:	34 mm
Height channel 3:	36 mm
Width channel 4:	34 mm
Height channel 4:	36 mm
Width channel 5:	34 mm
Height channel 5:	36 mm
Material:	Polyurethane
Max load:	approx. 5t on a surface area of 20 x 20 cm
Chemical resistance:	Acid-resistant
Chemical resistance:	Oil-resistant
Chemical resistance:	Petrol-resistant
Chemical resistance:	Short-term contact with solvents
Hardness range:	88 Shore ± 4 A Shore
Fire protection class:	B2
Temperature range:	-30°C to 60°C °C
Weight:	13,4 kg
Special feature:	DEKRA-certified
