Preview: Defender Mini Kabelbrücke 3 Kanäle

€143.76 *

incl. tax, free shipping to Germany
[International shipping costs]

Availability:

Delivery time: 3-5 days

Delivery time: approx. 3-5 days

Item number: 500112890

EAN: 4049521015465

Cable Protector 3-Channel Compact, non-slip cable protector made of black, recyclable... more

Back to the overview

All information about the product:

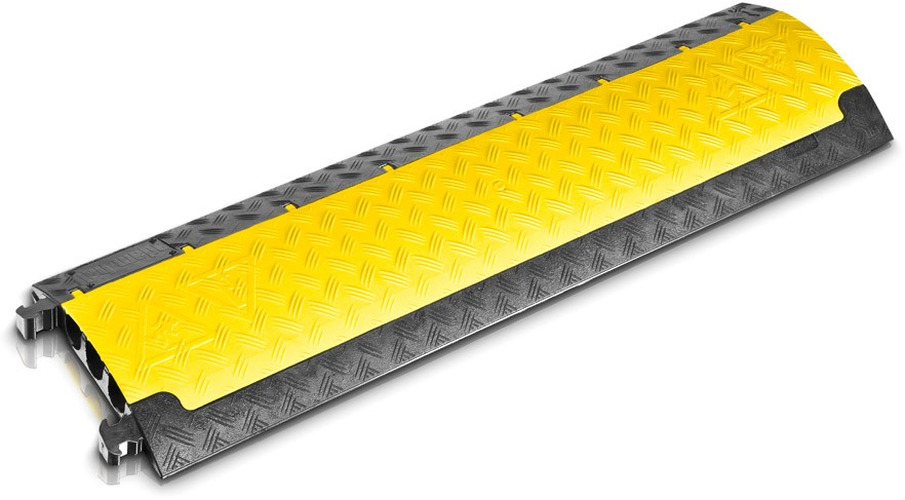

"Defender MINI - Cable Protector 3-Channel"

Cable Protector 3-Channel

Compact, non-slip cable protector made of black, recyclable polyurethane
Yellow polyurethane lid with high warning effect and secure closure (also available with black lid, Item No. 85200BLK)
Patented, self-cleaning lid hinge
3 channels: 1 channel 35 x 35 mm, 2 channels 35 x 30 mm
Load bearing capacity approx. 2t / 20 x 20 cm
Fire resistance class E according to DIN EN 13501-1 (B-s1 applied for)
Resistant to oil, acid, petrol and short-term contact with solvents
Dimensions 105 x 29 x 5 cm; Weight 6 kg
Reliable protection for cables and personnel for indoor and outdoor use
Not suitable for vehicular traffic
End ramps for secure cable inlet and exit as accessories

3 small cable channels – light and robust

The Defender® MINI cable crossovers are also available with either a black or yellow lid and are suitable for indoor and outdoor use. The flat, compact, 3-channel cable crossover with integrated connector plugs and non-slip base provides optimum support on a wide variety of floors. Separately available end ramps (male/female) ensure safe and orderly insertion and removal of cables. Defender MINI cable crossovers withstand a load of 2 tonnes on an area of 20 x 20 cm, so they are suitable for light vehicles, trolleys and pedestrians. Defender MINI cable crossovers can be used at carnival events, trade shows, exhibitions, shopping centres and storage facilities as well as in theatres, studios and TV stations. Not suitable for road traffic.

Label your cable crossovers! All Defender cable crossovers can be customised with your company logo from a minimum order of just 30 units per model. The format requirements are available in the download area. Don’t hesitate to contact us.

Technical data:

Product type:	Cable Protectors
Type:	3 Channels
Width:	290 mm
Height:	50 mm
Length:	1005 mm
Channels:	3
Width channel 1:	35 mm
Height channel 1:	30 mm
Width channel 2:	35 mm
Height channel 2:	35 mm
Width channel 3:	35 mm
Height channel 3:	30 mm
Material:	Polyurethane
Max load:	approx. 2 t on a surface area of 20 x 20 cm
Chemical resistance:	Acid-resistant
Chemical resistance:	Oil-resistant
Chemical resistance:	Petrol-resistant
Chemical resistance:	Short-term contact with solvents
Hardness range:	88 Shore ± 4 Shore
Fire protection class:	Class E in accordance with DIN EN 13501-1 (B-s1 pending)
Temperature range:	-30 to +60 °C
Weight:	5,9 kg
Special feature:	DEKRA-certified
