Defender NANO - Cable Protector 6-channel

Preview: Defender Nano Kabelbrücke 6 Kanäle

€110.55 *

incl. tax, free shipping to Germany
[International shipping costs]

Availability:

Delivery time: 3-5 days

Delivery time: approx. 3-5 days

Item number: 500112915

EAN: 4049521073410

Cable Protector 6-channel Especially flat, non-slip cable protector made of black, recyclable... more

Back to the overview

All information about the product:

"Defender NANO - Cable Protector 6-channel"

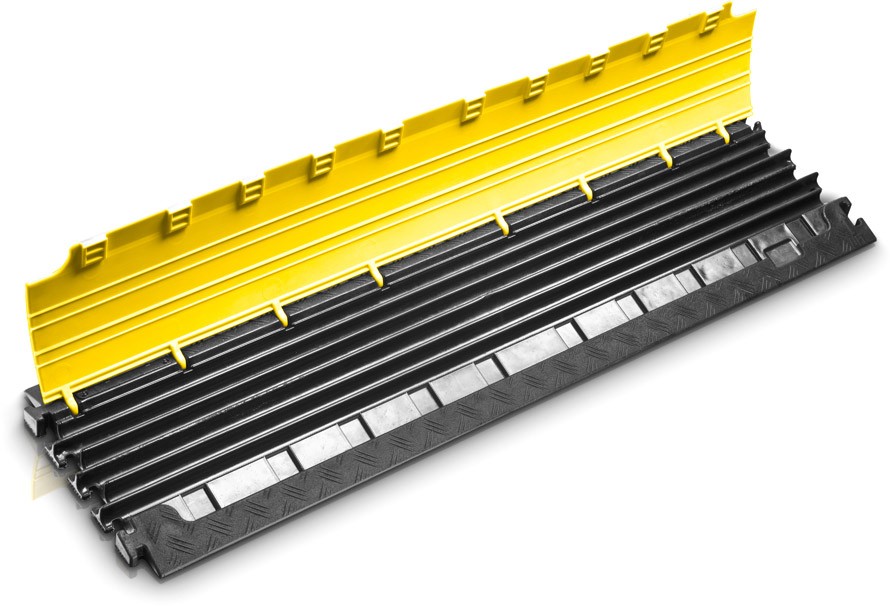

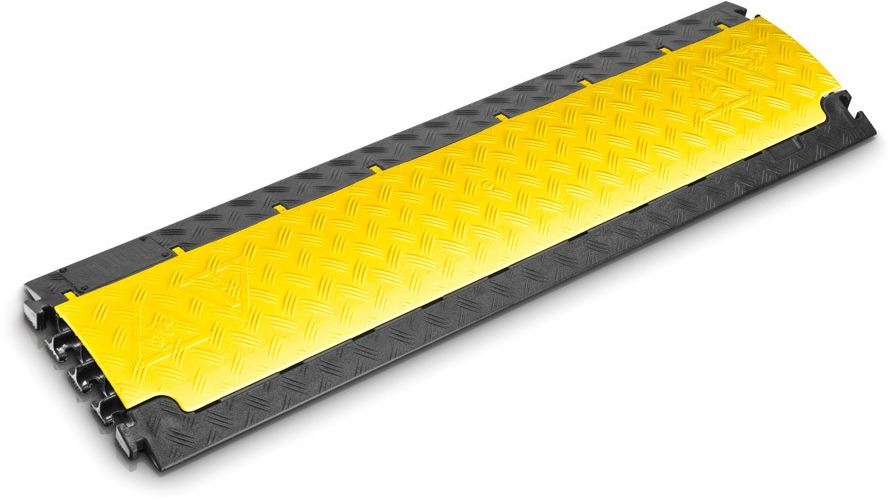

Cable Protector 6-channel

Especially flat, non-slip cable protector made of black, recyclable polyurethane, wheelchair-compatable
Yellow polyurethane lid with high warning effect and secure closure (also available with black lid, Item No. 85150BLK)
Patented, self-cleaning lid hinge
6 channels 17 x 18 mm
Load bearing capacity approx. 2t / 20 x 20 cm
Fire resistance class B2 (DIN 4102), DEKRA-certified (DIN 31000, EN 61537)
Resistant to oil, acid, petrol and short-term contact with solvents
Dimensions 110 x 28.5 x 3.2 cm; Weight 4.8 kg
Reliable protection for cables and personnel for indoor and outdoor use
Not suitable for vehicular traffic
End ramps for secure cable inlet and exit as accessories

6 narrow cable channels – discreet cable protection for indoor and outdoor use

Defender® NANO cable crossovers are particularly flat and easy to cross with a wheelchair. They are suitable for a wide range of indoor and outdoor applications and are available with either a yellow or black lid. These cable crossovers boast 6 cable channels for neat, orderly cable routing, T-connectors and a load capacity of 2 tonnes on an area of 20 x 20 cm; besides pedestrian traffic, they also take light-duty vehicles, trolleys and – thanks to their flat profile – even forklift and pallet trucks. Separately available end ramps (male/female) ensure safe insertion and removal of cables. Defender NANO cable crossovers can be used at carnival events, trade shows, exhibitions, shopping centres and storage facilities as well as in theatres, studios and TV stations. Not suitable for road traffic.

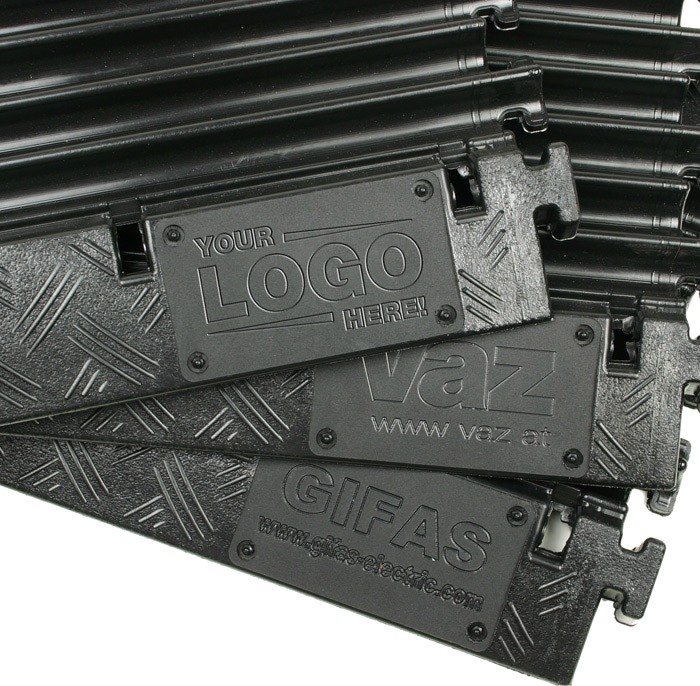

Label your cable crossovers! All Defender cable crossovers can be customised with your company logo from a minimum order of just 30 units per model. The format requirements are available in the download area. Don’t hesitate to contact us.

Technical data:

Product type:	Cable Protectors
Type:	6 Channels
Length:	1010 mm
Width:	285 mm
Height:	32 mm
Channels:	6
Width channel 1:	17 mm
Height channel 1:	18 mm
Width channel 2:	17 mm
Height channel 2:	18 mm
Width channel 3:	17 mm
Height channel 3:	19 mm
Width channel 4:	17 mm
Height channel 4:	19 mm
Width channel 5:	17 mm
Height channel 5:	18 mm
Width channel 6:	17 mm
Height channel 6:	18 mm
Material:	Polyurethane
Max load:	ca. 2t on a surface area of 20 x 20 cm
Chemical resistance:	Acid-resistant
Chemical resistance:	Oil-resistant
Chemical resistance:	Petrol-resistant
Chemical resistance:	Short-term contact with solvents
Hardness range:	88 ± 4 Shore
Fire protection class:	B2
Temperature range:	-30 to + 60 °C
Weight:	4,7 kg
Special feature:	DEKRA-certified
