PCE wall distributor - SÖLDEN BV 2x32A/ 2x16A/ 4xSSDl

€609.00 *

incl. tax, free shipping to Germany
[International shipping costs]

Availability:

Currently not available;
Article is coming soon

Currently not available

Item number: 110822160

EAN: 4250595865140

MPN: 9028378

PCE wall distributor - SÖLDEN BV 2x32A/ 2x16A/ 4xSSDl Socket combination according to EN... more

All information about the product:

"PCE wall distributor - SÖLDEN BV 2x32A/ 2x16A/ 4xSSDl"

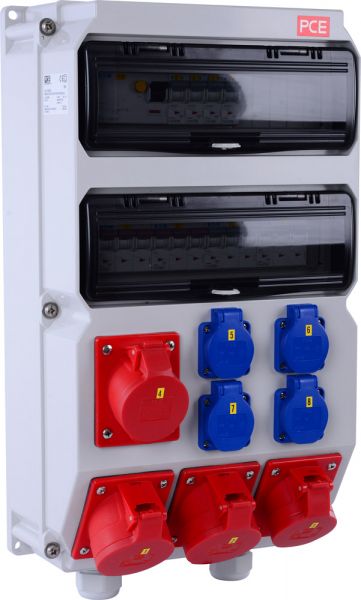

PCE wall distributor - SÖLDEN BV 2x32A/ 2x16A/ 4xSSDl

Socket combination according to EN 61439-3

Enclosure made of high-quality PC/ABS; compact design

Automatic unit with 6-9 modules each behind transparent protective flap

Enclosure dimensions: 520x297x165 mm HxWxD

Protection: IP54

2xM32 gland bottom (cable diam. 18-25mm PG29) grey

2xCEE socket 32A 5p 400V fused over 2xLS 32A 3p C2x CEE 16A (400V 5P)

2xCEE socket outlet 16A 5p 400V fused via 2xLS 16A 3p C

4xSK socket outlet 16A 250V IP54 fused via 4xLS 16A 1p C1x FI 63A/4/0.03A (TYPE A 63AT)

2x LS 32A 3p-C

1xFI 63A/4/0.03A (TYP A 63AT) via all outputs

Distributor wired to HKL terminal (max.5x25qmm/5x16qmmYF!)
