Look Orka deLuxe fog machine 9000 watts

Orka deLuxe - 9 kW power fogger with fan in case

The Orka deLuxe is probably the most powerful series-produced fog machine on the market. With an enormous heat output of 9000 watts and an integrated high-performance fan, it is ideal for large events, concerts, amusement parks and fire department and disaster control exercises. Thanks to its massive power and precise control options, the Orka deLuxe produces huge amounts of fog in the shortest possible time and achieves impressive output ranges.

Highlights

• Powerful fog machine: heat output of 9000 watts for enormous amounts of fog.

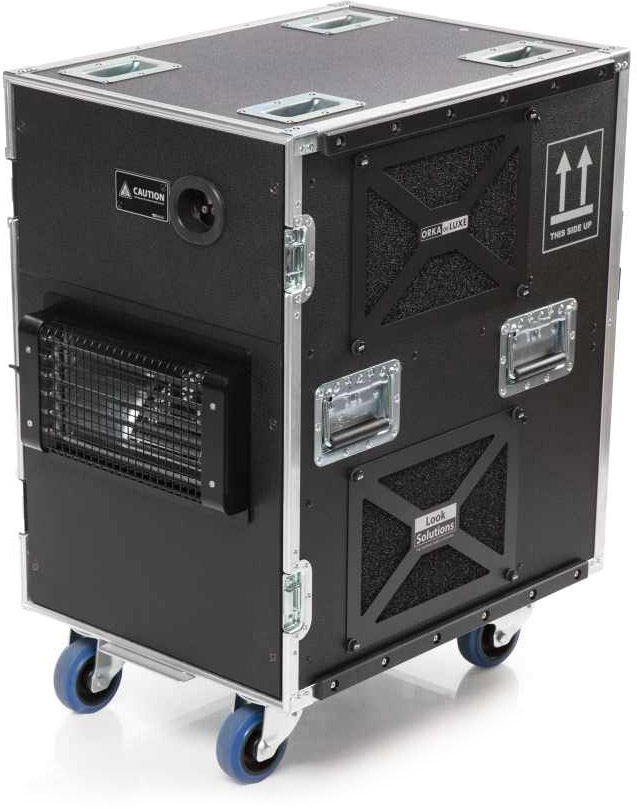

• Integrated high-performance fan: Increases the discharge range and ensures even distribution of the mist.
• Flexible control system: DMX 512 as standard, RDM support and stand-alone operation.
• Precise control: fog and air volume adjustable in 99 stages.
• Large fluid tank: 20-liter flat tank for long operating times without refilling.

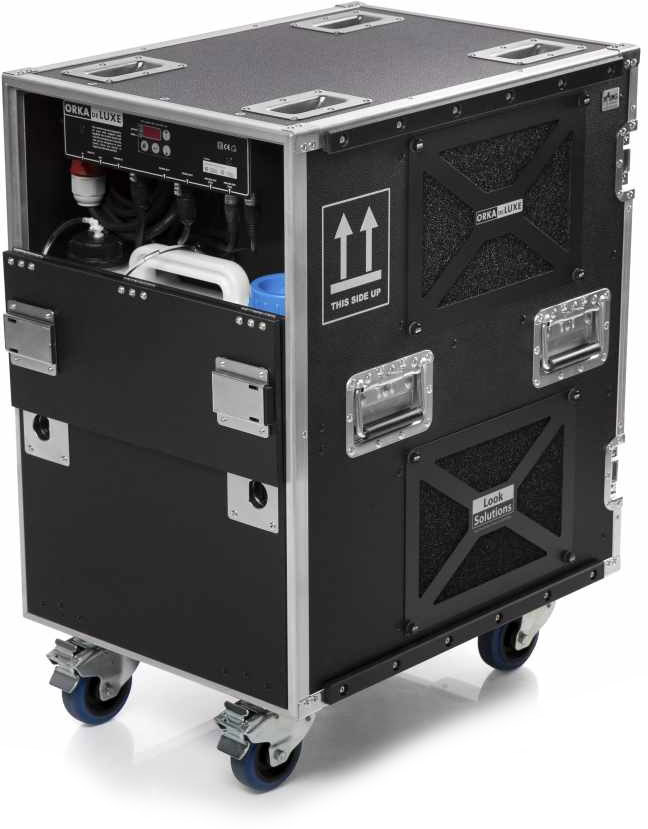

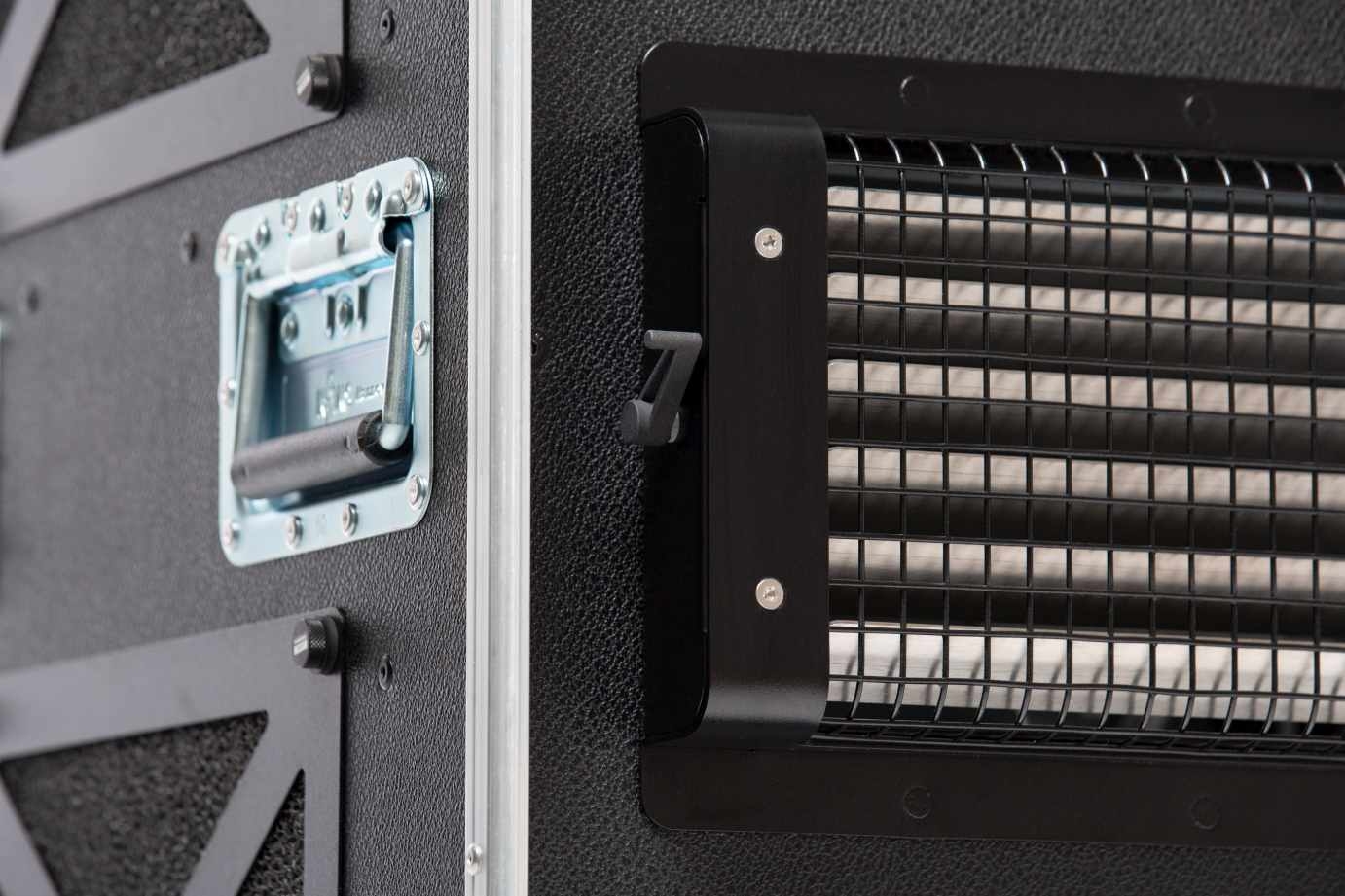

• Robust construction: Flight case protects against dirt and confetti; side filters can be changed quickly.
• Versatile applications: Perfect for large halls, stadiums and outdoor events.

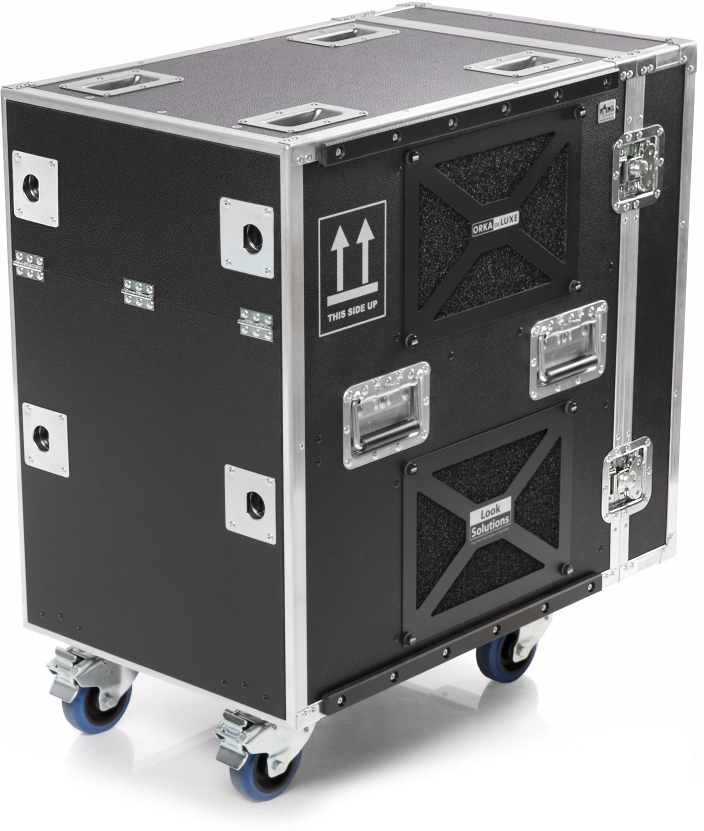

• User-friendly design: automatic rollers and stacking recesses for easy transportation.
• Made in Germany: Highest quality and reliable service.

Technical data - Fog machine

• Operating principle: Vaporizer fogger
• Heat output: 9000 watts
• Supply voltage: 400 V / 50 Hz / 16 A CEE
• Heating time: approx. 15 minutes
• Fluid consumption:
• 500 ml/min. at maximum output
• 145 ml/min. with continuous mist
• Fluid tank capacity: 20 liters
• Fog output: Adjustable in 99 levels
• Ejection range: Approx. 30 meters
• Fog time:
• Approx. 2.5 minutes at maximum output
• Continuous fog with <60% output
• Temperature control: Microprocessor controlled
• Overheating protection: heating block/thermostat, pump/temperature switch

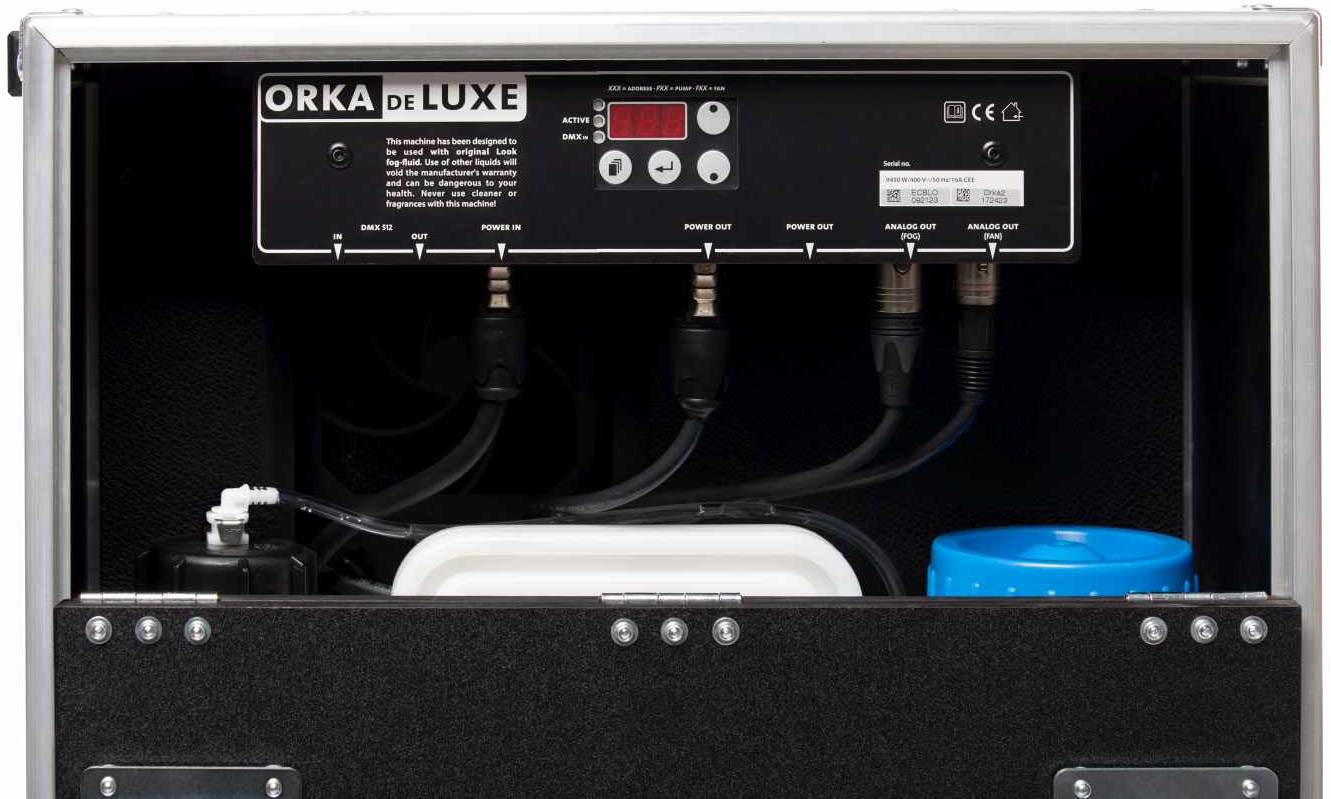

• Connections: DMX 512, stand-alone
• Dimensions (L x W x H): 77 x 49.5 x 83.5 cm
• Weight:
• Approx. 77 kg incl. case and empty canister
• Approx. 99 kg with filling

Technical data - Fan

• Functional principle: Radial blower
• Voltage: 230 V / 50/60 Hz
• Air flow rate: 2020 m³/h
• Power: 450 watts
• Volume flow: 1605 m³/h
• Current consumption: 2.8 A

Included in the scope of delivery

• Look Orka deLuxe fog machine
• Flightcase with integrated fan
• 20 liter flat canister for fluid
• Operating instructions
