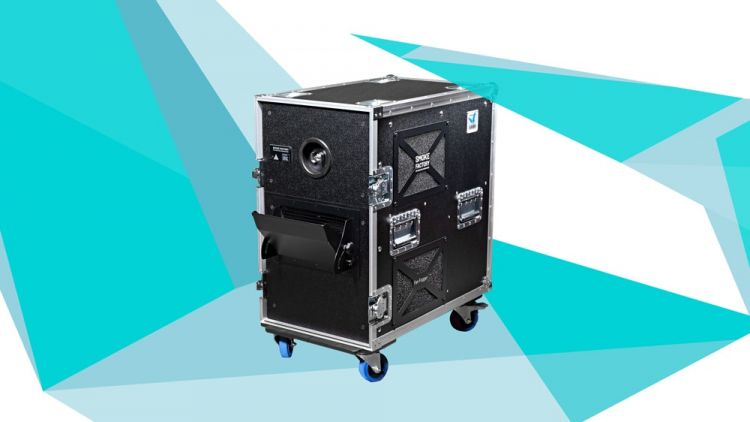

Smoke Factory Fan Fogger EC 1.3 230V/1300W

Smoke Factory Fan Fogger EC 1.3 - Powerful combination of fog and wind machine

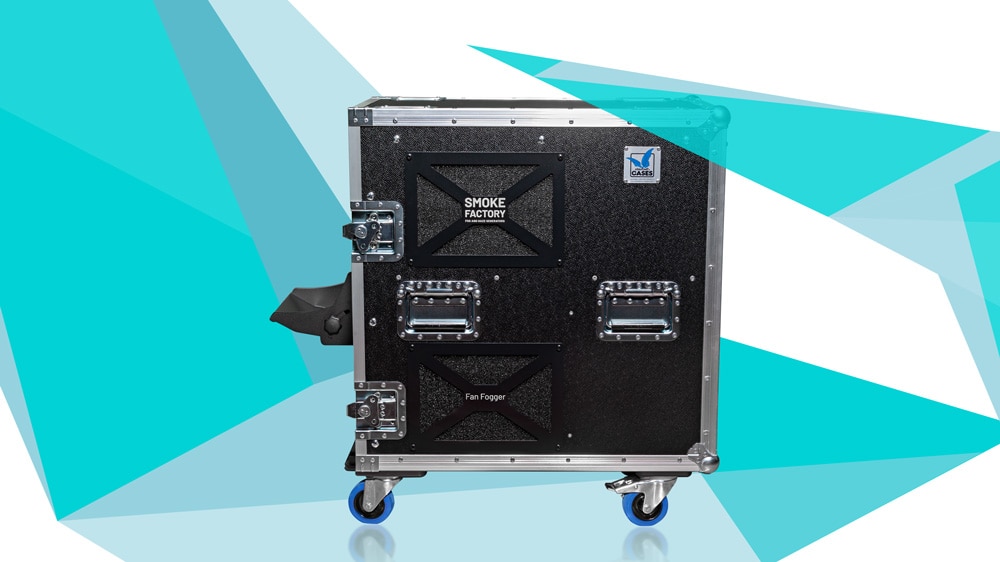

The Smoke Factory Fan Fogger EC 1.3 is a powerful combination of fog and wind machine, developed for open-air stages, stadiums and large laser shows. With a 1300 watt fog machine and a 450 watt blower, impressive fog effects are achieved that can be distributed quickly and evenly on large stages. The device is fully installed in an Amptown case, making it ideal for touring.

Highlights

• Powerful combination:
  • 1300 watt fog machine for dense clouds of fog.
  • 450 watt fan for precise distribution.
• Individual regulation:
  • Fog and wind volume can be controlled separately for versatile effects, from dense clouds of fog to outdoor haze.
  • High-quality air baffle for controlling the fog direction.
• Robust and suitable for touring:
  • Pre-installed in an Amptown case for demanding use.
  • Space for one 25-liter canister or three 5-liter canisters directly in the appliance.
  • CBA lid: Hinged and fully retractable in the case.
• User-friendly control:
  • Control via DMX 512, analog 0-10V, stand-alone mode or with timer.
  • Intuitive operation and fast operational readiness.
• Efficient energy utilization: High mist output with minimal energy consumption.
• Durable quality: Made in Germany with robust workmanship and high reliability.
• Quick fluid change: ready for use within a few seconds thanks to the quick-release system.

Technical data

• Performance:
  • 1300 watt fog machine
  • 450 watt fan
• Voltage: 240 V/50 Hz
• Fog time:
  • Approx. 30 seconds at 100 % output.
  • Continuous fog with < 50 % output.
• Heating time: approx. 7 minutes
• Fluid consumption:
  • 120 ml/min (max. output)
  • 35 ml/min (continuous mist)
• Control options:
  • Analog 0-10V (cable remote control or radio remote control available as accessories)
  • DMX 512, stand-alone mode, timer (integrated)
• Weight and dimensions:
  • Weight: 71 kg
  • Dimensions (L x W x H): 93.7 x 46.8 x 87 cm

Included in the scope of delivery

• Smoke Factory Fan Fogger EC 1.3
• Truecon connection cable
• Operating instructions
