Look CRYO-FOG floor fog machine Low Pressure

Look Cryo-Fog Low Pressure - Powerful floor fog machine

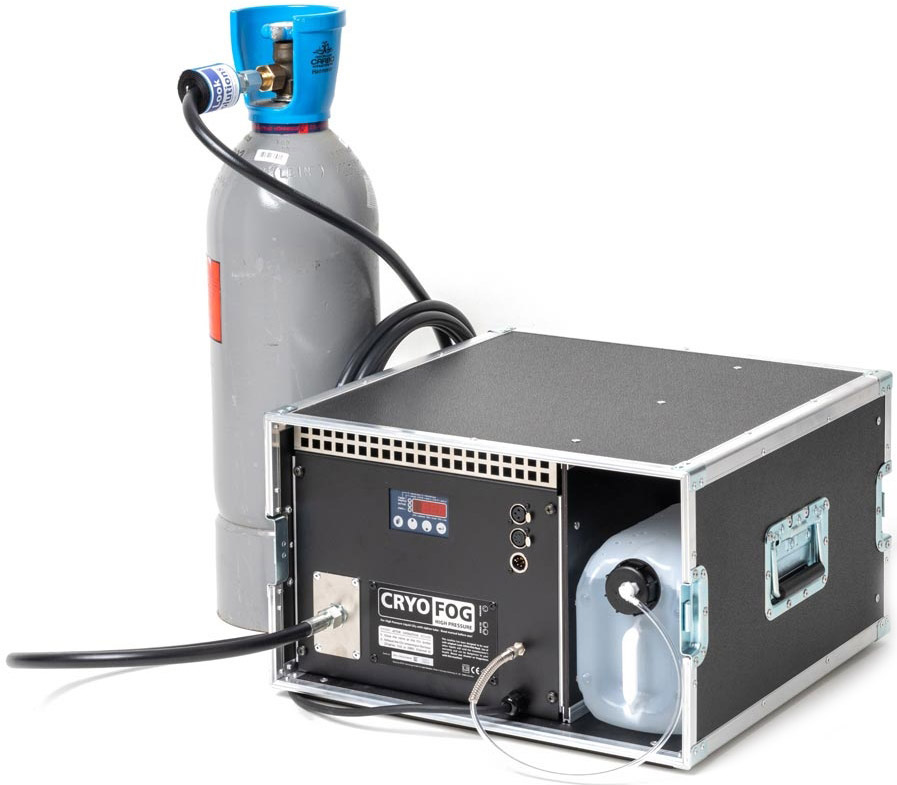

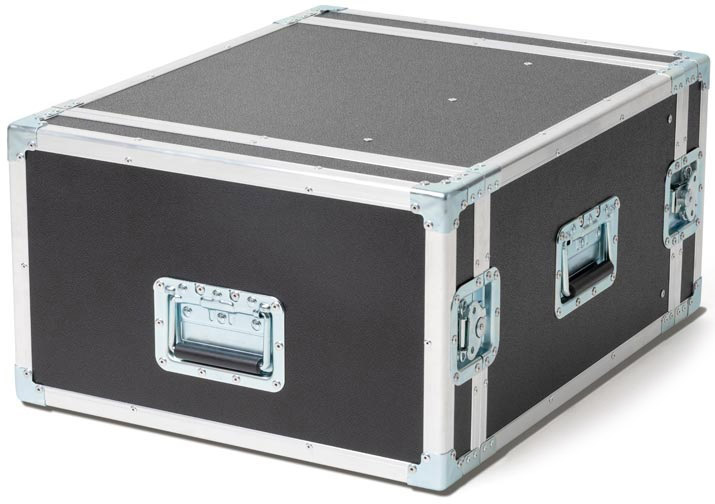

The Cryo-Fog Low Pressure is a sophisticated floor fog machine with an output of 2300 watts, which has been specially developed for impressive fog effects on the floor. With an integrated fog machine, fan and cooling chamber in a compact flight case, it offers maximum flexibility and quality for professional applications. The area in the flight case also allows the easy insertion of a 5-liter canister of fog fluid.

Highlights

• Compact design: fog machine, fan and cooling chamber in a robust flight case.
• Precise control: fog quantity adjustable in 1% increments, DMX and analog controllable.
• High flexibility: pump, fan and CO2 valve can be set separately via DMX.
• Dual use: Can also be used as a normal fogger.
• Automatic control: Start of the floor fogging process only when the cooling temperature is reached.
• Simple operation: Intuitive membrane keypad with clear menu navigation.
• Reliable performance: Powerful output with continuous mist option and quick-out quick coupling for easy canister replacement.
• Robust and efficient: Suitable for operation with high-pressure CO2 cylinders with riser pipe.
• Made in Germany: High-quality workmanship and reliable service.

Technical data

• Functional principle: Vaporizer fogger with CO2 cooling system
• Heat output: 2300 watts (at 230 V), 1700 watts (at 120 V)
• Supply voltage: 230 V / 50 Hz, 120 V / 60 Hz
• Heating time: approx. 7 minutes
• Fluid consumption:
  • 100 ml/min. at maximum output
  • 40 ml/min. at 50% output
• Fluid tank capacity: 5 liters
• Fog output: Adjustable in 99 levels
• Fog time:
  • 100% output:
  • Extended mode: approx. 55 seconds
  • Impulse mode: approx. 22 seconds
  • Continuous fog with over 30% output
• Temperature control: Microprocessor controlled
• Overheating protection: heating block/thermostat, pump/temperature switch
• Connections: DMX 512, 0 - 10 V analog

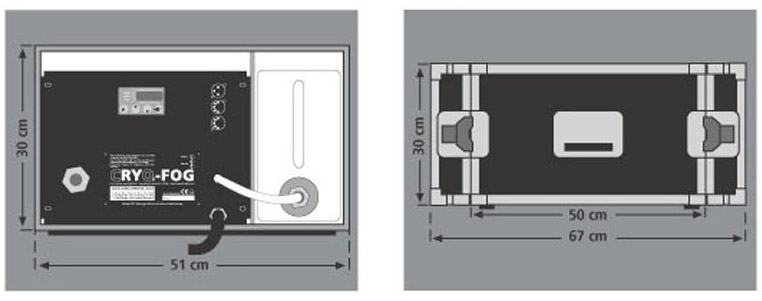

• Dimensions (L x W x H): 67 x 51 x 30 cm
• Weight: 33 kg incl. canister

Included in the scope of delivery

• Cryo-Fog Low Pressure floor fog machine
• Truecon connection cable
• Connection hose for CO2 bottle
• 5-liter canister of Cryo-Fog-Fluid
