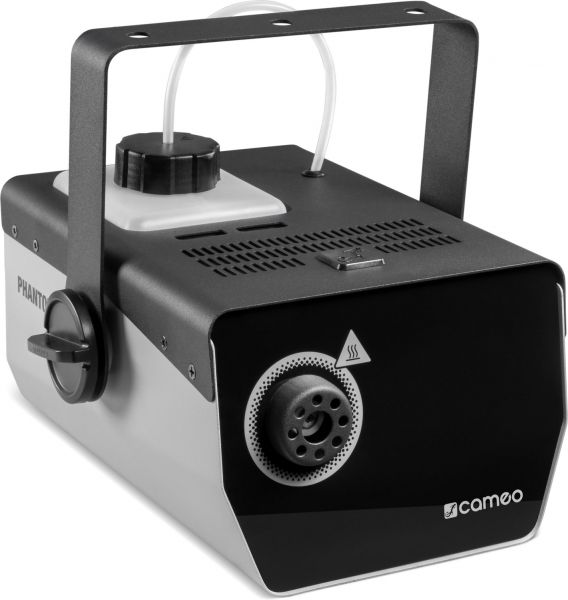

Cameo PHANTOM F3 - Fog Machine with 950 W Heating Output and Internally Illuminated Fluid Tank
- Highly efficient heating element - 950 W
- Illuminated 0.8 litre tank with level indicator
- Up to 240 m³/min output volume
- Range of fog output approx. 4 m
- LED operational status indicator lights (ready/heating)
- Cable and wireless remote included
- Works with standard water-based fog fluids
- Removable fluid tank for easier refilling
- Built-in overheating protection
- Even fog production at all intensity levels
Fantastic event effects need fog to be available at short notice; this fog machine meets that requirement. It is particularly suitable for rental firms, live events, clubs and musicians. The robust steel housing allows it to be used under tougher conditions and the mounting bracket can be used for either stationary fixing or as a carry handle. This fog machine boasts a rapid response time to guarantee its continuous operational readiness. The activation of the pump and heating coil is optimally attuned for fast fog emission. This is achieved through the use of smart software that precisely controls the interaction of the internal components. This fine tuning between the heating element and pump ensures even fog production at all intensity levels.
Radio and cable remote control also allow fog emission to be remotely activated and deactivated. It runs on standard, water-based fog fluids (such as Cameo DJ Fluid), making it friendly to both the environment and production budgets. The removable fluid tank makes refilling easier. A great feature for the operator is the fluid tank's internal illumination, which allows monitoring of the fluid level even in the dark. The built-in overheating protection extends the device's durability and increases operational safety. The integrated cable eyelet for attaching a safety cable makes for easy overhead and eye-level installations compliant with the relevant safety precautions.
Technical data:Product type: | Fog Machine |
Type: | Fog Machine |
Power: | 950 W |
Output volume: | ca. 240 m³/min |
Range of fog output: | ca. 4 m |
Warm-up time: | approx. 3 min |
Fog duration: | ca. 14 s |
Reheating time: | approx. 8 sec. |
Fluid tank capacity: | 0.8 l |
Fluid Consumption: | ca. 40 ml/min |
Remote connection: | DIN 5-Pol male |
Remote cable length: | 4.3 m |
Remote functions: | Fog output on/off |
Controls: | Remote |
Indicators: | Ready/Heating LEDs |
Operating voltage: | 230 V AC, 50 Hz |
Fuse: | F5AL / 250 V |
Power consumption: | 970 W |
Power connector: | CEE 7/7 |
Power connector: | Fixed connection cable |
Ambient temperature ( in operation ): | 5 - 40 °C |
Relative Humidity: | |
Housing material: | Metal |
Cabinet colour: | Black |
Cabinet colour: | grey |
Width: | 190 mm |
Height: | 142 mm |
Depth: | 270 mm |
Accessories (included): | 4 rubber feet |
Accessories (included): | Cable remote |
Accessories (included): | canister |
Accessories (included): | Wireless remote control |
Weight: | 4,4 kg |
