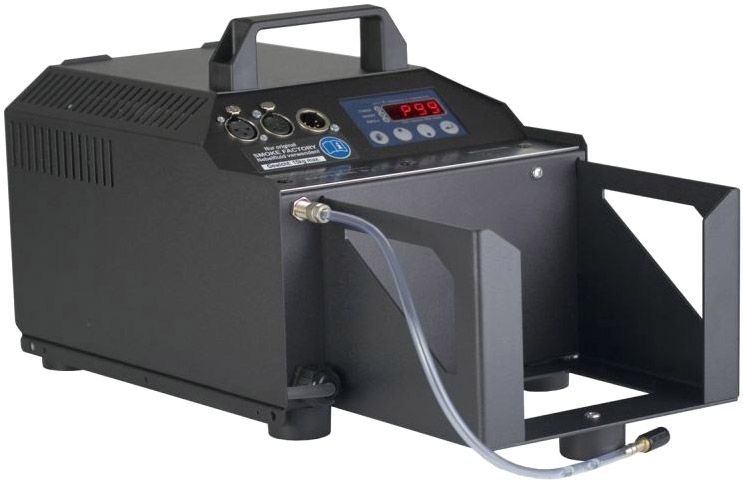

Smoke Factory Captain D.

The „classic“ fog generator with power, now with digital technology.

230V/1300W. Very high fog emission. Flow control between 1 % and 99 % by using Up-/Down-bottons. Radio remote control and cable remote optional. Continuous fogging possible with reduced output. Tube, tube connector and hanging set as options.

Features

• classic fog generator with power, now with digital technology
• 230V/1300W
• very high fog emission
• flow control between 1 and 99% by using up-/down-buttons
• DMX as standard
• radio remote control and cable remote optional
• continuous fogging possible with reduced output
• tube, tube connector and hanging set as options

Technical details

• Procedure: vaporizing fog generator
• Power requirement: 1300 Watt, 230-240 V/50 Hz (110 V-version also available)
• Weight (without fluid): 9 kg
• Dimensions (LxWxH): 45 x 23 x 23 cm
• Fluid bottle capacity: 5 litre
• Fluid consumption:
   - 120 ml/min. (max. output)
   - 35 ml/min. (continuous)
• Fog emission: between 1 % and 99 %
• Fog time:
   - 40 sec. (100 % output)
   - continuous (< 50 % output)
• Control choices: DMX 512, 0-10 V, timer, stand alone
• Warm up time: approximately 7 minutes
• Temperature control: controlled by microprocessor
• Overheating protection: Heating element w. thermostat, pump with temperature switch
• Ambient temperature: 5° C to 45° C
• Ambient humidity: max. 80 % rel. humidity, not condensing
