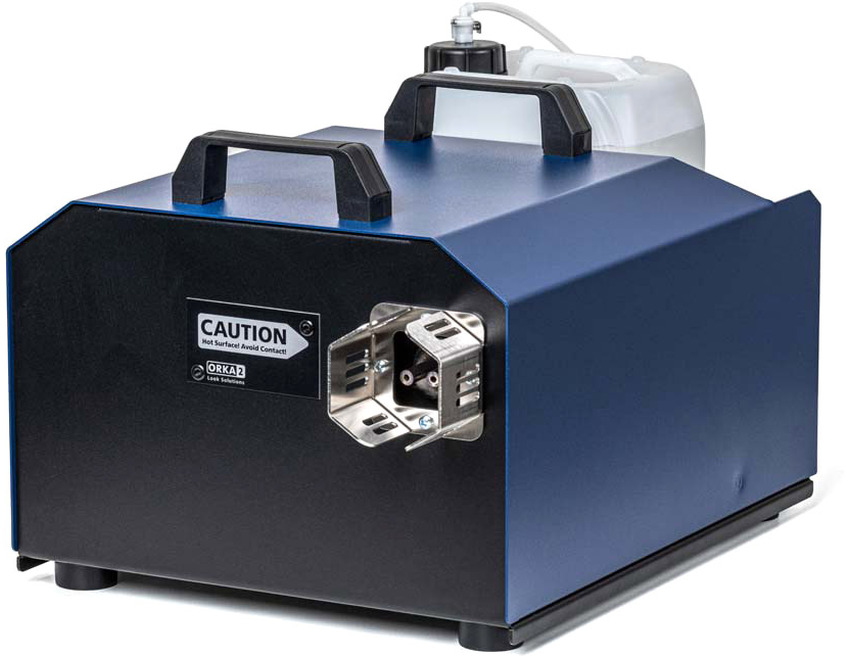

Look Orka power fog machine 9000W

Orka - Power fog machine with 9000 watts

The Orka is the most powerful series-produced fog machine on the market. With a heat output of 9000 watts, it delivers massive amounts of fog in the shortest possible time and is ideal for large stages, arenas, outdoor events and industrial applications. Thanks to its precise control options and robust design, the Orka offers maximum performance and reliability for professional applications.

Highlights

• Extremely powerful: heat output of 9000 watts for huge amounts of fog in the shortest possible time.
• Flexible control: DMX 512 as standard, analog (0-10 V) and stand-alone operation for maximum adaptability.
• Integrated timer: For time-controlled effects and continuous fog.
• Precise control: fog and air volume adjustable in 1% increments from 0-99%.
• Continuous fogging capability: Ideal for continuous effects in large productions.
• Fan connection: Connection for external fans up to 800 watts for better distribution of the mist.
• Robust design: High-quality workmanship and overheating protection for maximum safety.
• Made in Germany: quality and reliable service.

Technical data

• Operating principle: Vaporizer fogger
• Heating capacity:
• 9000 Watt (Europe)
• 8320 Watt (USA - 208 V)
• Supply voltage:
• 400 V / 50 Hz / 16 A CEE (Europe)
• 208 V / 60 Hz / 40 A (USA)
• Heating time: approx. 15 minutes
• Fluid consumption:
• 500 ml/min. at maximum output
• 145 ml/min. with continuous mist
• Fluid tank capacity: 5 liters
• Fog output: Adjustable in 99 levels
• Ejection distance: Max. 30 meters
• Fog time:
• At maximum output approx. 2 minutes
• With <50% output continuous mist
• Temperature control: Microprocessor controlled via dual sensor
• Overheating protection: heating block with thermostat, pump with temperature switch
• Connections:
• DMX 512
• 0-10 V analog
• Dimensions (L x W x H): 55 x 37 x 28 cm
• Weight: 35 kg incl. canister

Included in the scope of delivery

• Look Orka fog machine
• 5 liter canister Regular-Fog
• Operating instructions
