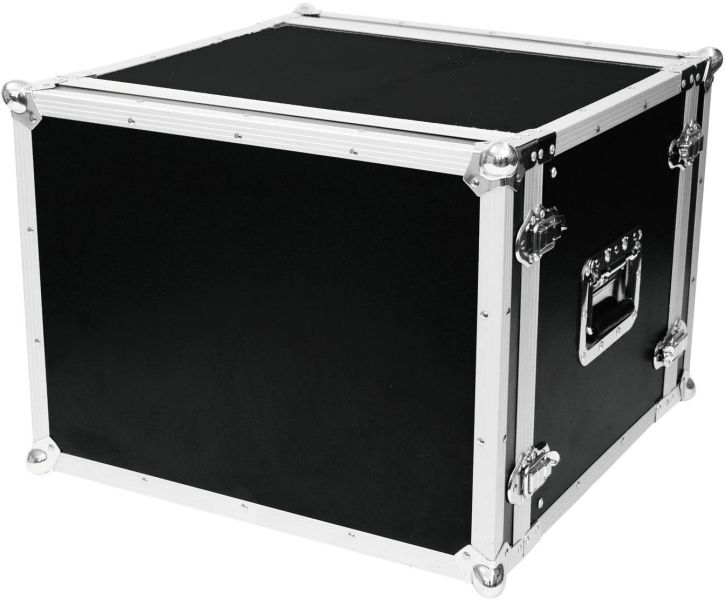

ROADINGER Effect Rack CO DD, 8U, 24cm deep, black

Flightcase for 483 mm unitsThe ROADINGER effect rack CO DD with 8 U and built-in rack rails is ideal for transporting your 483 mm control and effect units. The two removable lids (double door version) allow you to access your equipment quickly and easily. The high-quality workmanship with 7 mm wall thickness as well as the aluminium profile frame with rounded corners and three-legged, medium-sized steel ball corners ensure stability. The flight case also has eight snap locks with eyelets for locking and two chrome-plated case folding handles. The four large, steel-reinforced rubber feet provide the necessary standing security. The case can be loaded with a maximum of 25 kg.

Flightcase for 483 mm devices (19")

• Built-in rack rails
• High-quality workmanship with plywood multi-layer glued 7 mm, black, laminated
• 2 removable covers (double-Door-Version)
• Aluminum profile frames 22mm with rounded edges
• 2 hinged, chromium plated case handles
• 8 high-quality spring locks with shut-off function
• Rubber feet
• Available in different height units (1 U = 44 mm)
• With profile rails suitable for (19") approx. 48 cm units
• 8 U
• For further information about this product, please refer to the Data Sheet under "Downloads"

Maximum load:	25 kg
Removable covers:	2 pc/pcs
Aluminum profile frames:	22 mm
Case handles:	2 pc/pcs
Lock:	Spring lock: 8 pc/pcs with shut-off function
Transport aid:	Rubber feet
Material:	Plywood multi-layer glued, 7 mm
Color:	Black, laminated
Front panel width:	(19") approx. 48 cm
Mounting height:	Approx. 35.5 cm (8 U)
Mounting depth:	250 mm
Housing design:	8 U

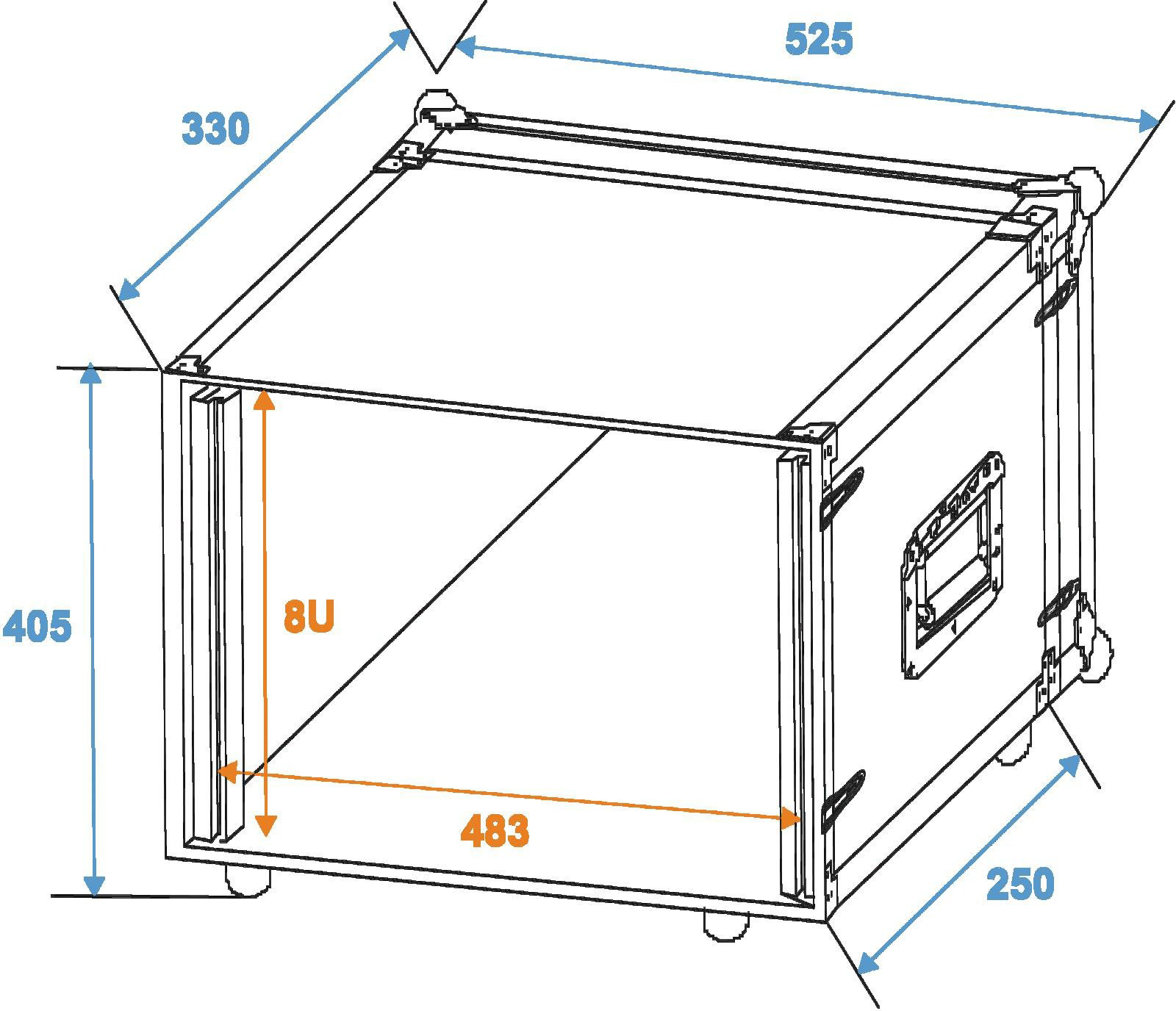

Dimensions:	Width: 52,5 cm Depth: 40 cm Height: 42 cm
Weight:	8,45 kg
