Look Time IT • Timer, mini stereo jack plug, accessory for Tiny FX, Tiny CX

TIMEit

The TIMEit is a processor-controlled timer with an illuminated display that offers precise and versatile control options for fog machines. Thanks to its robust black sheet steel housing and simple programming options, the TIMEit is the ideal addition for professional fog effects. Note: Not suitable for the Tiny S!

Highlights

• Flexible programming:
• Fog-free time (wait time) adjustable in minutes (0 - 99) and seconds (0 - 59).
• Fog time adjustable in minutes (0 - 99) and seconds (0 - 59).
• Fog output adjustable in percent (0 - 99).
• Fog output for the flash button (Flash) also in percent (0 - 99).
• Automatic control: Autostart function for automatically triggering the programmed settings when the fog machine is switched on.
• Clear displays:
• Illuminated display for easy reading of the programming.
• Mode display via LEDs.
• Simple connection: Connection to the fog machine via a short cable already fitted to the box.

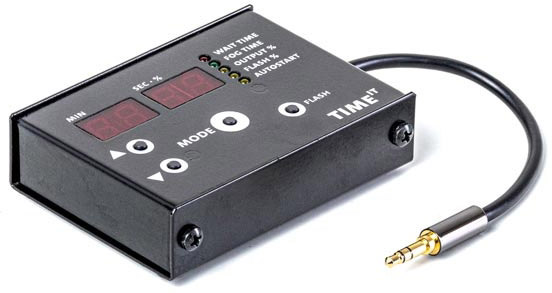

• Customizable plug options: Optionally available with 3-pin XLR plug or 3.5 mm mini stereo jack plug.
• Robust design: Black sheet steel housing for long-lasting use.

Technical data

• Functional principle: Timer for fog generators
• Setting options:
• Wait time: minutes (0 - 99), seconds (0 - 59)
• Fog time: minutes (0 - 99), seconds (0 - 59)
• Output: 0 - 99 %
• Flash: 0 - 99 %
• Autostart: Yes
• Display: Illuminated numerals and LEDs
• Connections: 3-pin XLR or 3.5 mm mini stereo jack plug
• Dimensions (L x W x H): 87 x 63 x 22 mm

Included in the scope of delivery

• TIMEit timer with mounted cable
• Operating instructions
