JBL Control 50

Loudspeaker system for restaurants, boutiques, offices and retail stores

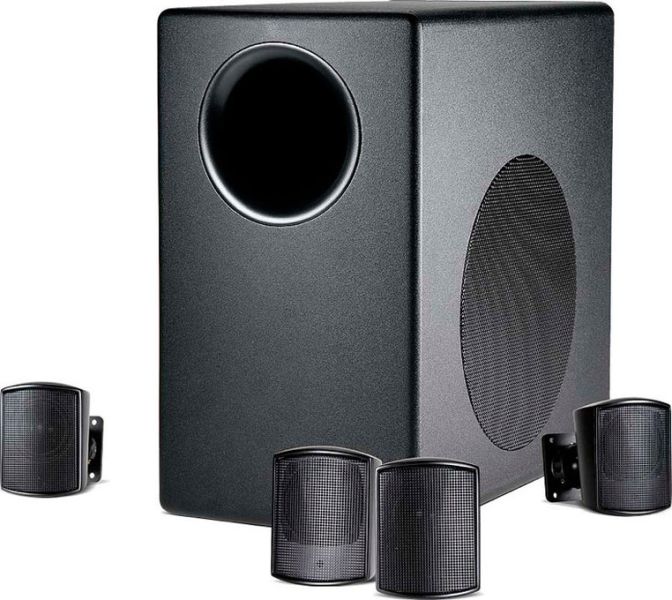

The JBL Control 50 Pack system consists of a JBL Control 50S/T subwoofer and four JBL Control 52 satellite speakers. This mono system is designed specifically for commercial use in restaurants, boutiques, offices and retail stores. The powerful and balanced sound is equally suitable for background music and announcements.

Due to the transformer in the Control 50S/T, the system can also be operated in 100 volt technology. Thus, even large cable distances can be bridged up to the subwoofer, the shorter path from the sub to the two or four satellite speakers is then wired with low impedance. The Control 50 system can also be perfectly combined with the identically equipped Control 40 and 42 ceiling speakers.

The integrated brackets, the compact dimensions and the discreet design allow a visually unobtrusive and acoustically precise positioning of the speakers. The subwoofer and satellite systems are available in white or black, depending on the intended use.

Features:

• Mono system from 4x satellites and 1x subwoofer
• Wall brackets included
• Available in black and white

Technical data:

Control 50S/T Sub

• Speaker: 8" woofer
• Frequency response: 32 - 200 Hz (-10 dB)
• Impedance: 100/70 volts and 8 O
• Max. Sound pressure: 121 dB SPL (peak)
• Outputs: 4x Sat (mono)
• Dimensions: 356 x 391 x 203 mm (WxDxH)
• Weight: 9 kg

Control 52 Sat

• Speaker: 2.5" full range chassis
• Frequency response: 140 Hz - 20 kHz (-10 dB)
• Beam angle: 150°x150
• Impedance: 16 O
• Dimensions: 115 x 84 x 96 mm (WxDxH)
• Weight: 0.7 kg
