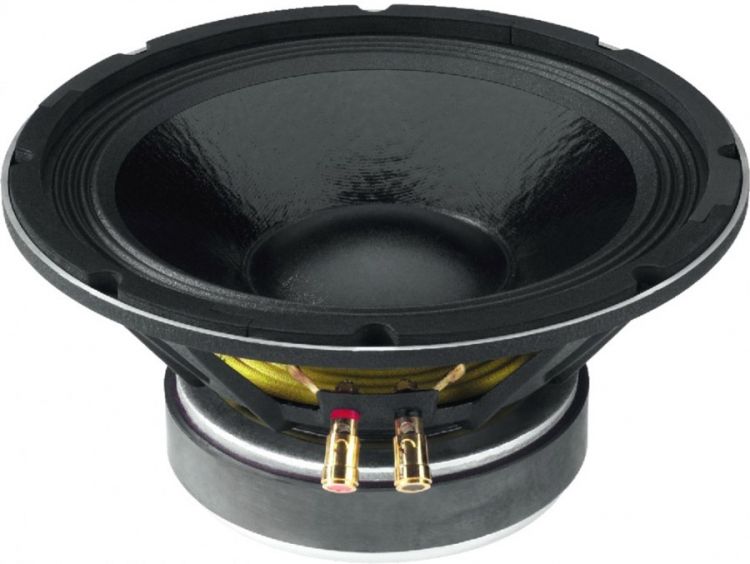

MONACOR SP-10A/302PA PA bass-midrange speaker, 300 W, 8 O
€156.00 *
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
Item number: 250106365
EAN: 4007754191042
MPN: 0104920
PA bass-midrange speaker, 300 W, 8 O Of very high power capability 25 cm (10")... more
All information about the product:
"MONACOR SP-10A/302PA PA bass-midrange speaker, 300 W, 8 O"
PA bass-midrange speaker, 300 W, 8 O
- Of very high power capability
- 25 cm (10") professional speaker of long excursion
- Diecast basket
- Cone with water-repellent coating
- Very neat workmanship with a front-facing basket

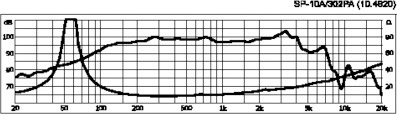

- Wide frequency response of low distortion
- High efficiency
- Drive system with drilled pole core and additional magnet for optimising the magnetic field and impedance linearisation
- For compact bass-reflex cabinets from 20 litres on already
- For all kinds of professional and semiprofessional PA applications
HOBBY HiFi 01/2017
“Bass driver providing a top-class sound for compact bass-reflex cabinets of about 40 litres, suitable for 2-way systems.”
| Impedance (Z): | 8 O |
| Frequency range: | f3-3,500 Hz |
| Resonant frequency (fs): | 55 Hz |
| Power rating (RMS): | 300 W |
| Peak music power output (MAX): | 600 W |
| Sensitivity: | 98 dB/W/m |
| Suspension compl. (Cms): | 0.24 mm/N |
| Moving mass (Mms): | 35 g |
| Mech. Q factor (Qms): | 7.44 |
| Electr. Q factor (Qes): | 0.31 |
| Total Q factor (Qts): | 0.3 |
| Equivalent volume (Vas): | 40 l |
| DC resistance (Re): | 6.4 O |
| Force factor (BxL): | 15.82 Tm |
| Voice coil induct. (Le): | 0.65 mH |
| Voice coil diameter: | 66 mm |
| Voice coil former: | Kapton |
| Linear excursion (XMAX): | 4 mm |
| Eff. cone area (Sd): | 346 cm2 |
| Magnet weight: | 2 kg |

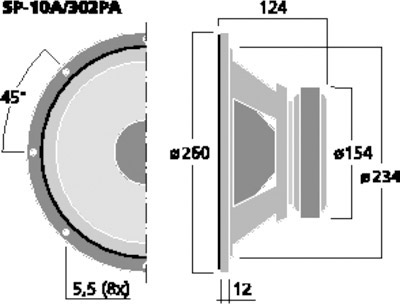

| Magnet diameter: | Ø 154 mm |
| Mounting cutout: | Ø 234 mm |
| Mounting depth: | 112 mm |
| Dimensions: | Ø 260 mm x 124 mm |
| Outside diameter: | Ø 260 mm |
| Width: | Ø 260 mm |
| Depth: | 122 mm |
| Colour: | black |
| Admiss. ambient temp.: | 0-40 °C |
| Weight: | 4.98 kg |
| Packing unit: | 1 |
| Type of speaker: | 10" |
| Packing dimensions (W x H x L): | 0.285 x 0.16 x 0.285 m |
| Gross weight: | 5.42 kg |
| Net weight: | 4.98 kg |
