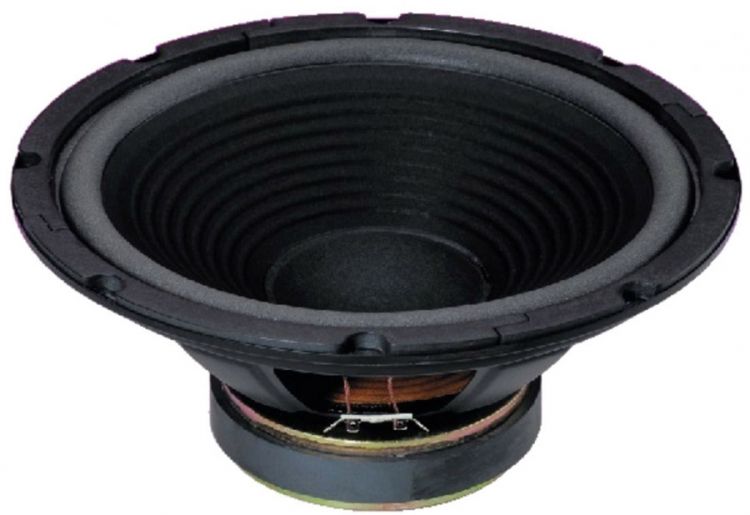

MONACOR SP-300P Bass speaker, 100 W, 8 O
€109.00 *
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
Item number: 250105300
EAN: 4007754024586
Bass speaker, 100 W, 8 O With drilled pole core Robust paper cone for bass reproduction... more
All information about the product:
"MONACOR SP-300P Bass speaker, 100 W, 8 O"
Bass speaker, 100 W, 8 O
- With drilled pole core
- Robust paper cone for bass reproduction of high power rating
| Impedance (Z): | 8 O |
| Frequency range: | f3-4,000 Hz |
| Resonant frequency (fs): | 30 Hz |
| Power rating (RMS): | 100 W |
| Peak music power output (MAX): | 200 W |
| Sensitivity: | 96 dB/W/m |
| Suspension compl. (Cms): | 0.77 mm/N |
| Moving mass (Mms): | 42 g |
| Mech. Q factor (Qms): | 1.74 |
| Electr. Q factor (Qes): | 0.37 |
| Total Q factor (Qts): | 0.31 |
| Equivalent volume (Vas): | 266 l |
| DC resistance (Re): | 6.5 O |
| Force factor (BxL): | 11.70 Tm |
| Voice coil induct. (Le): | 0.8 mH |
| Voice coil diameter: | Ø 50 mm |
| Voice coil former: | aluminium |
| Linear excursion (XMAX): | ± 2.5 mm |
| Eff. cone area (Sd): | 495 cm2 |
| Magnet weight: | 1.2 kg |
| Magnet diameter: | Ø 145 mm |

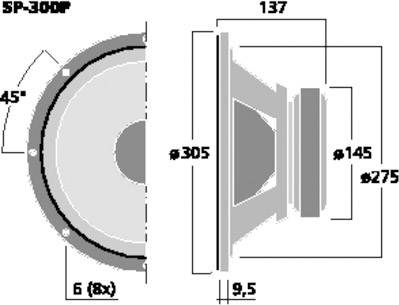

| Mounting cutout: | Ø 275 mm |
| Mounting depth: | 130 mm |
| Dimensions: | Ø 310 mm x 140 mm |
| Outside diameter: | Ø 310 mm |
| Width: | Ø 310 mm |
| Depth: | 140 mm |
| Colour: | black |
| Admiss. ambient temp.: | 0-40 °C |
| Weight: | 3.4 kg |
| Packing unit: | 1 |
| Type of speaker: | 12" |
| Packing dimensions (W x H x L): | 0.32 x 0.16 x 0.325 m |
| Gross weight: | 3.86 kg |
| Net weight: | 3.4 kg |
