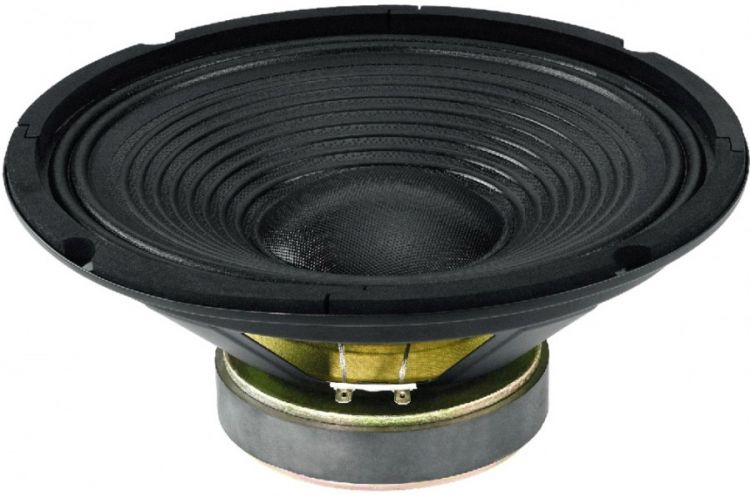

MONACOR SP-252PA Universal bass-midrange speaker, 75 W, 8 O
€61.00 *
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
Item number: 250105815
EAN: 4007754134896
Universal bass-midrange speaker, 75 W, 8 O For bass-midrange applications, also in power... more
All information about the product:
"MONACOR SP-252PA Universal bass-midrange speaker, 75 W, 8 O"
Universal bass-midrange speaker, 75 W, 8 O
For bass-midrange applications, also in power speaker systems.
| Impedance (Z): | 8 O |
| Frequency range: | f3-4,500 Hz |
| Resonant frequency (fs): | 55 Hz |
| Power rating (RMS): | 75 W |
| Peak music power output (MAX): | 150 W |
| Sensitivity: | 90 dB/W/m |
| Suspension compl. (Cms): | 0.18 mm/N |
| Moving mass (Mms): | 30 g |
| Mech. Q factor (Qms): | 2.13 |
| Electr. Q factor (Qes): | 1 |
| Total Q factor (Qts): | 0.7 |
| Equivalent volume (Vas): | 30 l |
| DC resistance (Re): | 7.7 O |
| Force factor (BxL): | 9.70 Tm |
| Voice coil induct. (Le): | 0.6 mH |
| Voice coil diameter: | Ø 39 mm |
| Voice coil former: | aluminium |
| Linear excursion (XMAX): | ± 2.5 mm |
| Eff. cone area (Sd): | 350 cm2 |
| Magnet weight: | 850 g |
| Magnet diameter: | Ø 119 mm |
| Mounting cutout: | Ø 232 mm |
| Mounting depth: | 101 mm |
| Dimensions: | Ø 255 x 110 mm |
| Outside diameter: | Ø 255 mm |
| Width: | Ø 255 mm |
| Depth: | 110 mm |
| Colour: | black |
| Admiss. ambient temp.: | 0-40 °C |
| Weight: | 2.21 kg |
| Packing unit: | 1 |
| Type of speaker: | 10" |
| Packing dimensions (W x H x L): | 0.26 x 0.12 x 0.26 m |
| Gross weight: | 2.405 kg |
| Net weight: | 2.21 kg |
