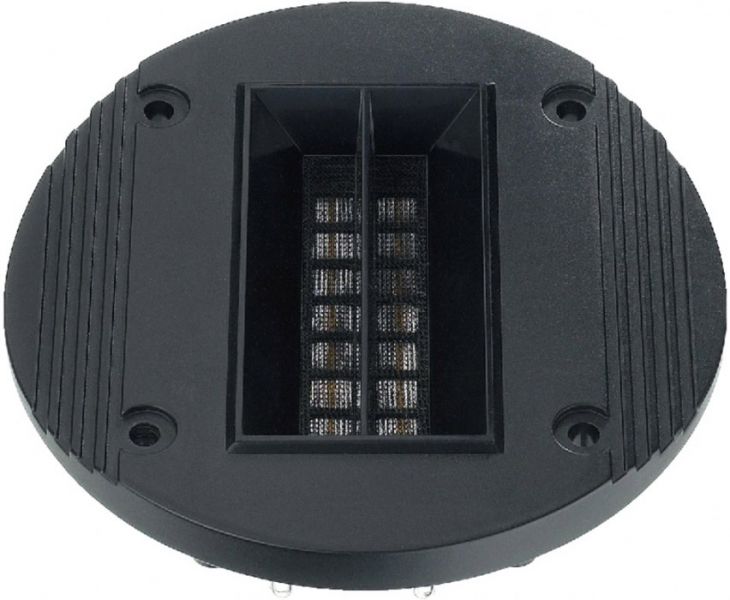

MONACOR RBT-95 Ribbon tweeter, 30 W, 8 O
€54.00 *
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
Item number: 250105605
EAN: 4007754196542
Ribbon tweeter, 30 W, 8 O Magnetostatic speakers of a high efficiency Perfectly fine... more
All information about the product:
"MONACOR RBT-95 Ribbon tweeter, 30 W, 8 O"
Ribbon tweeter, 30 W, 8 O
- Magnetostatic speakers of a high efficiency
- Perfectly fine dynamic reproduction of the high frequencies and the brilliance frequency range
- Power capability of the system can considerably be increased by voltage dividers and maybe higher crossover frequencies (level attenuations which take tweeters to the level of normal hi-fi systems)
- Very light sound of low distortion which particularly improves the stereophony in applications from 5 kHz on
- By adding a super tweeter above 8-10 kHz, e.g. even high-quality full range systems can be further improved
| Impedance (Z): | 8 O |
| Frequency range: | fx-22,000 Hz |
| Resonant frequency (fs): | 4,500 Hz |
| Rec. crossov. frequ. (fmax.) (12 dB/oct.): | 5,000 Hz |
| Power rating (RMS): | 30 W |
| Peak music power output (MAX): | 60 W |
| Sensitivity: | 98 dB/W/m |
| Magnet diameter: | magnetostatic speaker |

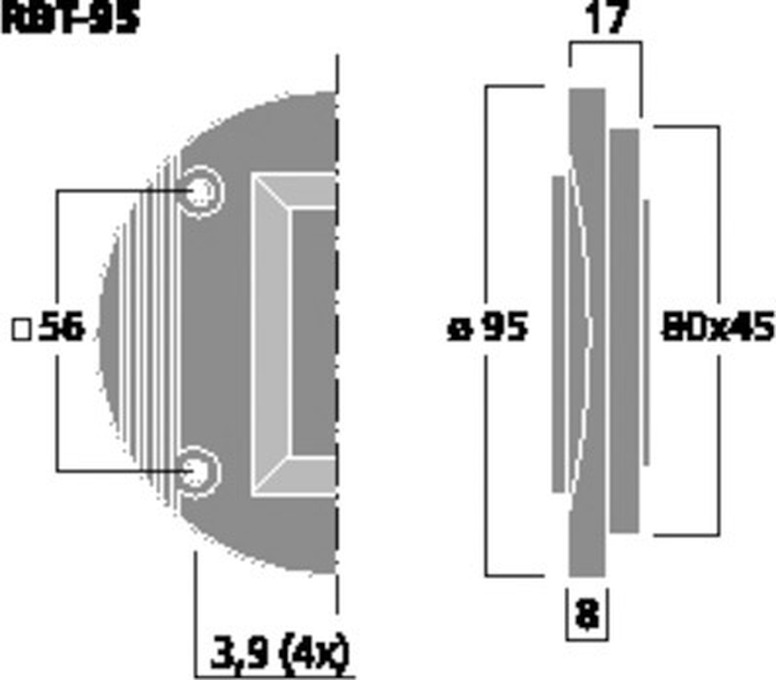

| Mounting cutout: | 80 x 45 mm |
| Mounting depth: | 17 mm |
| Hole spacing X-axis: | 56 mm |
| Hole spacing Y-axis: | 56 mm |
| Dimensions: | Ø 95 x 17 mm |
| Outside diameter: | Ø 95 mm |
| Width: | Ø 95 mm |
| Depth: | 17 mm |
| Colour: | black |
| Admiss. ambient temp.: | 0-40 °C |
| Weight: | 0.11 kg |
| Packing unit: | 1 |
| Packing dimensions (W x H x L): | 0.105 x 0.045 x 0.105 m |
| Gross weight: | 0.141 kg |
| Net weight: | 0.11 kg |
