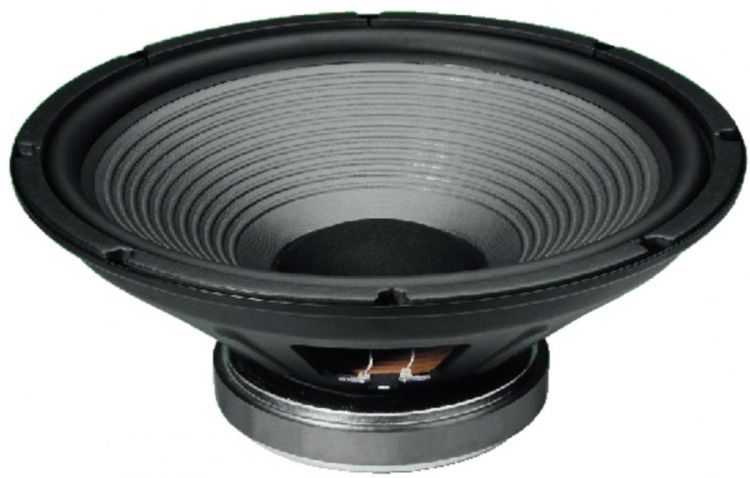

MONACOR SPH-390TC Hi-fi subwoofer, 2 x 150 W, 2 x 8 O
€200.00 *
Express delivery possible
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
Item number: 250105510
EAN: 4007754025460
MPN: 0101520
Hi-fi subwoofer, 2 x 150 W, 2 x 8 O High-performance speaker with dual voice coil Robust... more
All information about the product:
"MONACOR SPH-390TC Hi-fi subwoofer, 2 x 150 W, 2 x 8 O"
Hi-fi subwoofer, 2 x 150 W, 2 x 8 O
- High-performance speaker with dual voice coil
- Robust sheet steel basket
- Carbonised PP cone
- Capable of a very great linear excursion
- Parameters for extra powerful and deep bass reproductions in bass-reflex cabinets
| Impedance (Z): | 2 x 8 O |
| Frequency range: | f3-1,500 Hz |
| Resonant frequency (fs): | 23 Hz |
| Power rating (RMS): | 2 x 150 W |
| Peak music power output (MAX): | 2 x 300 W |
| Sensitivity: | 96 dB/W/m |
| Suspension compl. (Cms): | 0.3 mm/N |
| Moving mass (Mms): | 160 g |
| Mech. Q factor (Qms): | 6.36 |
| Electr. Q factor (Qes): | 0.29 |
| Total Q factor (Qts): | 0.26 |
| Equivalent volume (Vas): | 284 l |
| DC resistance (Re): | 2 x 6 O/3 O |
| Force factor (BxL): | 16.72 Tm |
| Voice coil induct. (Le): | 2 x 1.3 mH/1.3 mH |
| Voice coil diameter: | Ø 65.5 mm |
| Voice coil former: | Kapton |
| Linear excursion (XMAX): | ± 7 mm |
| Eff. cone area (Sd): | 850 cm2 |
| Magnet weight: | 1.8 kg |
| Magnet diameter: | Ø 182 mm |

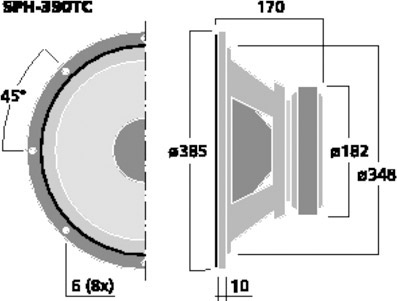

| Mounting cutout: | Ø 348 mm |
| Mounting depth: | 160 mm |
| Dimensions: | Ø 385 mm x 170 mm |
| Outside diameter: | Ø 385 mm |
| Width: | Ø 385 mm |
| Depth: | 170 mm |
| Colour: | black |
| Admiss. ambient temp.: | 0-40 °C |
| Weight: | 6.78 kg |
| Packing unit: | 1 |
| Type of speaker: | 15" |
| Packing dimensions (W x H x L): | 0.405 x 0.19 x 0.405 m |
| Gross weight: | 7.56 kg |
| Net weight: | 6.78 kg |
