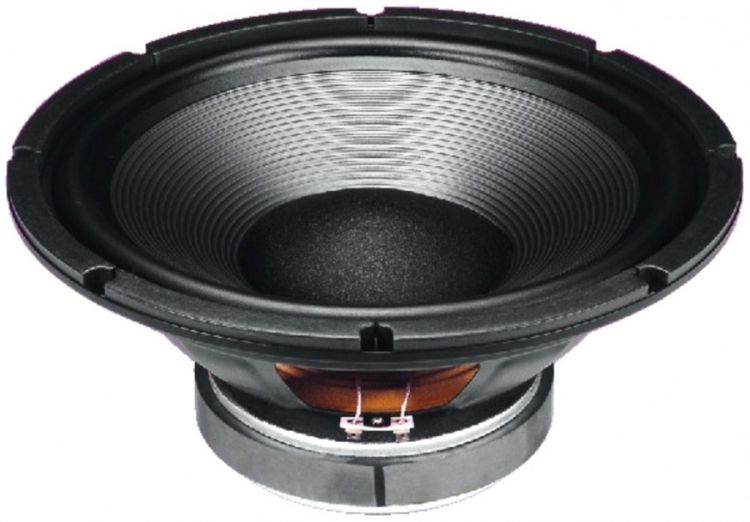

MONACOR SPH-300TC Hi-fi subwoofer, 2 x 120 W, 2 x 8 O
€109.00 *
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
Item number: 250105505
EAN: 4007754025439
Hi-fi subwoofer, 2 x 120 W, 2 x 8 O Stabilised polypropylene cone Dual voice coil... more
All information about the product:
"MONACOR SPH-300TC Hi-fi subwoofer, 2 x 120 W, 2 x 8 O"
Hi-fi subwoofer, 2 x 120 W, 2 x 8 O
- Stabilised polypropylene cone
- Dual voice coil
- Perfect parameters for a deep bass reproduction in compact bass-reflex cabinets and band-pass cabinets
- For any hi-fi, home cinema and car hi-fi application of high requirements
| Impedance (Z): | 2 x 8 O |

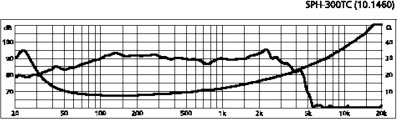

| Frequency range: | f3-2,000 Hz |
| Resonant frequency (fs): | 23 Hz |
| Power rating (RMS): | 2 x 120 W |
| Peak music power output (MAX): | 2 x 250 W |
| Sensitivity: | 91 dB/W/m |
| Suspension compl. (Cms): | 0.85 mm/N |
| Moving mass (Mms): | 68 g |
| Mech. Q factor (Qms): | 3.03 |
| Electr. Q factor (Qes): | 0.26 |
| Total Q factor (Qts): | 0.24 |
| Equivalent volume (Vas): | 290 l |
| DC resistance (Re): | 2 x 6.3 O/3.2 O |
| Force factor (BxL): | 10.30 Tm |
| Voice coil induct. (Le): | 2 x 1.0 mH/1.0 mH |
| Voice coil diameter: | Ø 50 mm |
| Voice coil former: | aluminium |
| Linear excursion (XMAX): | ± 4 mm |
| Eff. cone area (Sd): | 495 cm2 |
| Magnet weight: | 1.4 kg |
| Magnet diameter: | Ø 156 mm |

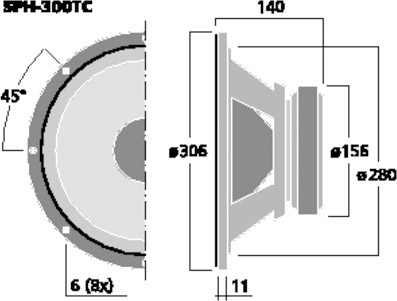

| Mounting cutout: | Ø 280 mm |
| Mounting depth: | 129 mm |
| Dimensions: | Ø 306 mm x 140 mm |
| Outside diameter: | Ø 306 mm |
| Width: | Ø 306 mm |
| Depth: | 140 mm |
| Colour: | black |
| Admiss. ambient temp.: | 0-40 °C |
| Weight: | 4.245 kg |
| Packing unit: | 1 |
| Type of speaker: | 12" |
| Packing dimensions (W x H x L): | 0.32 x 0.17 x 0.32 m |
| Gross weight: | 4.72 kg |
| Net weight: | 4.245 kg |
