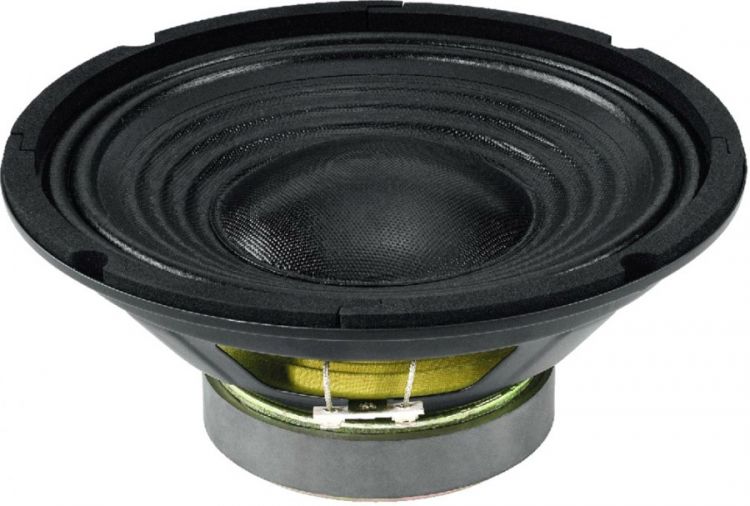

MONACOR SP-202PA Universal bass-midrange speaker, 50 W, 8 O
€32.00 *
incl. tax,
plus shipping costs
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
Item number: 250105810
EAN: 4007754134889
MPN: 0103290
Universal bass-midrange speaker, 50 W, 8 O For bass-midrange applications, also in power... more
All information about the product:
"MONACOR SP-202PA Universal bass-midrange speaker, 50 W, 8 O"
Universal bass-midrange speaker, 50 W, 8 O
For bass-midrange applications, also in power speaker systems.
| Impedance (Z): | 8 O |
| Frequency range: | f3-4,500 Hz |
| Resonant frequency (fs): | 68 Hz |
| Power rating (RMS): | 50 W |
| Peak music power output (MAX): | 100 W |
| Sensitivity: | 91 dB/W/m |
| Suspension compl. (Cms): | 0.2 mm/N |
| Moving mass (Mms): | 18 g |
| Mech. Q factor (Qms): | 2.33 |
| Electr. Q factor (Qes): | 2.25 |
| Total Q factor (Qts): | 1.1 |
| Equivalent volume (Vas): | 12 l |
| DC resistance (Re): | 7.4 O |
| Force factor (BxL): | 5.60 Tm |
| Voice coil induct. (Le): | 0.4 mH |
| Voice coil diameter: | Ø 25 mm |
| Voice coil former: | aluminium |
| Linear excursion (XMAX): | ± 3 mm |
| Eff. cone area (Sd): | 216 cm2 |
| Magnet weight: | 570 g |
| Magnet diameter: | Ø 100 mm |

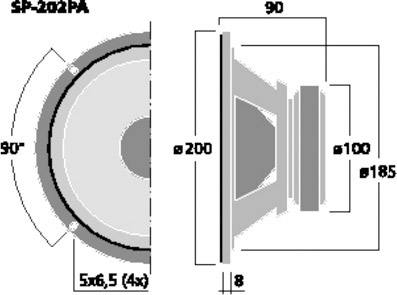

| Mounting cutout: | Ø 185 mm |
| Mounting depth: | 82 mm |
| Dimensions: | Ø 200 mm x 90 mm |
| Outside diameter: | Ø 200 mm |
| Width: | Ø 200 mm |
| Depth: | 90 mm |
| Colour: | black |
| Admiss. ambient temp.: | 0-40 °C |
| Weight: | 1.115 kg |
| Packing unit: | 1 |
| Type of speaker: | 8" |
| Packing dimensions (W x H x L): | 0.21 x 0.095 x 0.21 m |
| Gross weight: | 1.245 kg |
| Net weight: | 1.115 kg |
