MONACOR SPX-31M Hi-fi full range speaker, 20 W, 8 O
€23.00 *
incl. tax,
plus shipping costs
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
Item number: 250122540
EAN: 4007754221329
Hi-fi full range speaker, 20 W, 8 O Excellent sound quality High-quality paper cone... more
All information about the product:
"MONACOR SPX-31M Hi-fi full range speaker, 20 W, 8 O"
Hi-fi full range speaker, 20 W, 8 O
- Excellent sound quality
- High-quality paper cone
- Aluminium phase plug for optimising radiation pattern
- Rear-ventilated centering spider
- Shielded magnet system
- Application in small speakers or satellite systems
- Ideally suited for application in FAST speakers (full range and subwoofer technology)
Klang+Ton 02/2016
RAPTOR-6 and SPX-31M in the K+T test with MONACOR's sound bar:
“This design provides a higher dynamic efficiency than most ready-made products available on the market.”
“This design provides a higher dynamic efficiency than most ready-made products available on the market.”
HOBBY HiFi 06/2015
“Ideally suited as a desktop speaker system.
Very neat workmanship.”
Very neat workmanship.”
| Impedance (Z): | 8 O |

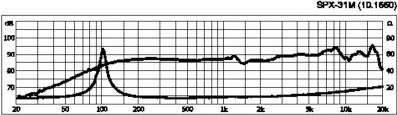

| Frequency range: | f3-20,000 Hz |
| Resonant frequency (fs): | 110 Hz |
| Power rating (RMS): | 20 W |
| Peak music power output (MAX): | 40 W |
| Sensitivity: | 86 dB/W/m |
| Suspension compl. (Cms): | 0.92 mm/N |
| Moving mass (Mms): | 1.9 g |
| Mech. Q factor (Qms): | 3.707 |
| Electr. Q factor (Qes): | 0.69 |
| Total Q factor (Qts): | 0.58 |
| Equivalent volume (Vas): | 1.3 l |
| DC resistance (Re): | 6.4 O |
| Force factor (BxL): | 3.64 Tm |
| Voice coil induct. (Le): | 0.18 mH |
| Voice coil diameter: | Ø 20 mm |
| Voice coil former: | Kapton |
| Linear excursion (XMAX): | ± 1.1 mm |
| Eff. cone area (Sd): | 32 cm2 |
| Magnet weight: | 119 g |
| Magnet diameter: | Ø 68 mm |
| Mounting cutout: | Ø 71 mm |
| Mounting depth: | 53 mm |
| Dimensions: | Ø 93 mm x 55 mm |
| Outside diameter: | Ø 93 mm |
| Width: | Ø 93 mm |
| Depth: | 55 mm |
| Colour: | black/silver |
| Admiss. ambient temp.: | 0-40 °C |
| Weight: | 0.49 kg |
| Packing unit: | 1 |
| Type of speaker: | 3" |
| Packing dimensions (W x H x L): | 0.09 x 0.075 x 0.09 m |
| Gross weight: | 0.52 kg |
| Net weight: | 0.49 kg |
