MONACOR SPX-32M Hi-fi full range speaker, 20 W, 8 O
€22.00 *
incl. tax,
plus shipping costs
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
Item number: 250122520
EAN: 4007754217018
Hi-fi full range speaker, 20 W, 8 O Excellent sound quality High-quality paper cone... more
All information about the product:
"MONACOR SPX-32M Hi-fi full range speaker, 20 W, 8 O"
Hi-fi full range speaker, 20 W, 8 O
- Excellent sound quality
- High-quality paper cone
- Wooden phase plug for optimising radiation pattern
- Rear-ventilated centering spider
- Shielded magnet system
- Application in small speakers or satellite systems
- Ideally suited for application in FAST speakers (full range and subwoofer technology)
HOBBY HiFi 03/2012
“Audiophile characteristics due to paper cone and solid wooden phase plug.”
| Impedance (Z): | 8 O |
| Frequency range: | f3-22,000 Hz |
| Resonant frequency (fs): | 110 Hz |
| Power rating (RMS): | 20 W |
| Peak music power output (MAX): | 40 W |
| Sensitivity: | 88 dB/W/m |
| Suspension compl. (Cms): | 1.11 mm/N |
| Moving mass (Mms): | 1.7 g |
| Mech. Q factor (Qms): | 7.66 |
| Electr. Q factor (Qes): | 0.60 |
| Total Q factor (Qts): | 0.56 |
| Equivalent volume (Vas): | 1.6 l |
| DC resistance (Re): | 6.6 O |
| Force factor (BxL): | 3.69 Tm |
| Voice coil induct. (Le): | 0.18 mH |
| Voice coil diameter: | Ø 20 mm |
| Voice coil former: | Kapton |
| Linear excursion (XMAX): | ± 1.1 mm |
| Eff. cone area (Sd): | 32 cm2 |
| Magnet weight: | 99 g |
| Magnet diameter: | Ø 68 mm |

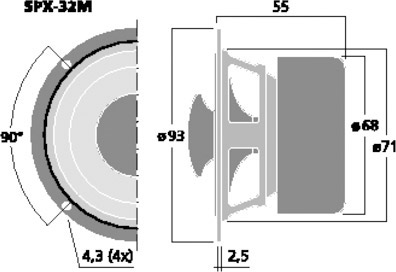

| Mounting cutout: | Ø 71 mm |
| Mounting depth: | 52.5 mm |
| Dimensions: | Ø 93 mm x 55 mm |
| Outside diameter: | Ø 93 mm |
| Width: | Ø 93 mm |
| Depth: | 55 mm |
| Colour: | black/silver |
| Admiss. ambient temp.: | 0-40 °C |
| Weight: | 0.498 kg |
| Packing unit: | 1 |
| Type of speaker: | 3" |
| Packing dimensions (W x H x L): | 0.095 x 0.075 x 0.095 m |
| Gross weight: | 0.524 kg |
| Net weight: | 0.498 kg |
